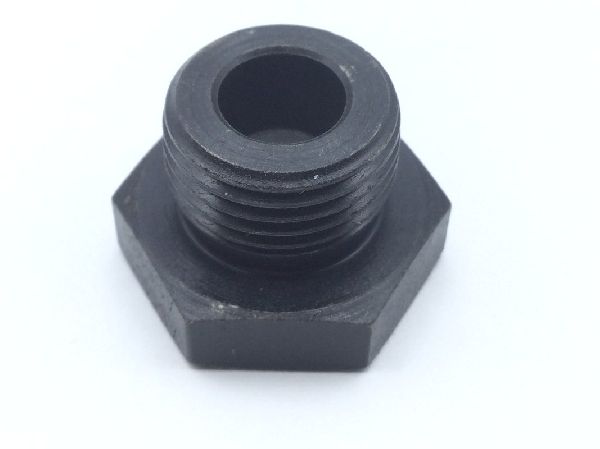

AS5169-08 Machine Thread Plug

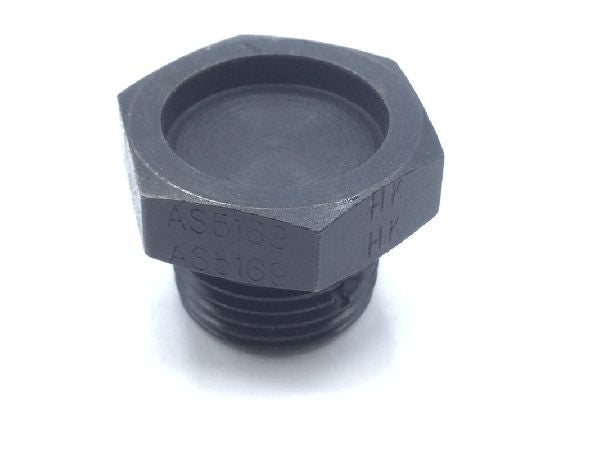

AS5169-08 Machine Thread Plug (2)

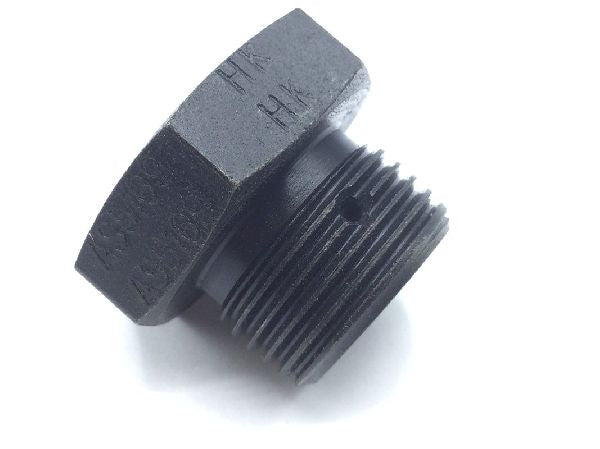

AS5169-08 Machine Thread Plug (3)

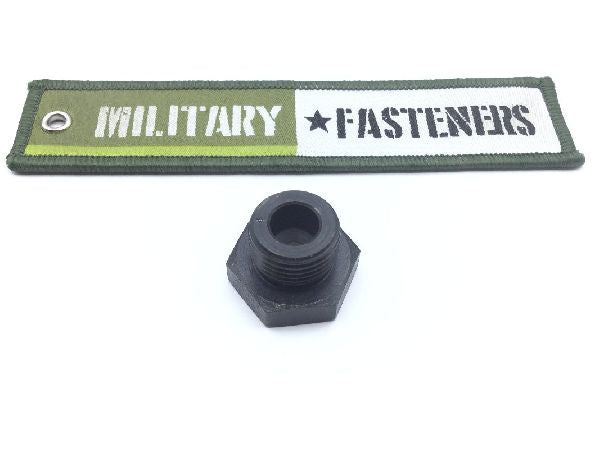

AS5169-08 Machine Thread Plug (4)

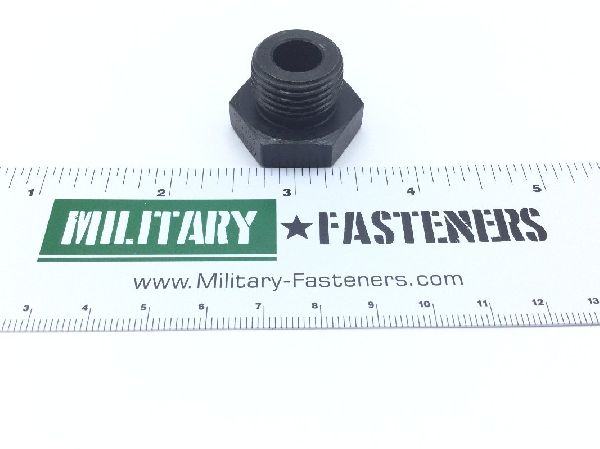

AS5169-08 Machine Thread Plug (5)

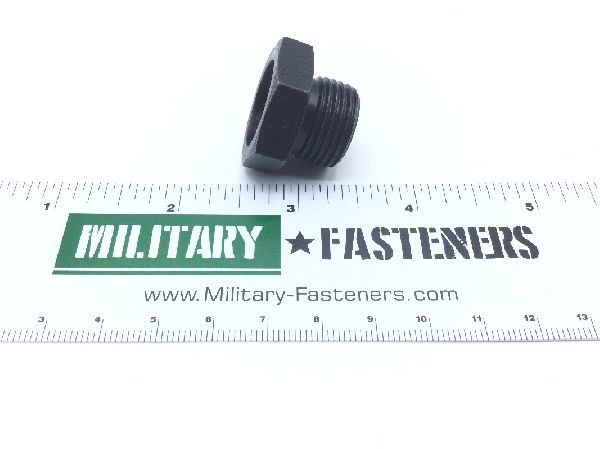

AS5169-08 Machine Thread Plug (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AS5169-08 Machine Thread Plug

ECCN: EAR99

Price per Unit $41.51

Units per Pack 1

Price per Pack $41.51

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $41.51

Add item to quote

Material

Steel

Overall Length

0.781 inches

Thread Class

3a external

Thread Size

0.750 inches external

Bleeder Hole Center To Threaded End Distance: Between 0.219 inches and 0.281 inches
Bleeder Hole Diameter: 0.062 inches
Body Core Diameter: 0.390 inches
Connection Style: Plain
Core Depth: Between 0.343 inches and 0.359 inches
Head Height: 0.312 inches
Seat Angle: 45.0 degrees
Style Designator: Machine w/bleeder holes plug
Thread Direction: Right-hand external
Thread Length: 0.375 inches external
Thread Series Designator: Unf (fine thread) external
