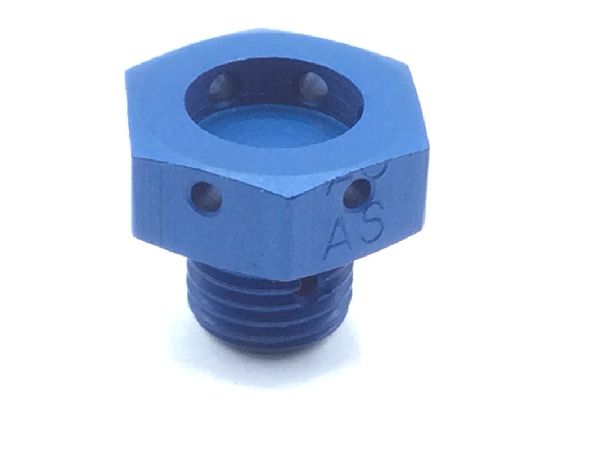

AS5169D03L Machine Thread Plug

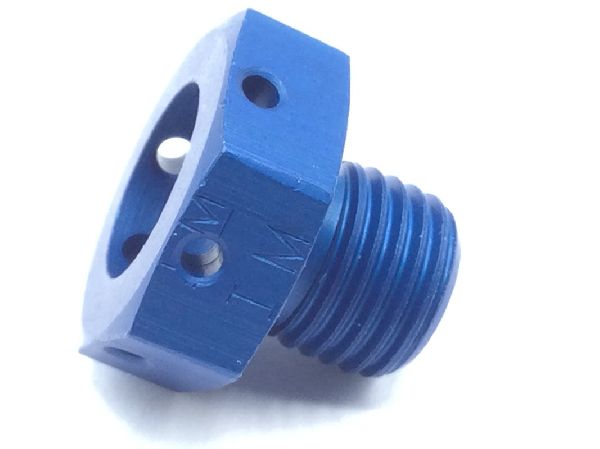

AS5169D03L Machine Thread Plug (2)

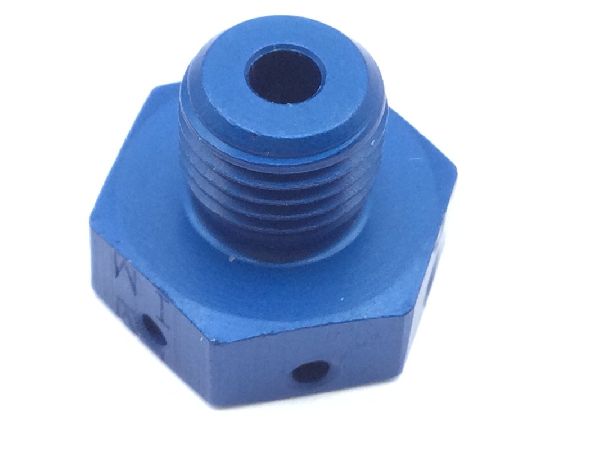

AS5169D03L Machine Thread Plug (3)

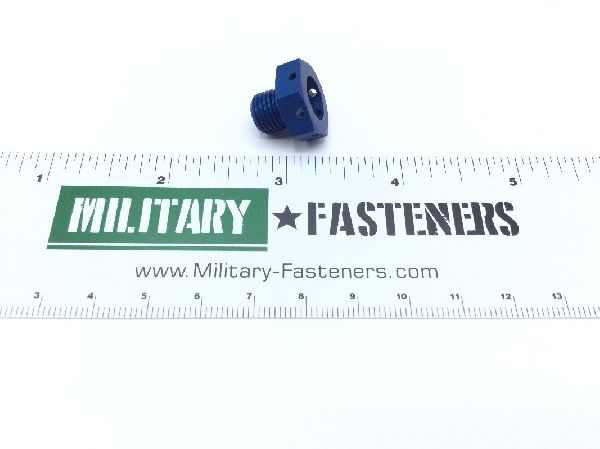

AS5169D03L Machine Thread Plug (4)

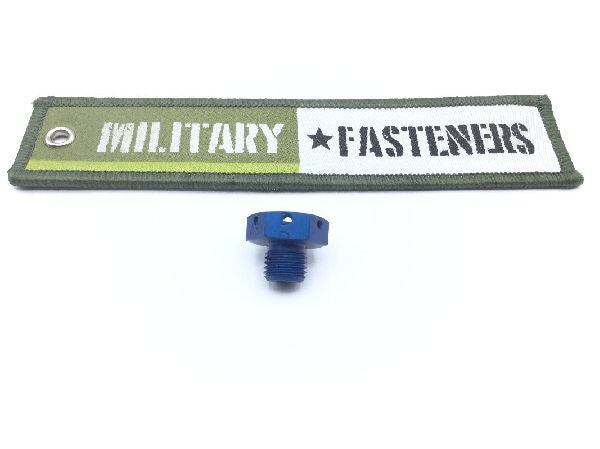

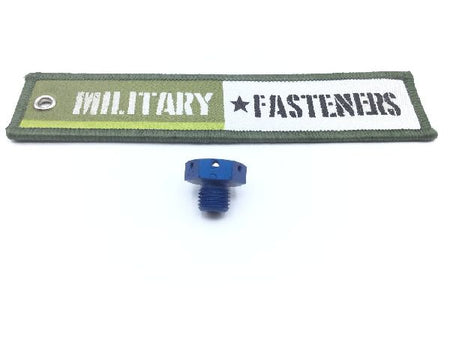

AS5169D03L Machine Thread Plug (5)

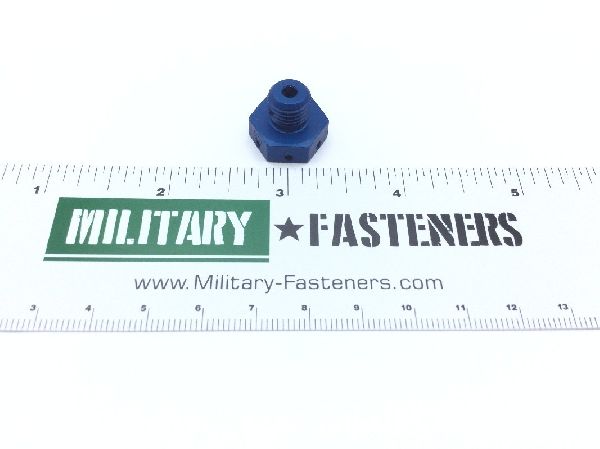

AS5169D03L Machine Thread Plug (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AS5169D03L Machine Thread Plug

ECCN: EAR99

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Aluminum alloy

Overall Length

0.562 inches

Thread Class

3a external

Thread Size

0.375 inches external

Bleeder Hole Center To Threaded End Distance: Between 0.125 inches and 0.187 inches
Bleeder Hole Diameter: 0.062 inches
Body Core Diameter: 0.125 inches
Connection Style: Plain
Core Depth: Between 0.250 inches and 0.266 inches
Head Height: 0.234 inches
Seat Angle: 45.0 degrees
Style Designator: Machine w/bleeder holes plug
Thread Direction: Right-hand external
Thread Length: 0.266 inches external
Thread Series Designator: Unf (fine thread) external
