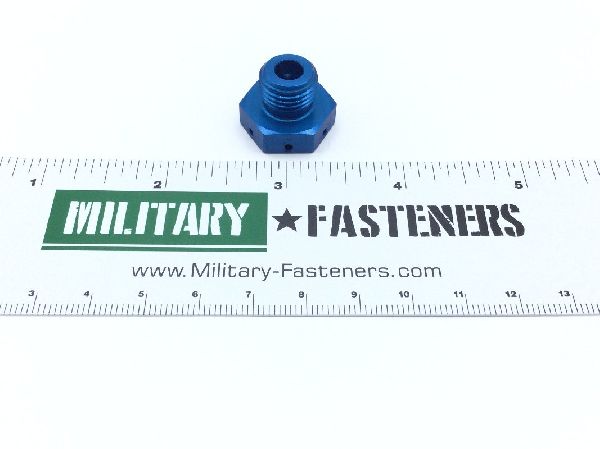

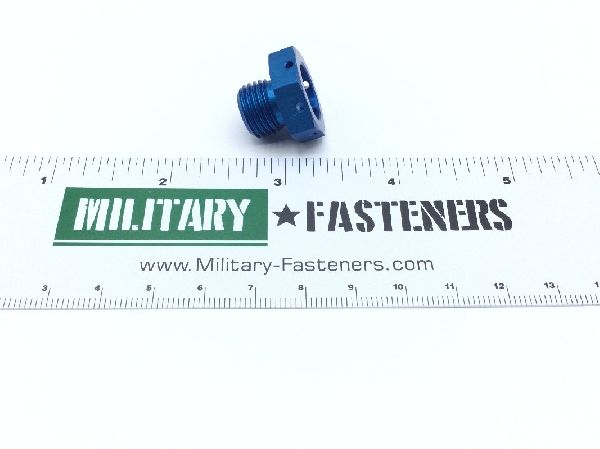

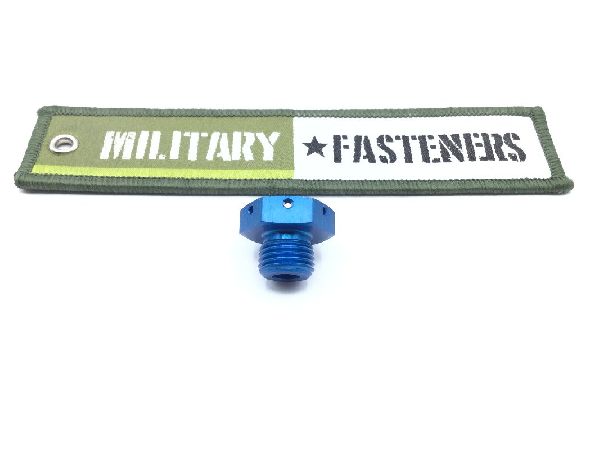

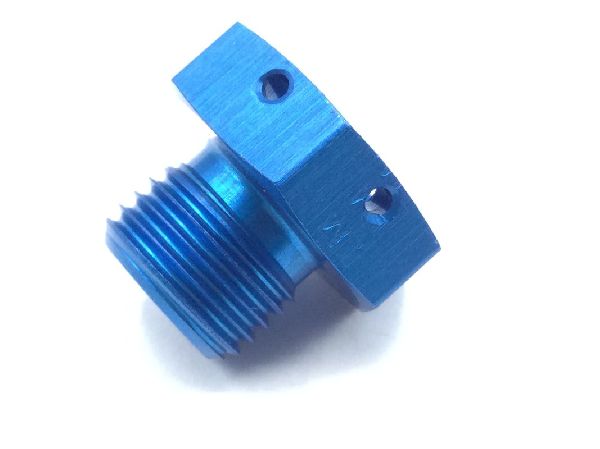

AS5169D05L Machine Thread Plug

NSN: 5365-00-124-3042
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 7075 or aluminum alloy 2014

Overall Length

0.656 inches

Surface Treatment

Type 2 military specification single treatment response mil-a-8625

Thread Class

3a external

Thread Size

0.500 inches external

Bleeder Hole Center To Threaded End Distance: 0.188 inches
Bleeder Hole Diameter: 0.062 inches
Body Core Diameter: 0.234 inches
Connection Style: Plain
Core Depth: 0.281 inches
Head Height: 0.250 inches
Material Specification: T851 federal specification 1st material response or qq-a-266 federal specification 2nd material response t6 federal specification 1st material response or qq-a-268 qq-a-268
Style Designator: Machine w/bleeder holes plug
Thread Direction: Right-hand external
Thread Length: 0.297 inches external
Thread Series Designator: Unf (fine thread) external
