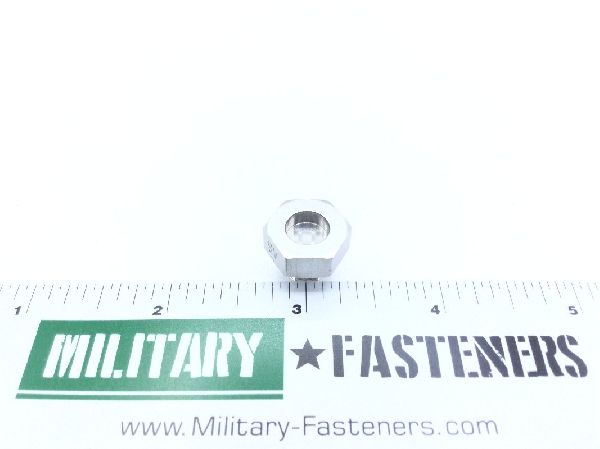

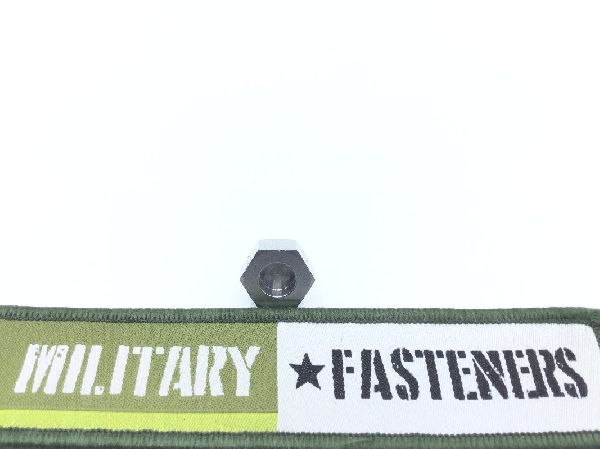

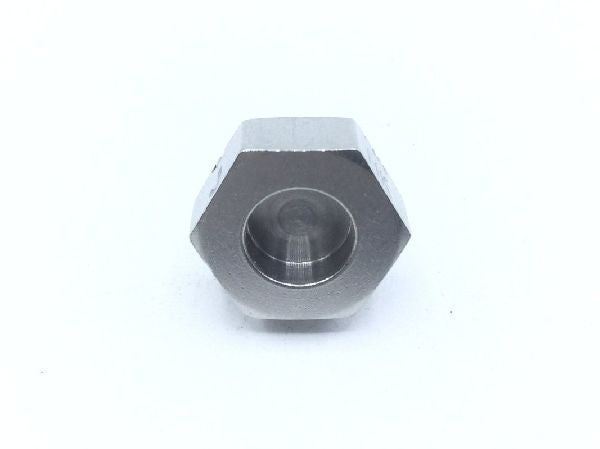

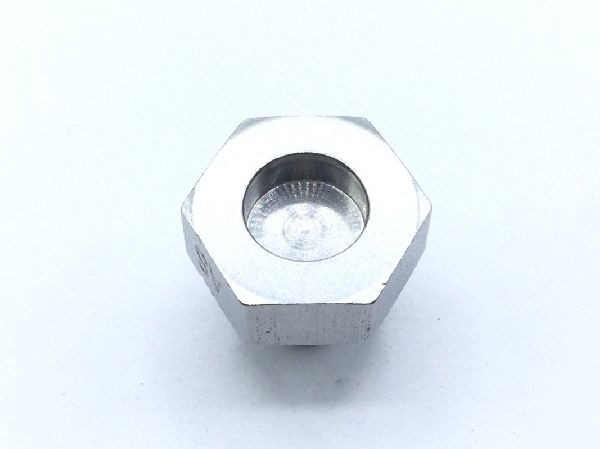

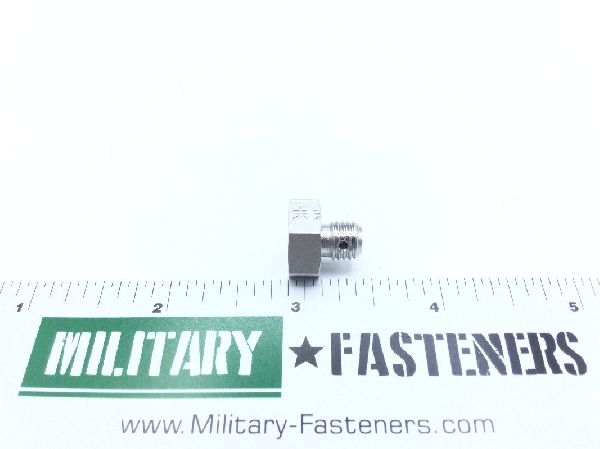

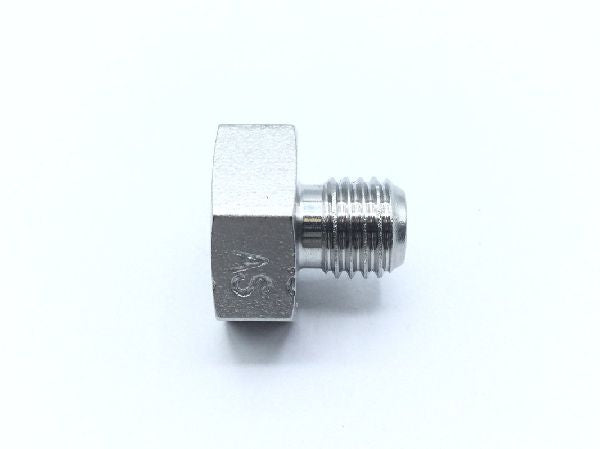

AS5169J02 Boss Nipple

ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $49.82

Units per Pack 1

Price per Pack $49.82

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $49.82

Add item to quote

Material

Steel comp 304

Overall Length

0.547 inches

Surface Treatment

Qq-a-35 federal specification single treatment response

Thread Class

3a external

Thread Size

0.312 inches external

Bleeder Hole Center To Threaded End Distance: Between 0.125 inches and 0.187 inches
Bleeder Hole Diameter: 0.062 inches
Body Core Diameter: Between 0.057 inches and 0.062 inches
Connection Style: Plain
Core Depth: Between 0.250 inches and 0.266 inches
Criticality Code Justification: Feat
Head Height: 0.235 inches
Material Specification: Qq-s-763 federal specification single material response or 66 federal standard single material response
Special Features: fit and func (coarse thread)tion critical to aql131 system form
Style Designator: Machine w/bleeder holes plug
Thread Direction: Right-hand external
Thread Length: 0.234 inches external and 0.249 inches external
Thread Series Designator: Unf (fine thread) external
