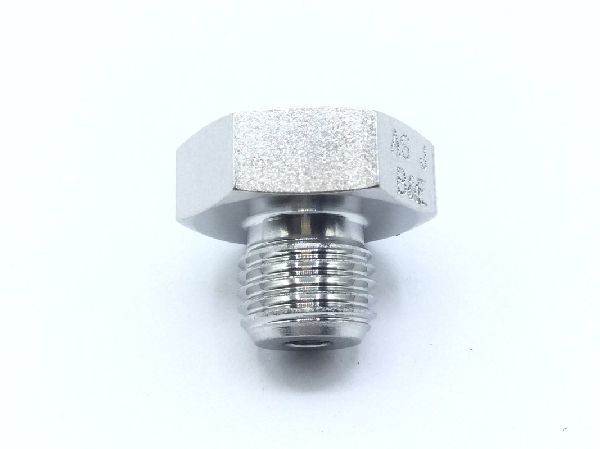

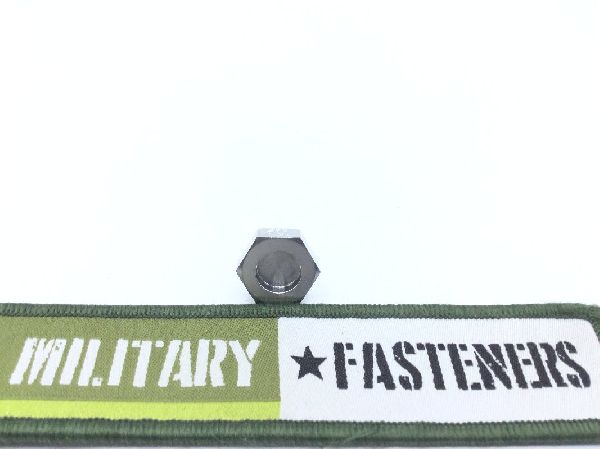

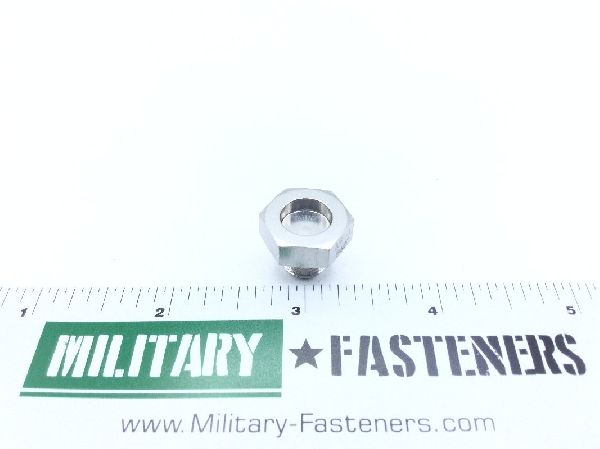

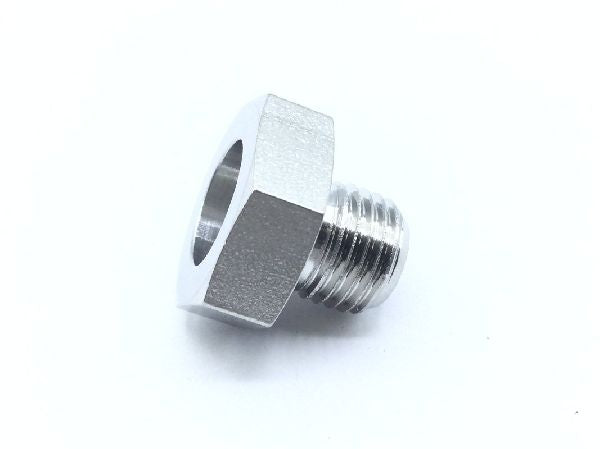

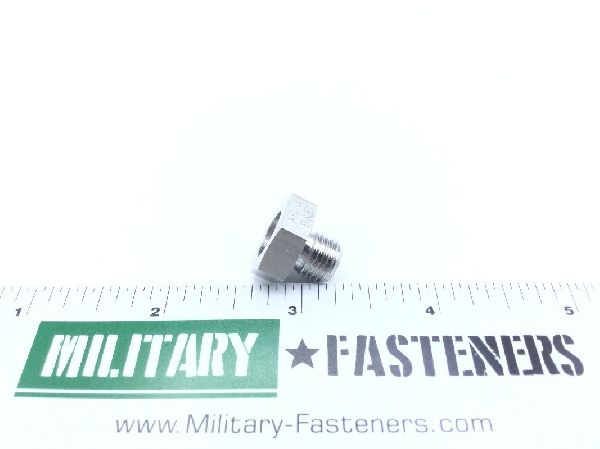

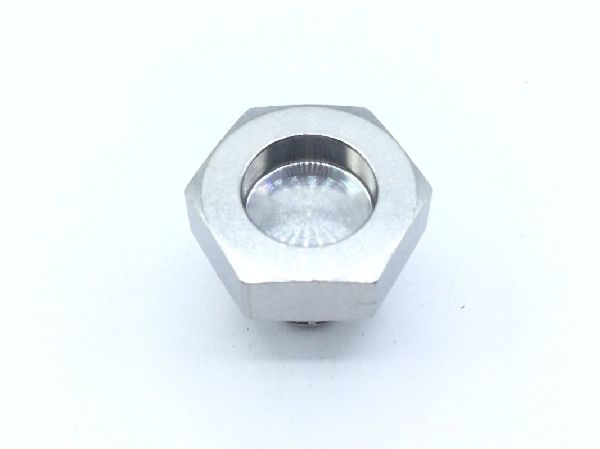

AS5169J03 Machine Thread Plug

ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 304

Overall Length

0.562 inches

Surface Treatment

Type 1 federal specification single treatment response qq-p-35

Thread Class

3a external

Thread Size

0.375 inches external

Bleeder Hole Center To Threaded End Distance: Between 0.125 inches and 0.187 inches
Bleeder Hole Diameter: 0.062 inches
Body Core Diameter: 0.125 inches
Connection Style: Plain
Core Depth: Between 0.250 inches and 0.266 inches
Head Height: 0.234 inches
Material Specification: Qq-s-763 federal specification single material response
Style Designator: Machine w/bleeder holes plug
Thread Direction: Right-hand external
Thread Length: 0.250 inches external and 0.265 inches external
Thread Series Designator: Unf (fine thread) external
