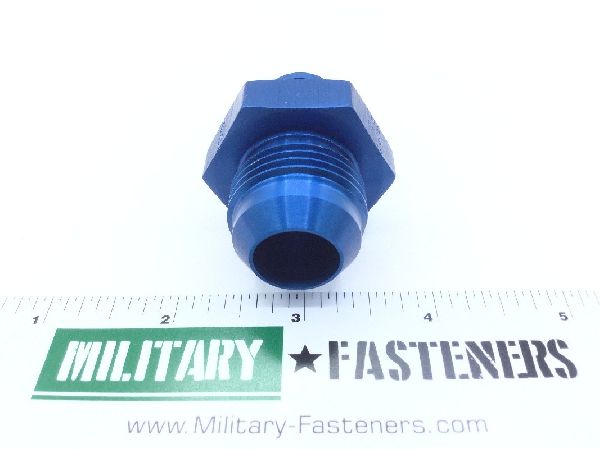

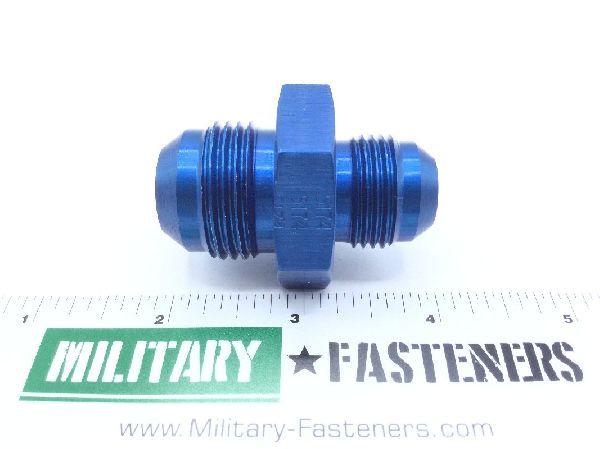

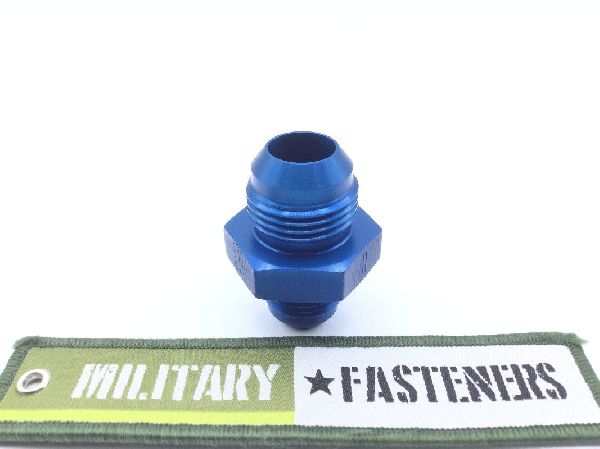

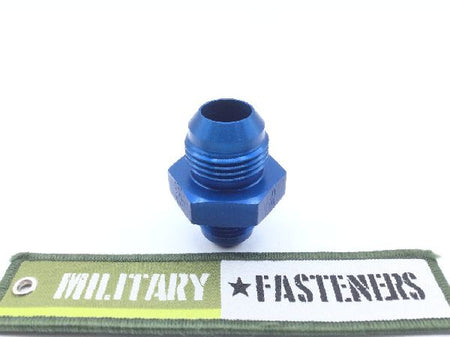

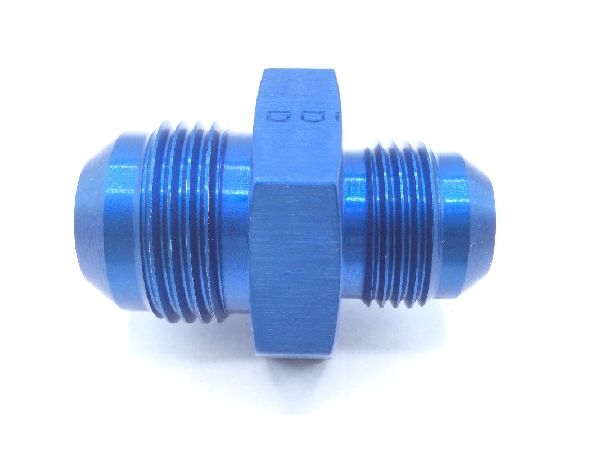

AS5174D1210 Tube Reducer

ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $47.05

Units per Pack 1

Price per Pack $47.05

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $47.05

Add item to quote

Material

Aluminum alloy 2014 or aluminum alloy 2024

Surface Treatment

Cl 2 military specification single treatment response type 2 mil-a-8625

Thread Class

3a all ends

Thread Size

1.062 inches 1st end

Connection Style: Flared (tube) all ends
Connection Type: Threaded external tube all ends
Criticality Code Justification: Feat
Material Specification: T6 federal specification 2nd material response t6 federal specification 1st material response or qq-a-225/6 qq-a-225/4
Maximum Operating Temp: 225.0 degrees fahrenheit single response
Media For Which Designed: Hydraulic fluid single response
Nominallength: 2.000 inches
Outside Diameter Tube Accommodated: 0.625 inches 2nd end
Reducer Type: Concentric
Seat Angle: 37.0 degrees all ends
Special Features: Supports grumman a10a aircraft;weapon system essential
Specification Data: 96906-ms24399 government standard and 81349-mil-f-5509 government specification
Thread Qty Per Inch (tpi): 12 1st end
Thread Series Designator: Unjf (fine thread with external controlled root radius) 2nd end
