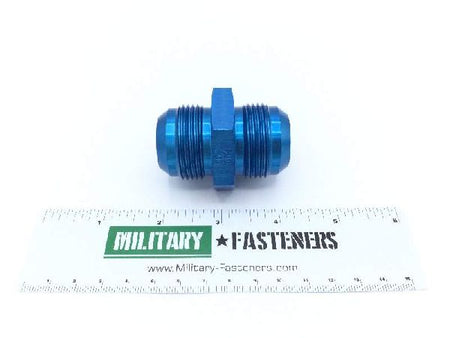

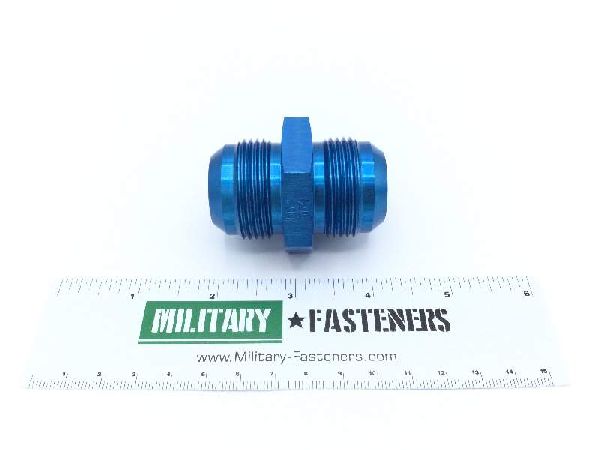

AS5174D1616 Tube Nipple

ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $47.05

Units per Pack 1

Price per Pack $47.05

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $47.05

Add item to quote

Surface Treatment

Cl 2 military specification single treatment response type 2 mil-a-8625

Thread Class

3a all ends

Thread Size

1.312 inches all ends

Connection Type: Threaded external tube all ends
Material Specification: T6 federal specification single material response qq-a-225/4
Maximum Operating Temp: 225.0 degrees fahrenheit single response
Nominallength: 2.188 inches
Outside Diameter Tube Accommodated: 1.000 inches all ends
Seat Angle: 37.000 degrees all ends
Special Features: A-10 aircraft model grumman aircraft corp
Specification Data: Sae-as5174 professional/industrial association specification
Thread Qty Per Inch (tpi): 12 all ends
Thread Series Designator: Unj all ends
