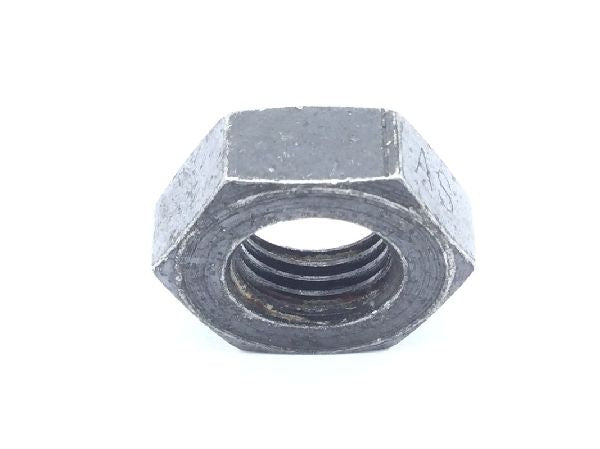

AS5178-03 Plain Hexagon Nut

AS5178-03 Plain Hexagon Nut (2)

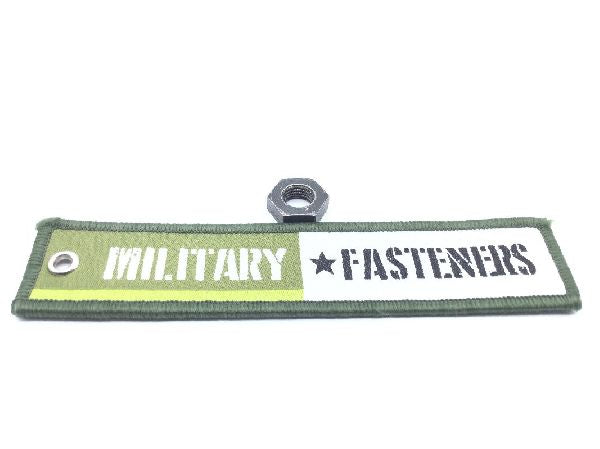

AS5178-03 Plain Hexagon Nut (3)

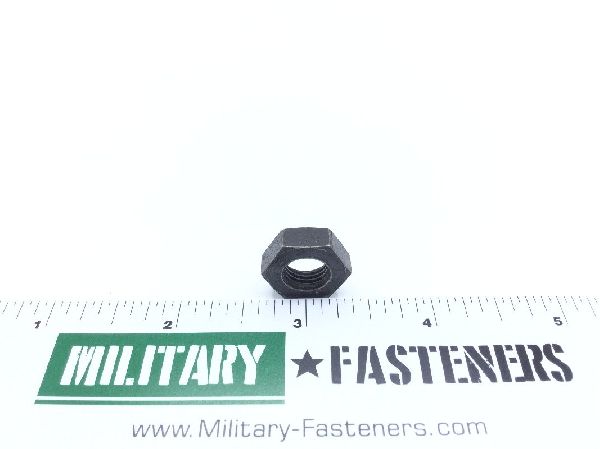

AS5178-03 Plain Hexagon Nut (4)

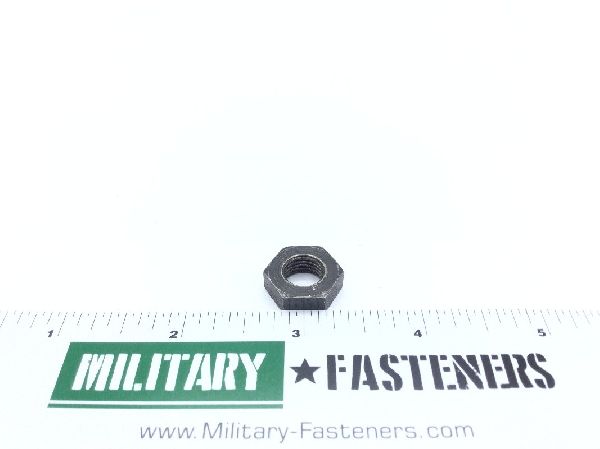

AS5178-03 Plain Hexagon Nut (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AS5178-03 Plain Hexagon Nut

ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $27.65

Units per Pack 1

Price per Pack $27.65

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $27.65

Add item to quote

Material

Steel comp 1137 or steel comp 1141 or steel comp 4130 or steel comp 4140

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.375 inches

Bearing Surface Type: Chamfered
Countersink Angle: 90.0 degrees nut
Material Specification: Qq-s-637 federal specification 1st material response or qq-s-637 federal specification 2nd material response or mil-s-6758 military specification 3rd material response or mil-s-5626 military specification 4th material response
Nut Height: 0.219 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.621 inches and 0.628 inches
