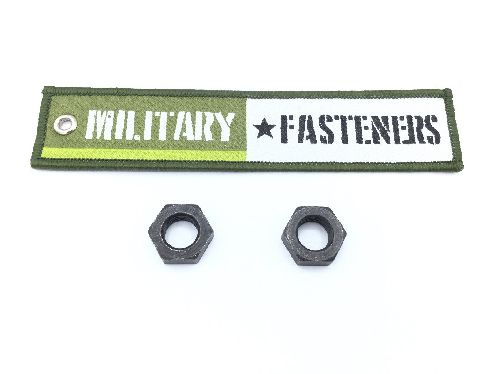

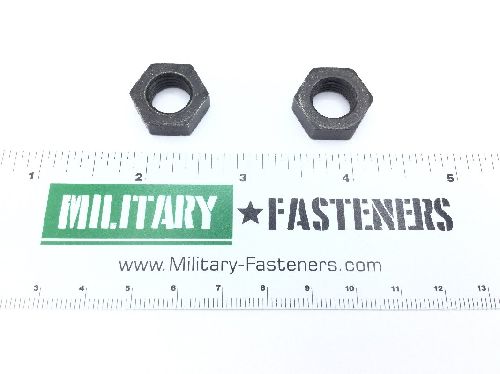

AS5178-04 Plain Hexagon Nut

ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 4130 or steel comp 4140

Surface Treatment

Type ii0class 2 federal specification single treatment response type ii0.qq-p-416 qq-p-416

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.437 inches

Bearing Surface Type: Chamfered
Material Specification: Ams 6370 assn standard single material response or ams 6382 assn standard single material response
Nut Height: 0.25 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.678 inches and 0.691 inches
