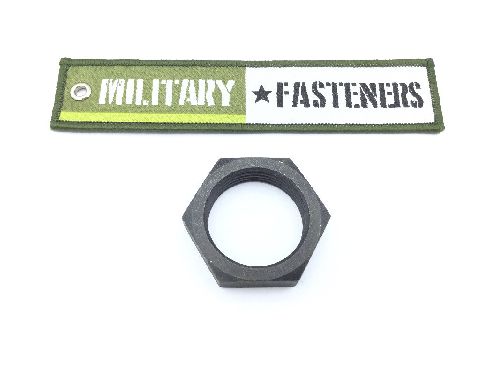

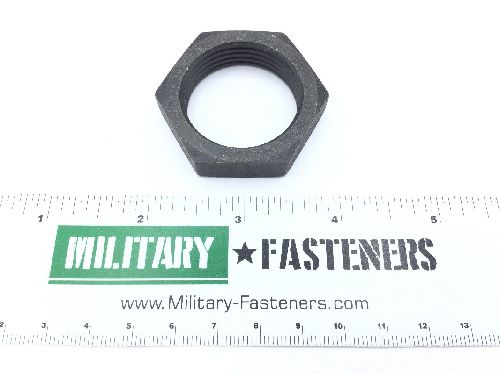

AS5178-16 Plain Hexagon Nut

ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $48.51

Units per Pack 1

Price per Pack $48.51

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $48.51

Add item to quote

Material

Steel comp 4130 or steel comp 4140

Surface Treatment

Type ii0class 2 federal specification single treatment response type ii0.qq-p-416 qq-p-416

Thread Class

3b

Thread Series

Unj

Thread Size

1.312 inches

Bearing Surface Type: Chamfered
Material Specification: Ams 6370 assn standard single material response or ams 6382 assn standard single material response
Nut Height: 0.406 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 12
Width Across Flats: Between 1.613 inches and 1.630 inches
