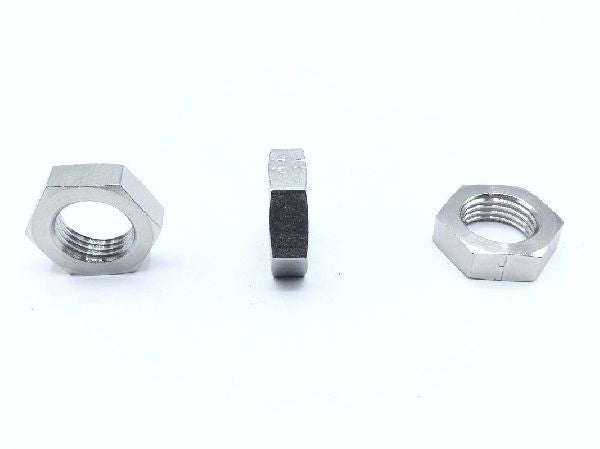

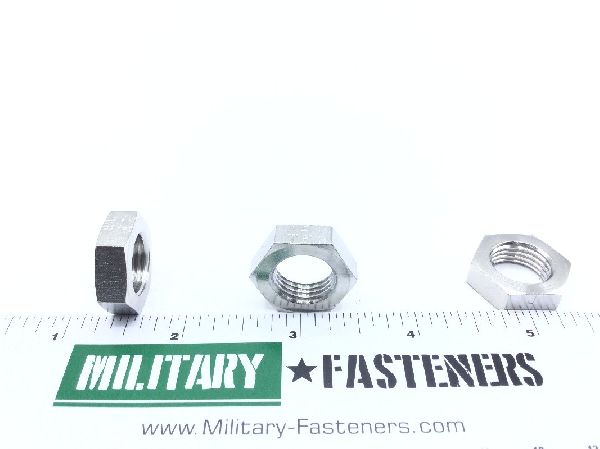

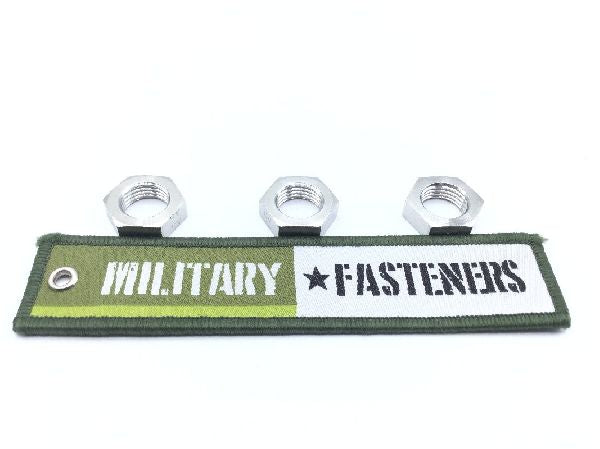

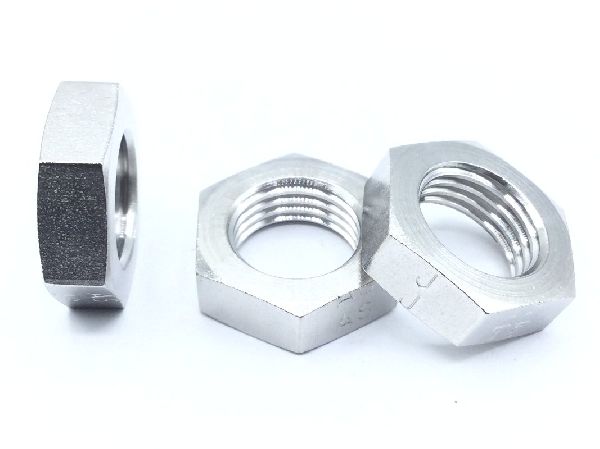

AS5178J06 Plain Hexagon Nut

ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 304

Surface Treatment

Mil-s-5002 military specification single treatment response

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.562 inches

Bearing Surface Type: Chamfered
Countersink Angle: 90.0 degrees nut
Material Specification: Cond a federal specification single material response qq-s-736
Nut Height: Between 0.250 inches and 0.282 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 18
Width Across Flats: Between 0.809 inches and 0.816 inches
