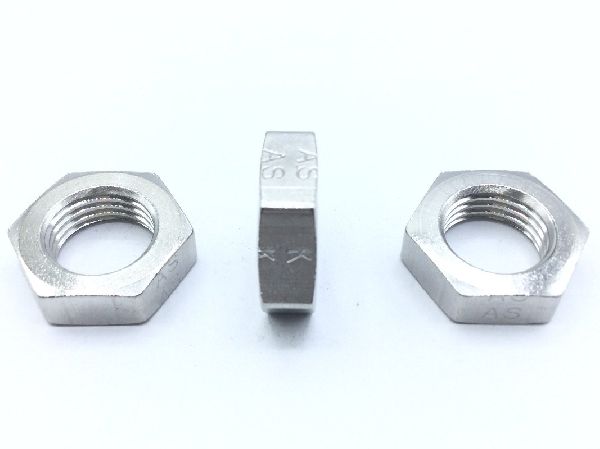

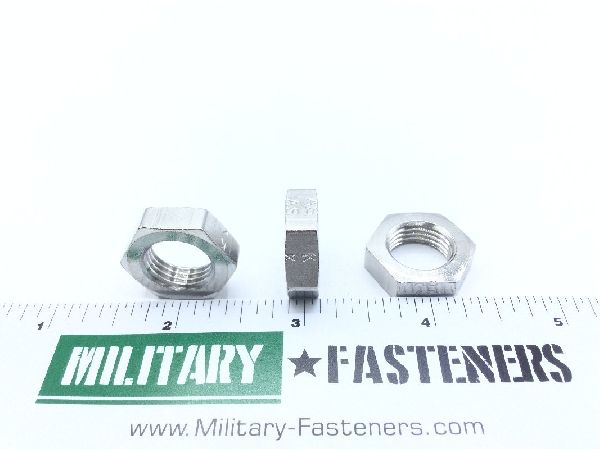

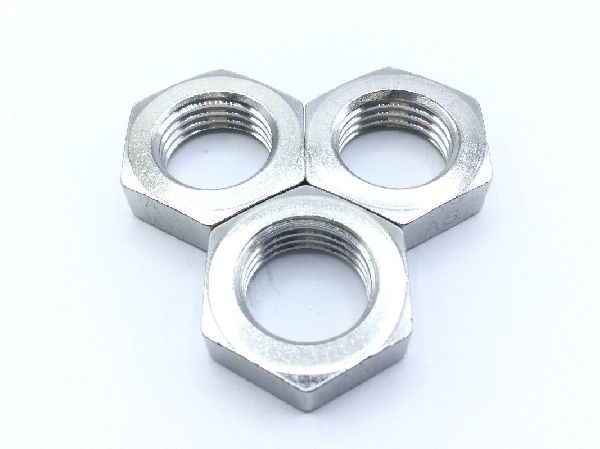

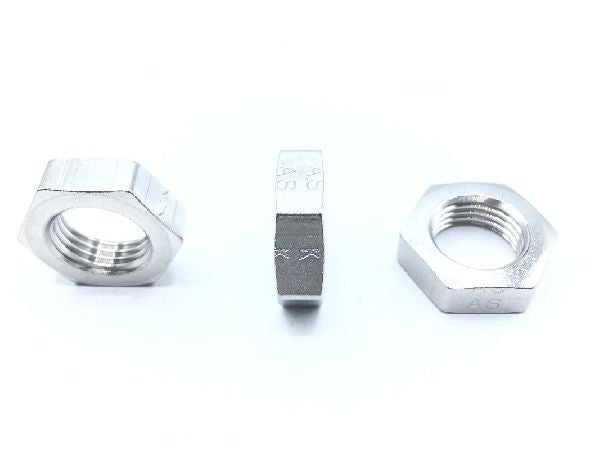

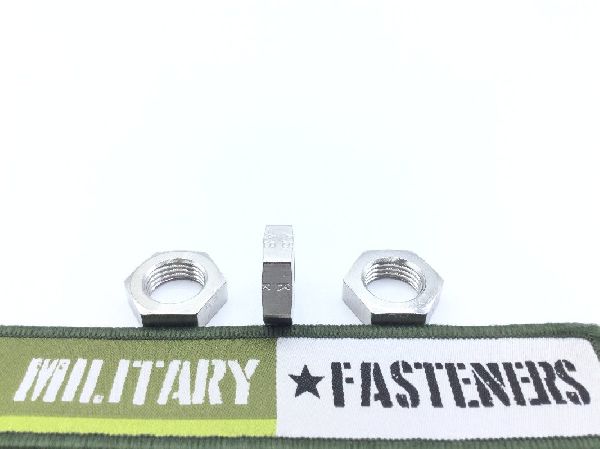

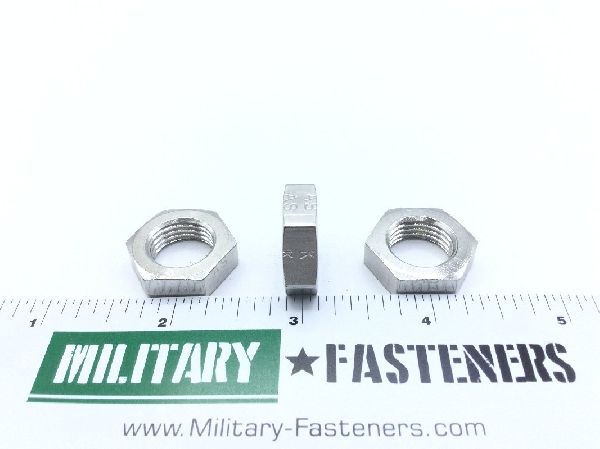

AS5178K06 Plain Hexagon Nut

AS5178K06 Plain Hexagon Nut (2)

AS5178K06 Plain Hexagon Nut (3)

AS5178K06 Plain Hexagon Nut (4)

AS5178K06 Plain Hexagon Nut (5)

AS5178K06 Plain Hexagon Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AS5178K06 Plain Hexagon Nut

ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel comp 316

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.562 inches

Bearing Surface Type: Chamfered
Material Specification: Qq-s-763 federal specification single material response or ams 5648 assn standard single material response
Nut Height: 0.266 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 18
Width Across Flats: Between 0.803 inches and 0.816 inches
