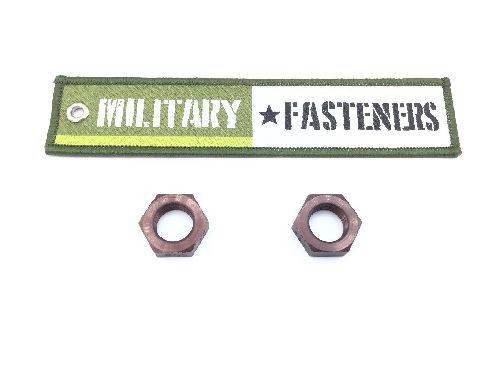

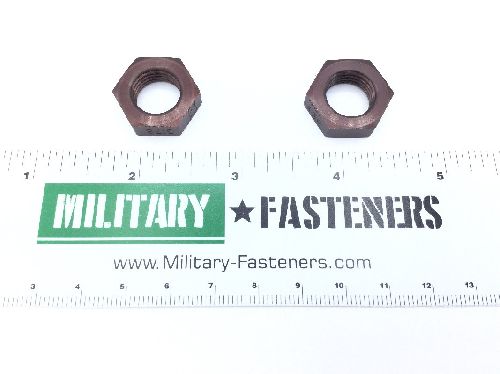

AS5178W05 Plain Hexagon Nut

ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $10.39

Units per Pack 5

Price per Pack $51.95

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $51.95

Add item to quote

Material

Aluminum alloy 7075

Surface Treatment

Class 2 military specification single treatment response type 2 mil-a-8625

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.500 inches

Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 89.5 degrees nut and 90.5 degrees nut
Material Specification: Temper t73 federal specification single material response qq-a-367
Nut Height: Between 0.234 inches and 0.266 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.746 inches and 0.753 inches
