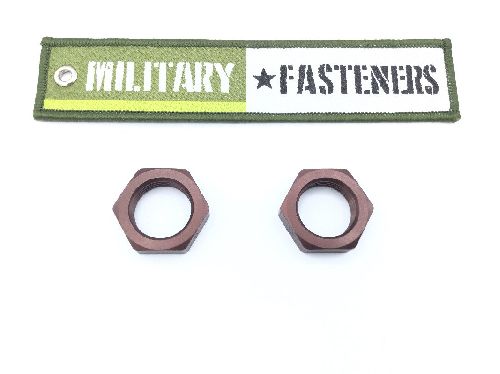

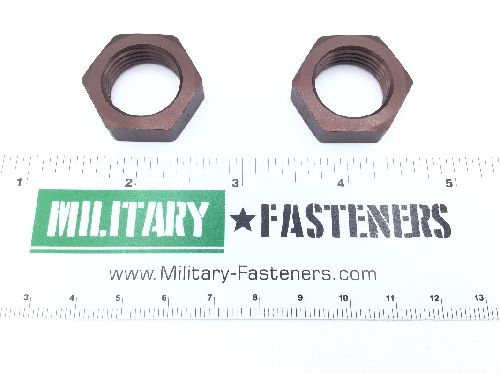

AS5178W08 Plain Hexagon Nut

ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 7075

Surface Treatment

Mil-a-8625 type 2 cl 2 military specification single treatment response

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.750 inches

Bearing Surface Type: Chamfered
Countersink Angle: 90.0 degrees both ends
Material Specification: Qq-a-367 temper t73 federal specification single material response
Nut Height: Between 0.296 inches and 0.328 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 16
Width Across Flats: Between 0.996 inches and 1.003 inches
