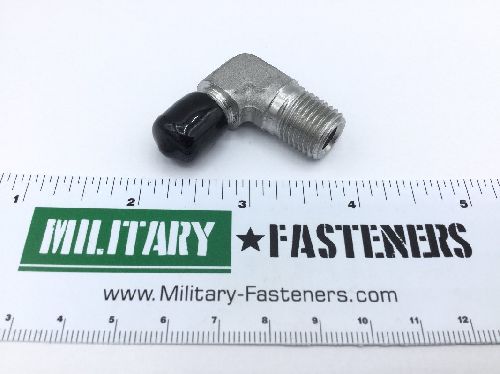

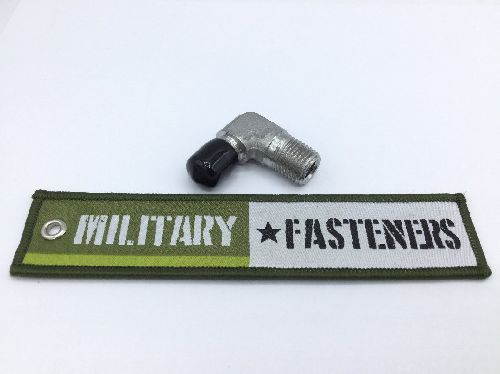

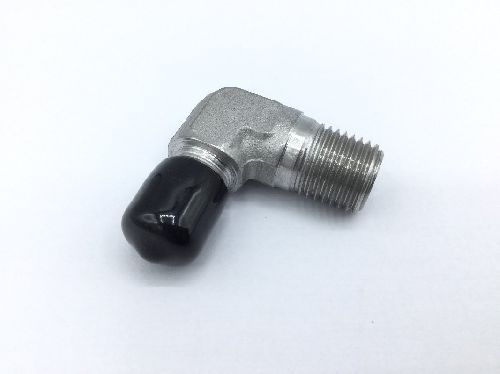

AS5195J0404 Pipe To Tube Elbow

ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 304

Thread Class

3a 1st end

Thread Size

0.250 inches 2nd end

Connection Style: Plain (pipe) 2nd end
Connection Type: Threaded external tube 1st end
Flow Angle: 90.0 degrees
Leg Length: 1.062 inches 2nd end
Material Specification: 66 federal standard single material response
Outside Diameter Tube Accommodated: 0.250 inches 1st end
Seat Angle: 37.0 degrees 1st end
Specification Data: 96906-ms20822 government standard
Thread Qty Per Inch (tpi): 12 1st end
Thread Series Designator: Anpt 2nd end
