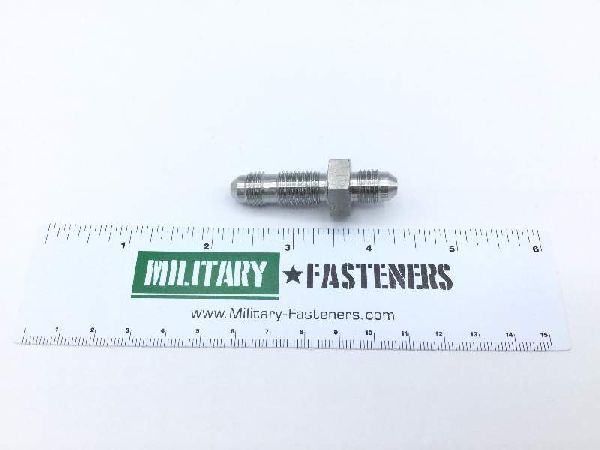

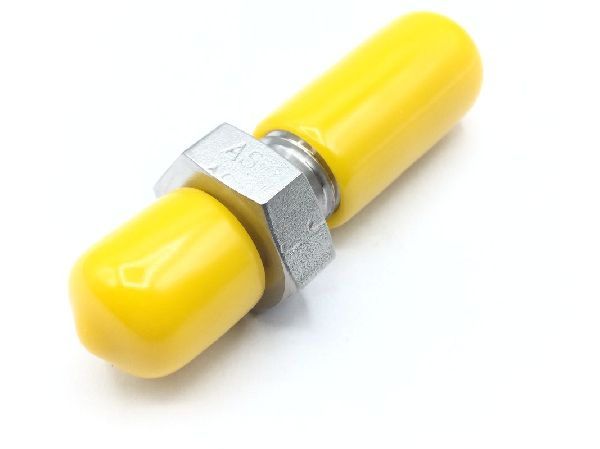

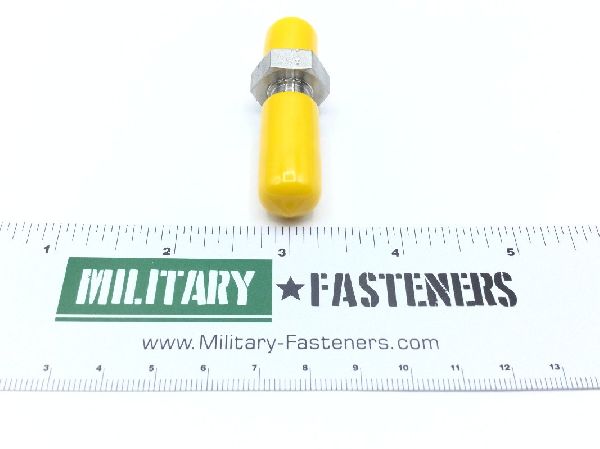

AS5406J04 Tube Nipple

ECCN: EAR99
Schedule: 4016.99.6000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

type 1 federal specification single treatment response outside qq-p-35

Thread Class

3a all ends

Thread Size

0.438 inches all ends

Connection Style: Flared (tube) all ends
Connection Type: Threaded external tube all ends
Material Specification: 66 federal standard single material response
Nominallength: 2.047 inches
Outside Diameter Tube Accommodated: 0.250 inches 1st end bulkhead
Seat Angle: 37.0 degrees all ends
Special Features: Model a10 used on grumman aircraft
Specification Data: 96906-ms24393 government standard
Style Designator: Flared w/ bulkhead thread
Thread Series Designator: Unjf (fine thread with external controlled root radius) 1st end bulkhead
