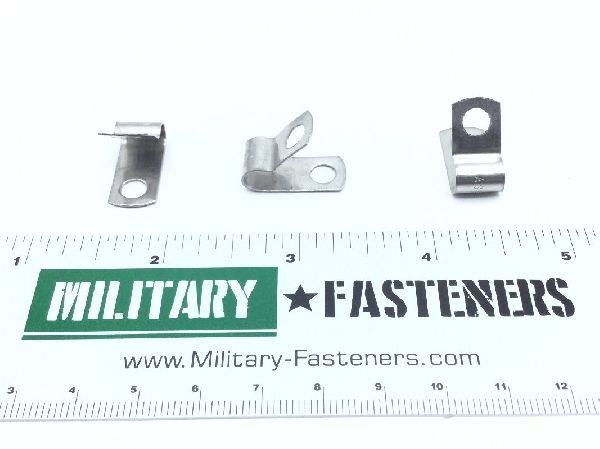

AS5587C03 Loop Clamp

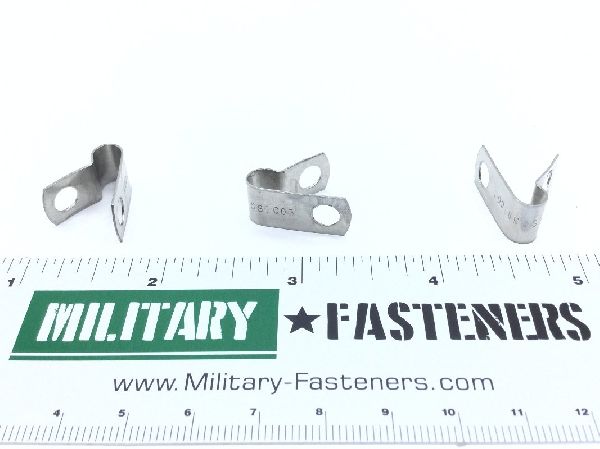

AS5587C03 Loop Clamp (2)

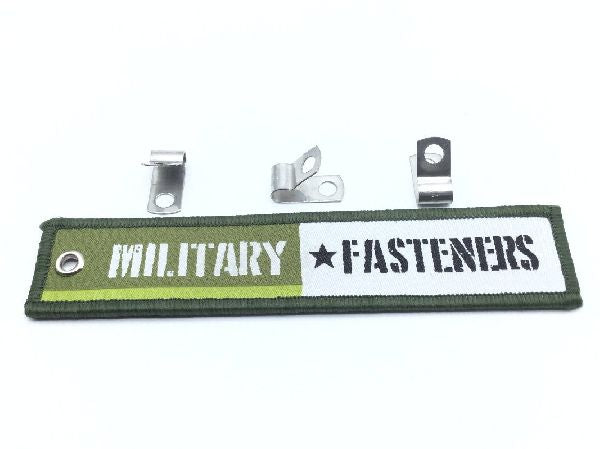

AS5587C03 Loop Clamp (3)
AS5587C03 Loop Clamp (4)

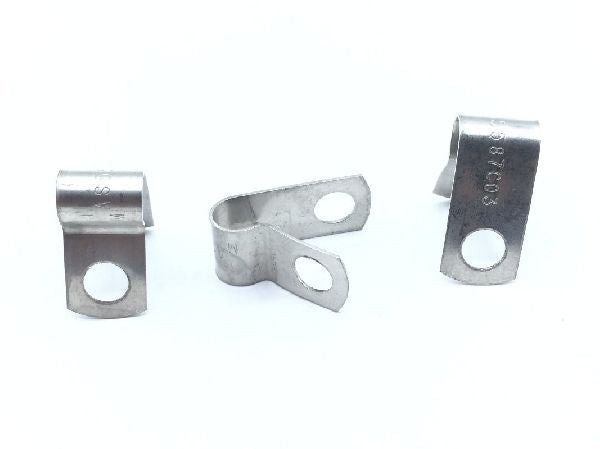

AS5587C03 Loop Clamp (5)

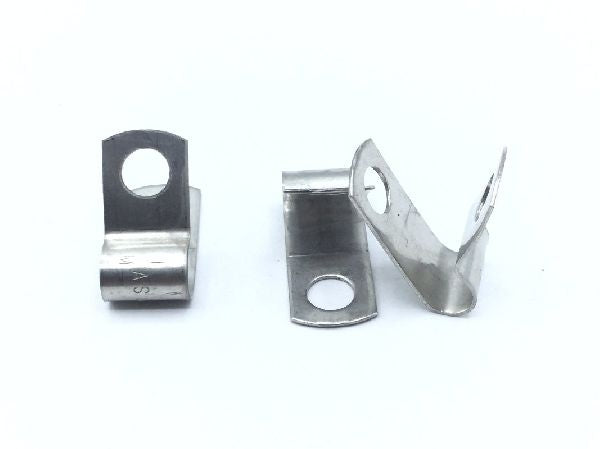

AS5587C03 Loop Clamp (6)
AS5587C03 Loop Clamp
AS5587C03 Loop Clamp (2)
AS5587C03 Loop Clamp (3)
AS5587C03 Loop Clamp (4)
AS5587C03 Loop Clamp (5)
AS5587C03 Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AS5587C03 Loop Clamp

ECCN
EAR99
Schedule
7616.10.9090
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel comp 321
Surface Treatment
Ams-qq-p-35 assn standard single treatment response
Center To Center Distance Between Loop And Mounting Hole
Between 0.413 inches and 0.433 inches
Distance From Loop Center To Tongue End
0.611 inches
Loop Inside Diameter
Between 0.178 inches and 0.198 inches
Material Specification
Ams 5510 assn standard single material response
Material Thickness
0.020 inches
Overall Width
0.375 inches
Style Designator
Single loop
Tongue Hole Type
unthreaded round
Diameter
Between 0.199 inches and 0.209 inches
