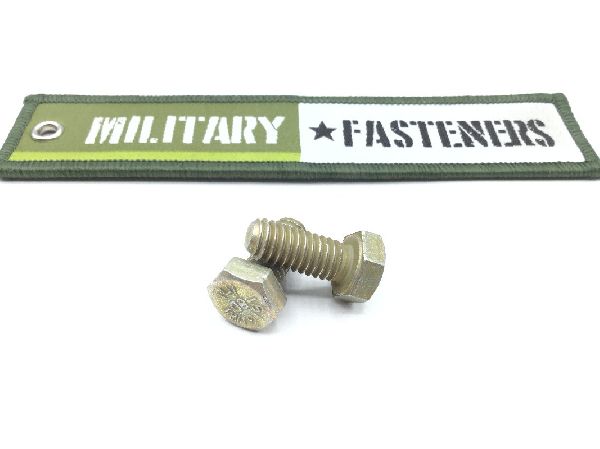

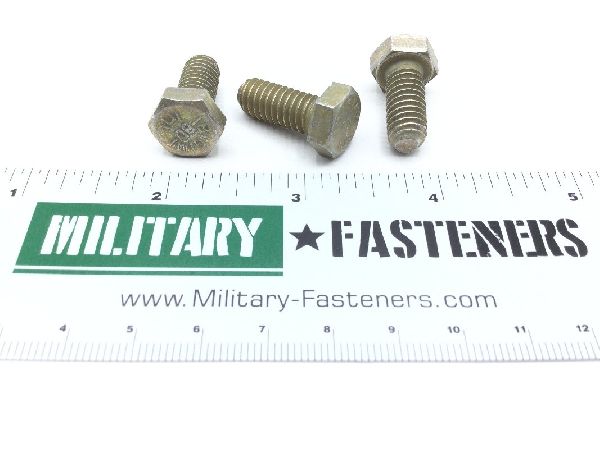

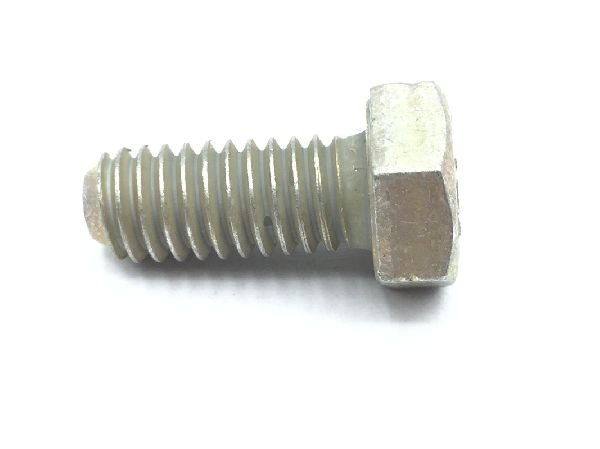

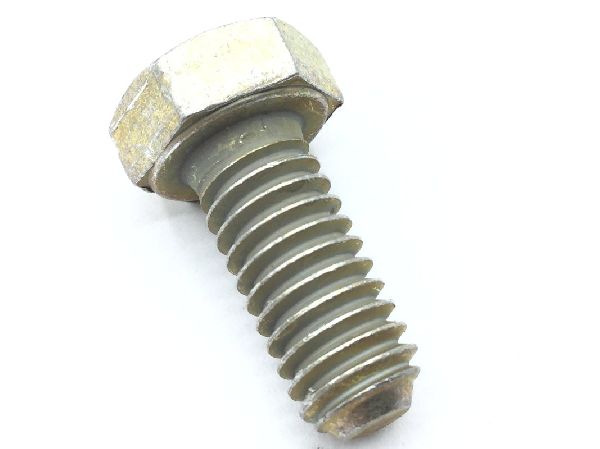

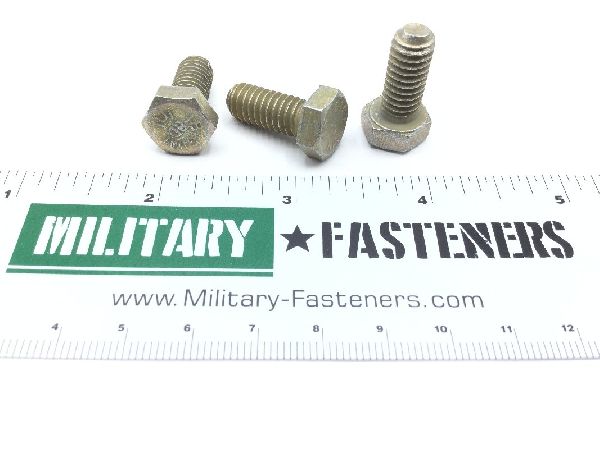

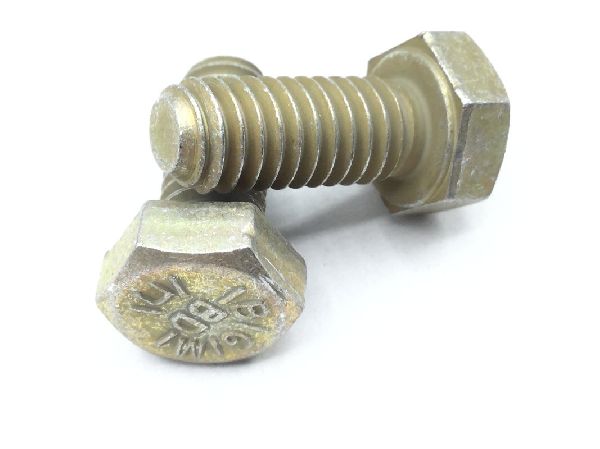

B1821AH031C075N Hexagon Head Cap Screw

B1821AH031C075N Hexagon Head Cap Screw (2)

B1821AH031C075N Hexagon Head Cap Screw (3)

B1821AH031C075N Hexagon Head Cap Screw (4)

B1821AH031C075N Hexagon Head Cap Screw (5)

B1821AH031C075N Hexagon Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

B1821AH031C075N Hexagon Head Cap Screw

ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.87

Units per Pack 25

Price per Pack $46.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $46.75

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq.p-416

Thread Class

2a

Fastener Length: Between 0.719 inches and 0.750 inches
Head Height: Between 0.195 inches and 0.211 inches
Material Specification: J429 assn standard single material response sae
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.608 inches and 0.750 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.489 inches and 0.500 inches
