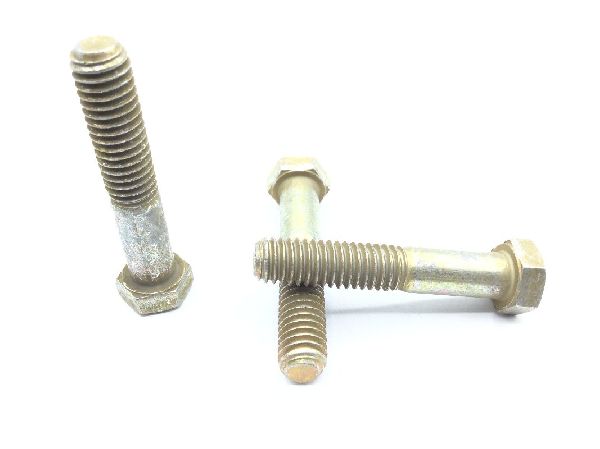

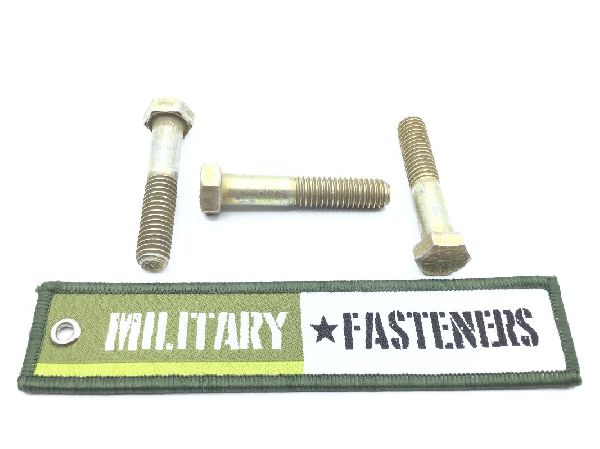

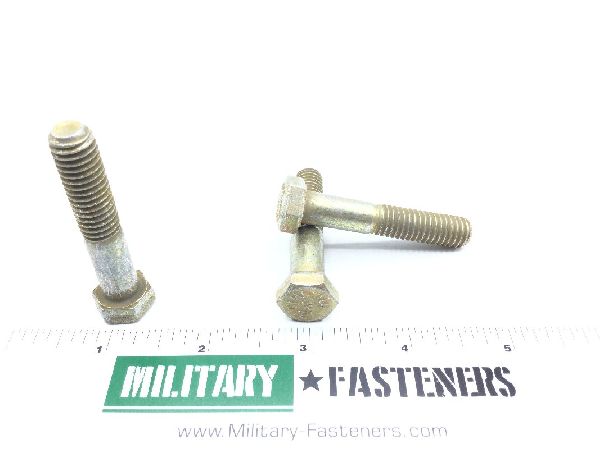

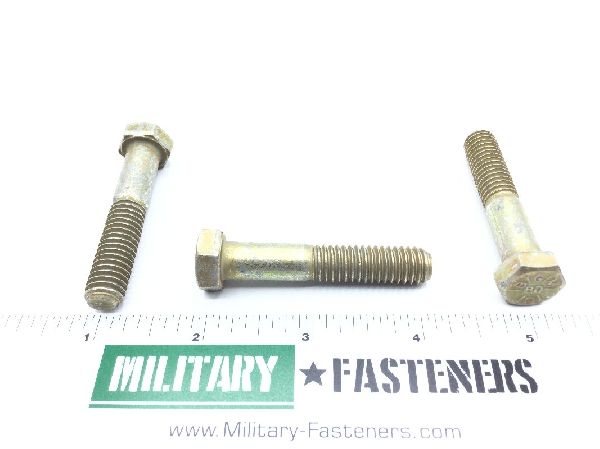

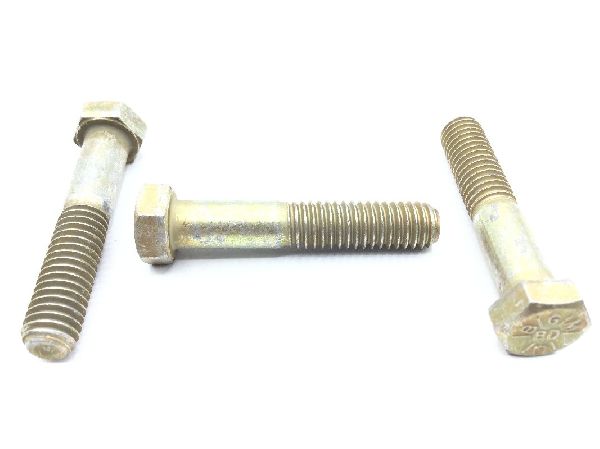

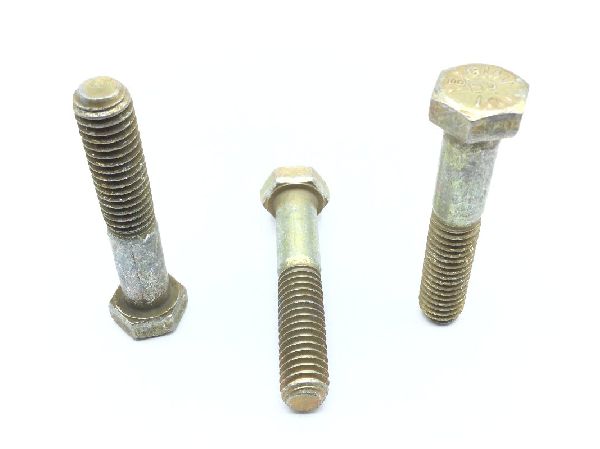

B1821AH038C200N Machine Screw

ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Ty2 cl 3 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: Between 1.938 inches and 2.000 inches
Head Height: Between 0.226 inches and 0.268 inches
Material Specification: Astm a354 grade bd assn standard single material response
Min. Tensile Strength (psi): 150000 pounds per square inch
Surface Finish: 63.0 microinches threads
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 1.000 inches and 1.188 inches
Thread Qty Per Inch (tpi): 16
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.544 inches and 0.562 inches
