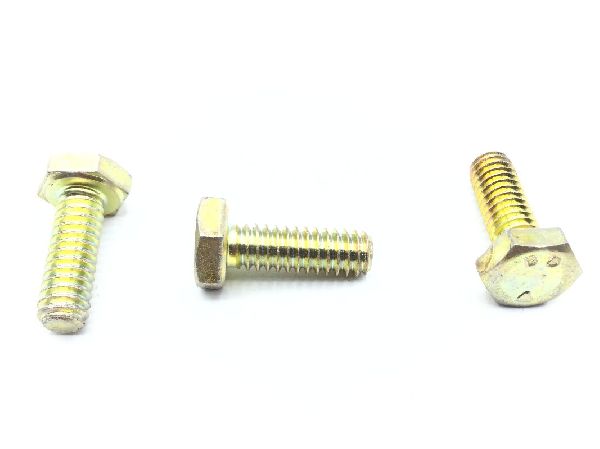

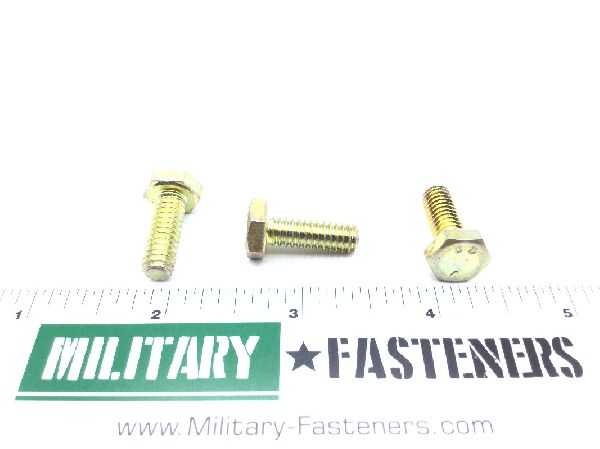

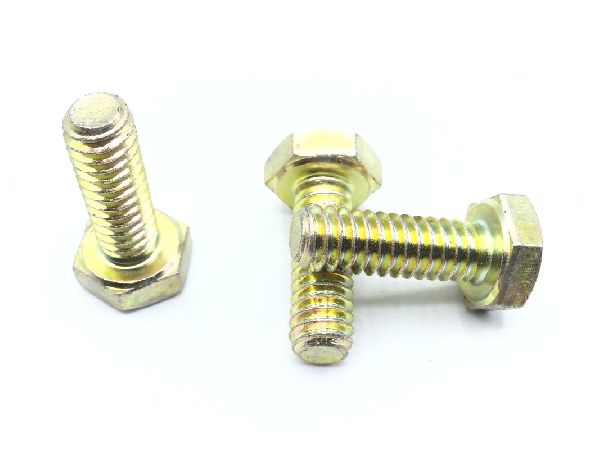

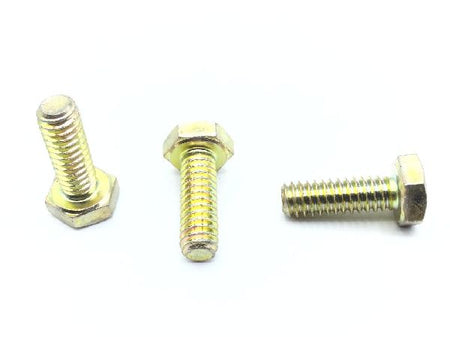

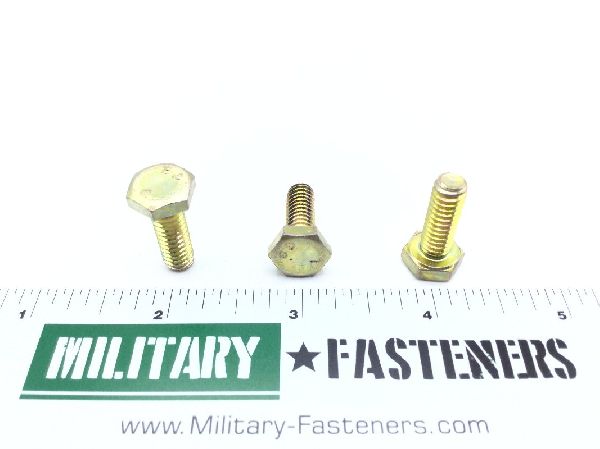

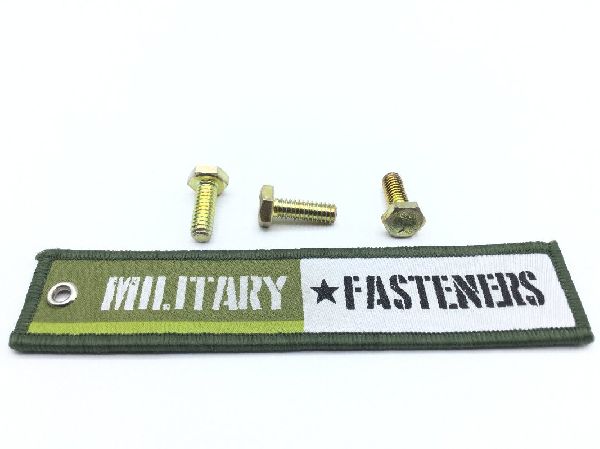

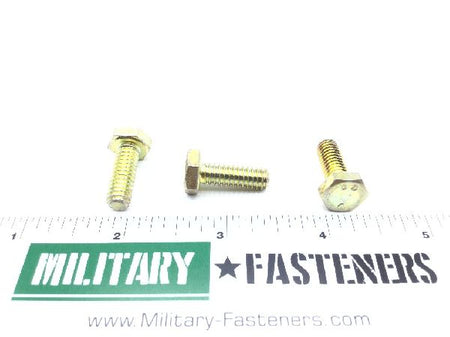

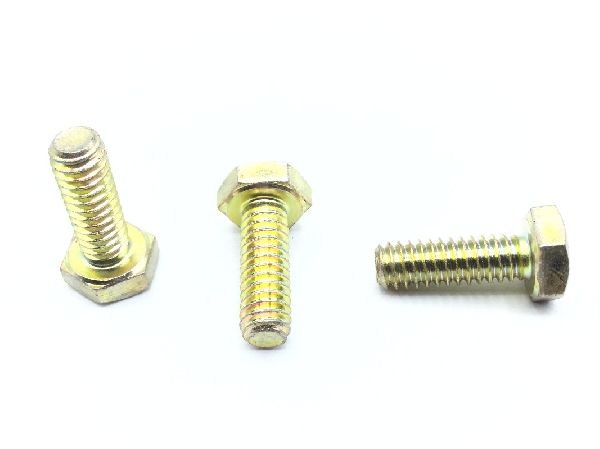

B1821BH025C075N Machine Screw

ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.29

Units per Pack 100

Price per Pack $29.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $29.00

Add item to quote

Head Style

Hexagon

Material

Steel comp 1013 or steel comp 1015 or steel comp 1016 or steel comp 1017 or steel comp 1018 or steel comp 1019 or steel comp 1020 or steel comp 1021 or steel comp 1022 or steel comp 1023 or steel comp 1524 or steel comp 1025 or steel com

Surface Treatment

Astm b633 type 2 sc 3 assn standard single treatment response

Thread Class

Criticality Code Justification: Feat
Fastener Length: Between 0.719 inches and 0.750 inches
Head Height: Between 0.150 inches and 0.163 inches
Iii End Application: Mrap buffalo mk2a2;mrap - m-atv with cs13 pop and sne; mrap - m-atv ui; mrap - cougar tow (itas)
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 150000 pounds per square inch
Special Features: Weapon system essential
Surface Finish: 63.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.594 inches and 0.750 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.428 inches and 0.438 inches
