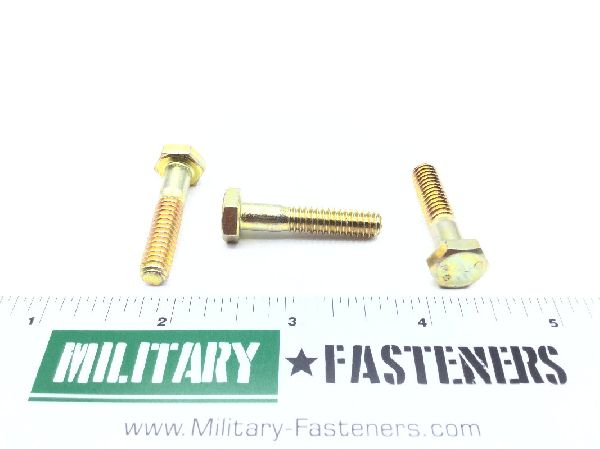

B1821BH025C125N Hexagon Head Cap Screw

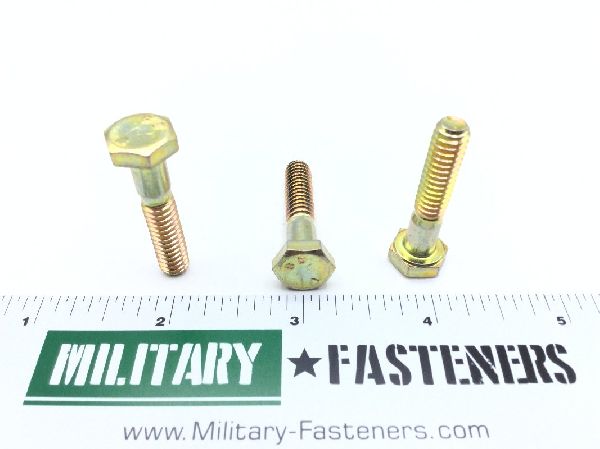

B1821BH025C125N Hexagon Head Cap Screw (2)

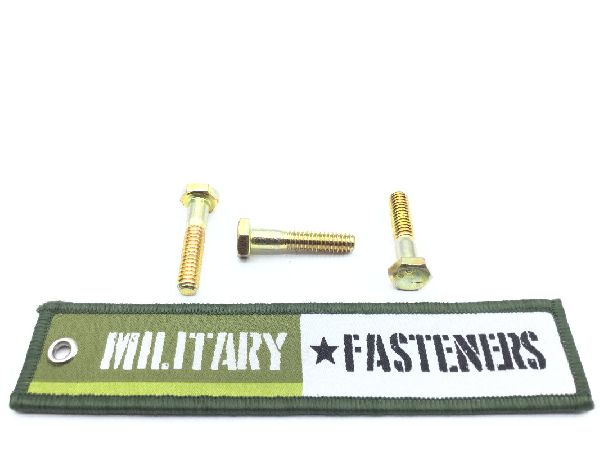

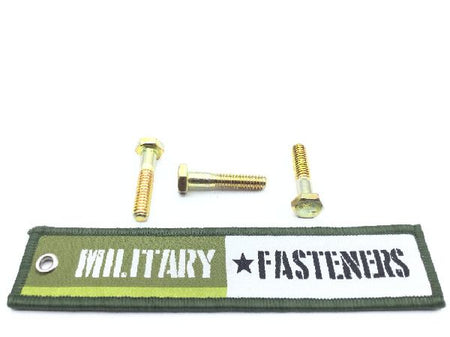

B1821BH025C125N Hexagon Head Cap Screw (3)

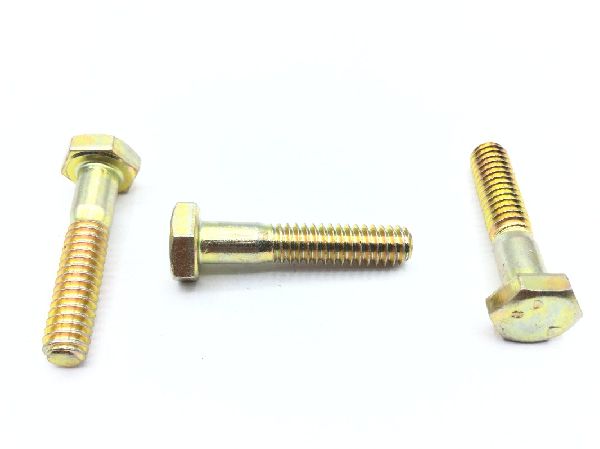

B1821BH025C125N Hexagon Head Cap Screw (4)

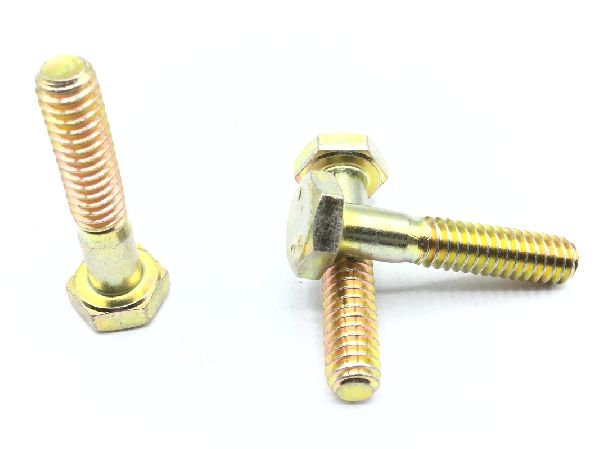

B1821BH025C125N Hexagon Head Cap Screw (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

B1821BH025C125N Hexagon Head Cap Screw

ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $0.38
Units per Pack 100
Price per Pack $38.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:
Total Packs 1
Total Price $38.00
Add item to quote
Head Style
Hexagon
Material
Steel
Surface Treatment
Astm b633 type 2 sc 3 assn standard single treatment response
Thread Class
2a
End Application
Mrap rg-33 and rg-33 auv
Fastener Length
1.250 inches
Hardness Rating
33 rockwell c and 39 rockwell c
Head Height
Between 0.150 inches and 0.163 inches
Material Specification
Grade bd assn standard single material response grade8 assn standard single material response or astm a354 sae j429
Min. Tensile Strength (psi)
150000 pounds per square inch
Minimum Yield Strength
120000 pounds per square inch
Thread Diameter
0.25 inches
Thread Direction
Right-hand
Thread Length
Between 0.75 inches and 0.938 inches
Thread Qty Per Inch (tpi)
20
Thread Series Designator
Unc (coarse thread)
Width Between Flats
Between 0.428 inches and 0.438 inches
