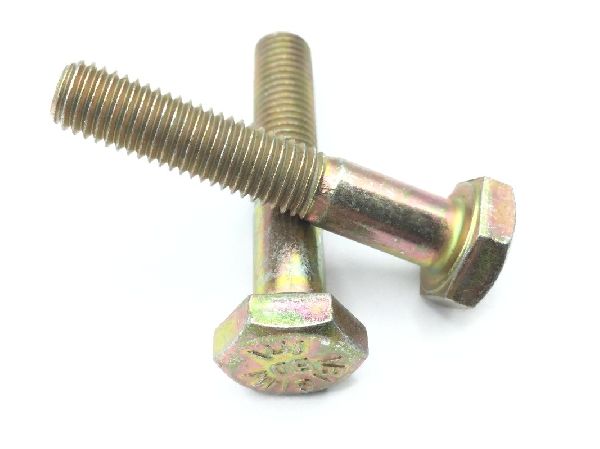

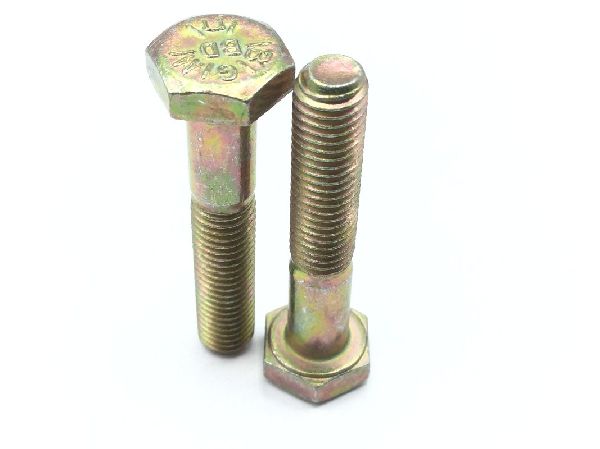

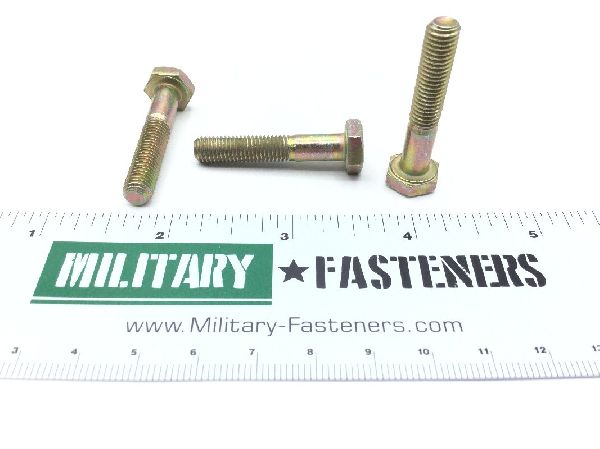

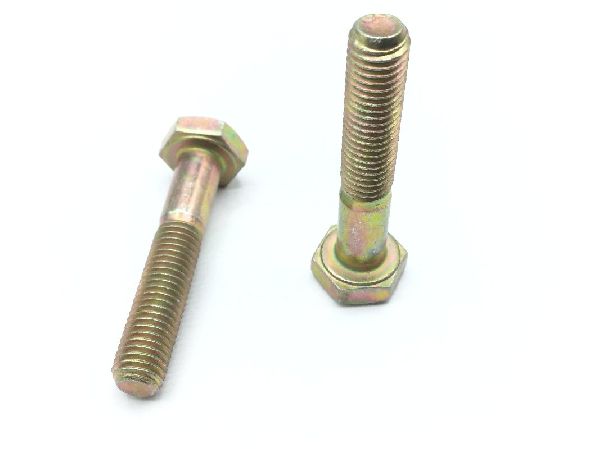

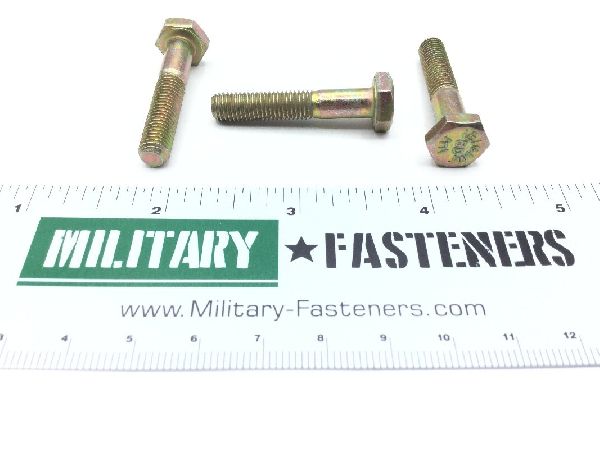

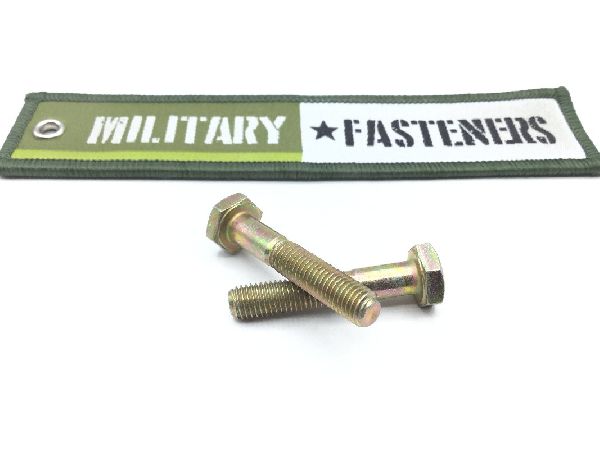

B1821BH025F138N Hexagon Head Cap Screw
B1821BH025F138N Hexagon Head Cap Screw (2)
B1821BH025F138N Hexagon Head Cap Screw (3)
B1821BH025F138N Hexagon Head Cap Screw (4)
B1821BH025F138N Hexagon Head Cap Screw (5)
B1821BH025F138N Hexagon Head Cap Screw (6)
B1821BH025F138N Hexagon Head Cap Screw
B1821BH025F138N Hexagon Head Cap Screw (2)
B1821BH025F138N Hexagon Head Cap Screw (3)
B1821BH025F138N Hexagon Head Cap Screw (4)
B1821BH025F138N Hexagon Head Cap Screw (5)
B1821BH025F138N Hexagon Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

B1821BH025F138N Hexagon Head Cap Screw

ECCN
EAR99
Schedule
7318.15.9000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel
Surface Treatment
Astm b633 type 2 sc 3 assn standard single treatment response
Thread Class
2a
Thread Quantity Per Inch (tpi)
28
Fastener Length
1.375 inches
Hardness Rating
32.0 rockwell c and 38.0 rockwell c
Head Height
Between 0.15 inches and 0.163 inches
Material Specification
Sae j429 gr 8 assn standard single material response
Min. Tensile Strength (psi)
150000 pounds per square inch
Nondefinitive Specification/std Data
2 type and 10p style and 8 grade
Thread Diameter
0.25 inches
Thread Direction
Right-hand
Thread Length
Between 0.75 inches and 0.938 inches
Thread Series Designator
Unf (fine thread)
Width Between Flats
Between 0.428 inches and 0.438 inches
