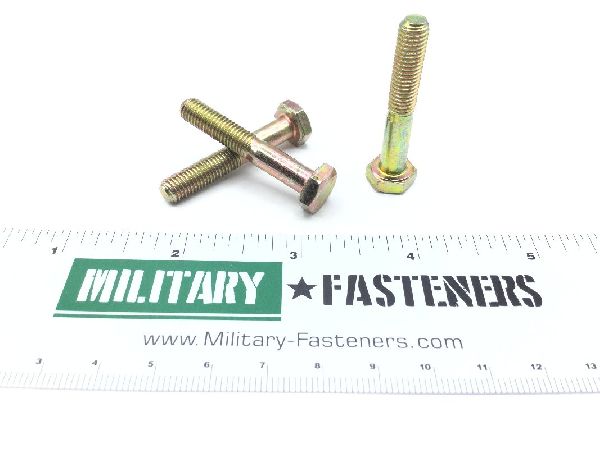

B1821BH025F150N Hexagon Head Cap Screw

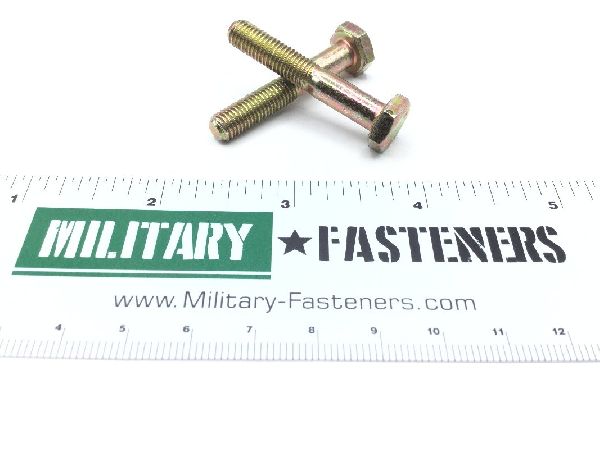

B1821BH025F150N Hexagon Head Cap Screw (2)

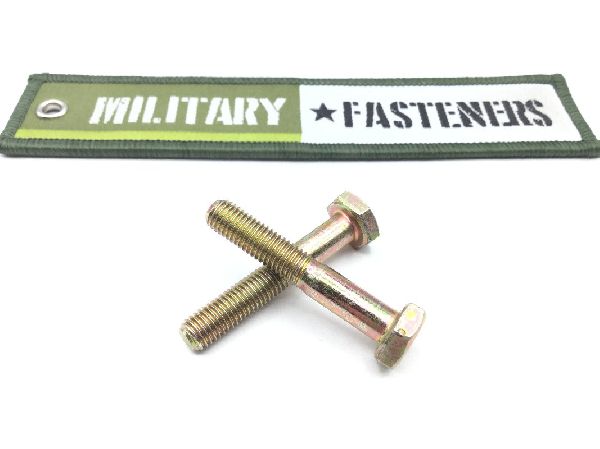

B1821BH025F150N Hexagon Head Cap Screw (3)

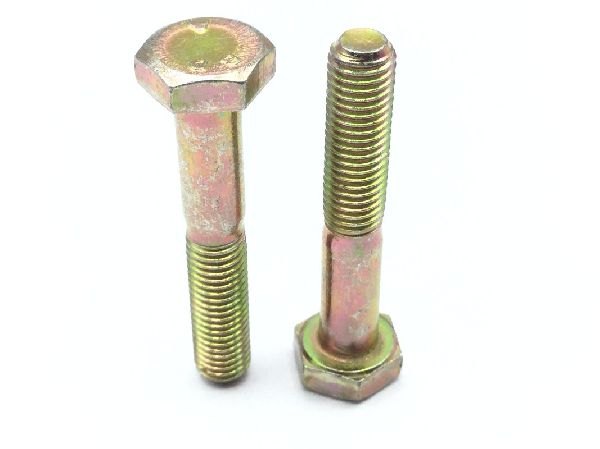

B1821BH025F150N Hexagon Head Cap Screw (4)

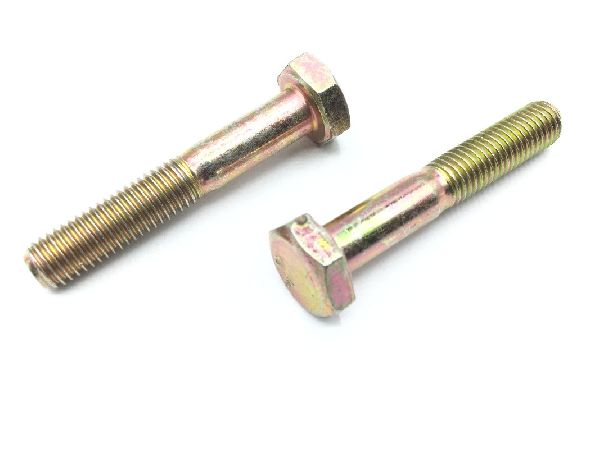

B1821BH025F150N Hexagon Head Cap Screw (5)

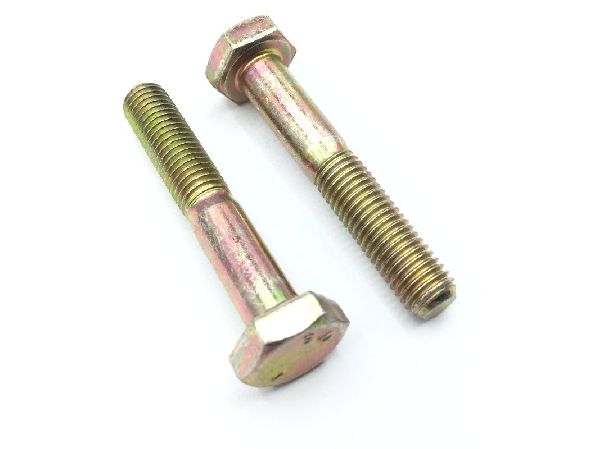

B1821BH025F150N Hexagon Head Cap Screw (6)
B1821BH025F150N Hexagon Head Cap Screw
B1821BH025F150N Hexagon Head Cap Screw (2)
B1821BH025F150N Hexagon Head Cap Screw (3)
B1821BH025F150N Hexagon Head Cap Screw (4)
B1821BH025F150N Hexagon Head Cap Screw (5)
B1821BH025F150N Hexagon Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

B1821BH025F150N Hexagon Head Cap Screw

ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $0.69
Units per Pack 50
Price per Pack $34.50
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:
Total Packs 1
Total Price $34.50
Add item to quote
Head Style
Hexagon
Material
Steel
Surface Treatment
Astm b633 type 2 sc 3 assn standard single treatment response
Thread Class
2a
Fastener Length
1.500 inches
Hardness Rating
32.0 rockwell c and 38.0 rockwell c
Head Height
Between 0.150 inches and 0.163 inches
Material Specification
Sae j429 gr 8 assn standard single material response
Min. Tensile Strength (psi)
150000 pounds per square inch
Nondefinitive Specification/std Data
2 type and 10p style and 8 grade
Thread Diameter
0.250 inches
Thread Direction
Right-hand
Thread Length
Between 0.750 inches and 0.938 inches
Thread Qty Per Inch (tpi)
28
Thread Series Designator
Unf (fine thread)
Width Between Flats
Between 0.428 inches and 0.438 inches
