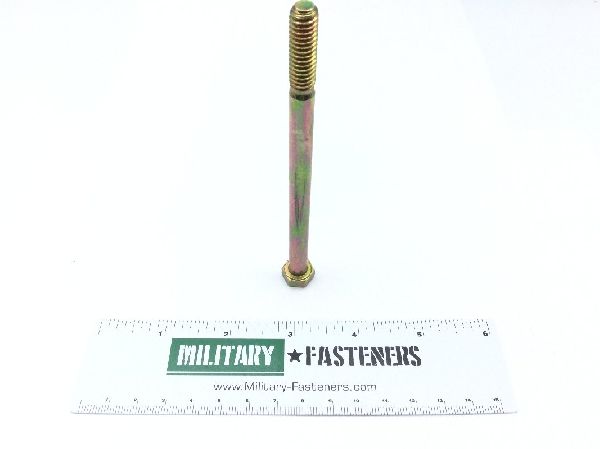

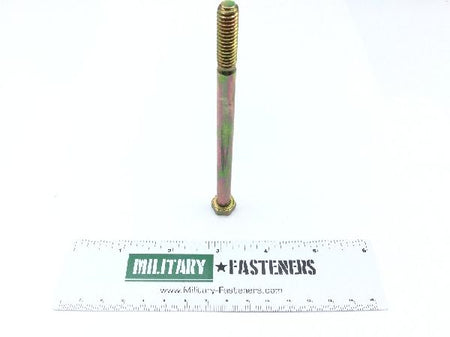

B1821BH031C475N Hexagon Head Cap Screw (2)

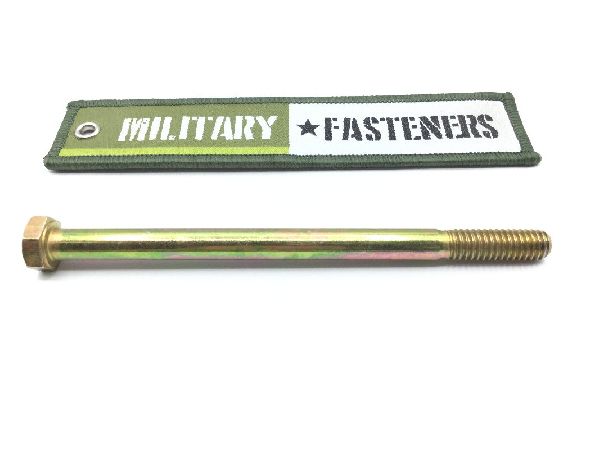

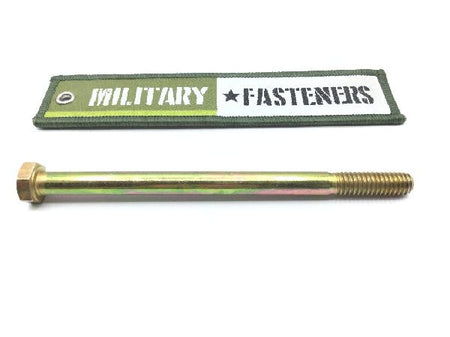

B1821BH031C475N Hexagon Head Cap Screw (3)

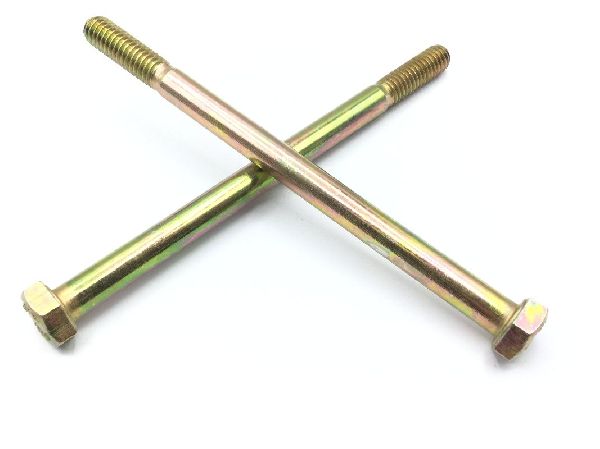

B1821BH031C475N Hexagon Head Cap Screw (4)

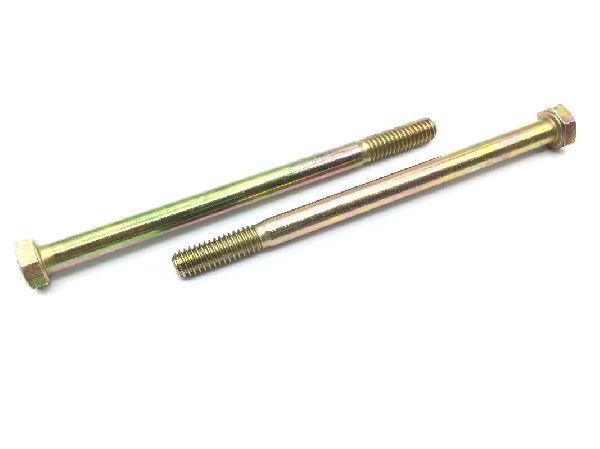

B1821BH031C475N Hexagon Head Cap Screw (5)

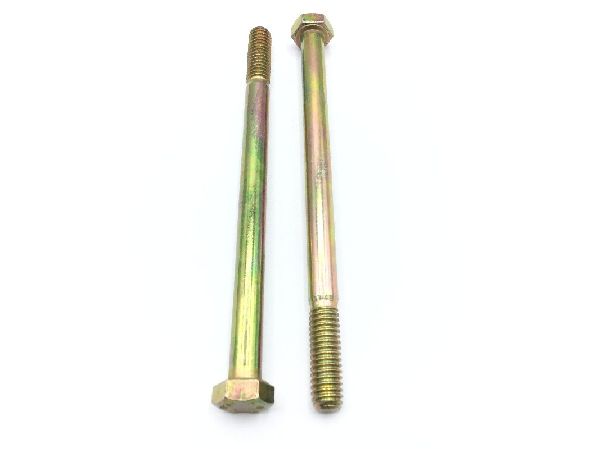

B1821BH031C475N Hexagon Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

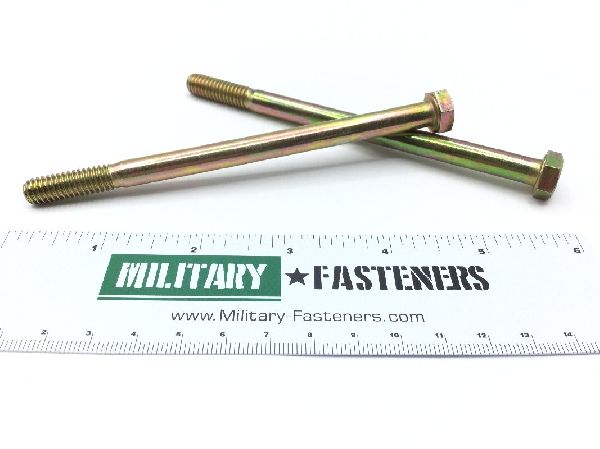

B1821BH031C475N Hexagon Head Cap Screw

ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.87

Units per Pack 25

Price per Pack $46.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $46.75

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Astm b633 type 2 sc 3 assn standard single treatment response

Thread Class

Fastener Length: Between 4.656 inches and 4.75 inches
Features: Finished head
Features Provided: Finished head
Head Height: Between 0.195 inches and 0.211 inches
Material Specification: Sae j429 grade 8 assn standard single material response or astm a354 grade bd assn standard single material response
Min. Tensile Strength (psi): 150000 pounds per square inch
Surface Finish: 63 micro inches threads
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.875 inches and 1.062 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.489 inches and 0.500 inches
