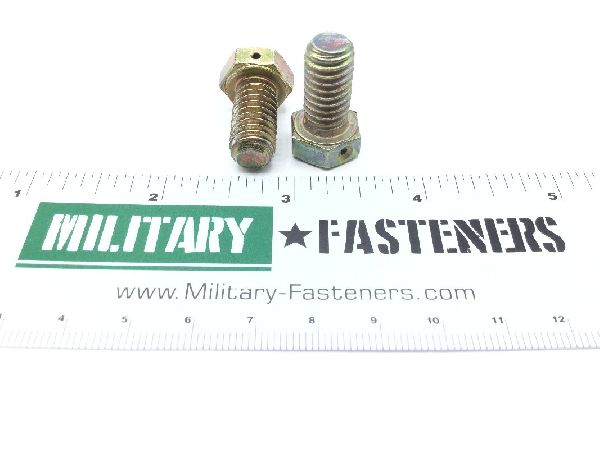

B1821BH038C075D Hexagon Head Cap Screw (2)

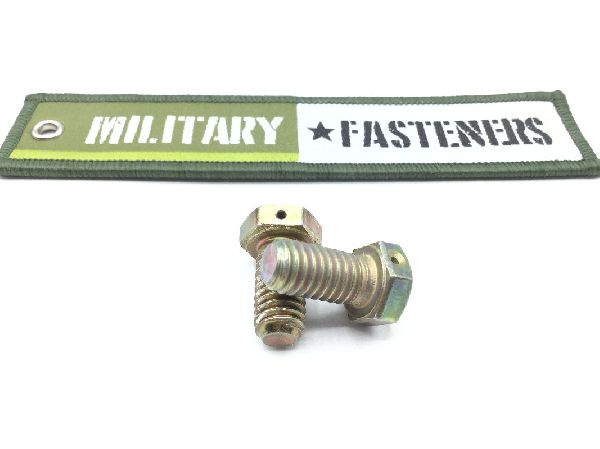

B1821BH038C075D Hexagon Head Cap Screw (3)

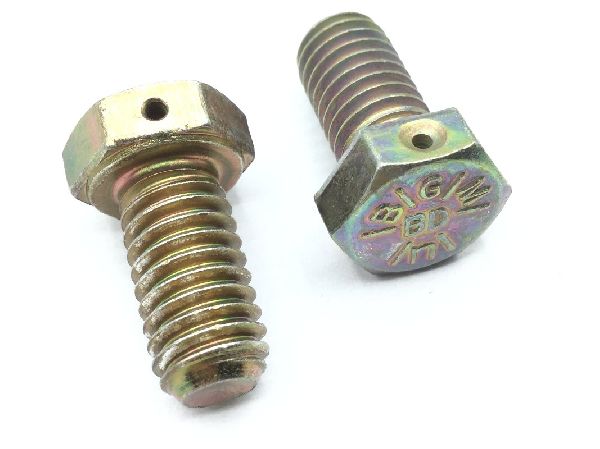

B1821BH038C075D Hexagon Head Cap Screw (4)

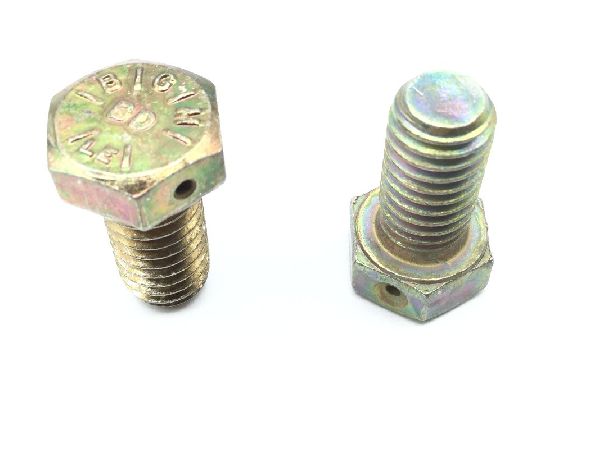

B1821BH038C075D Hexagon Head Cap Screw (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

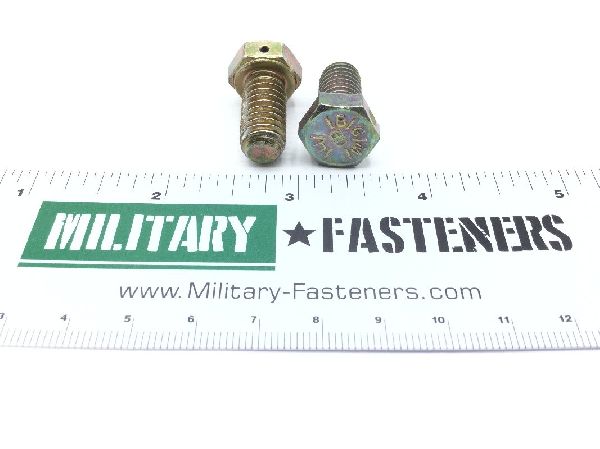

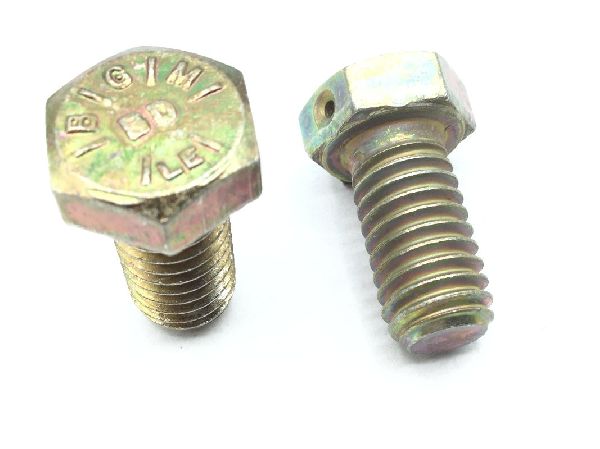

B1821BH038C075D Hexagon Head Cap Screw

ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $11.01

Units per Pack 5

Price per Pack $55.05

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $55.05

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Astm b633 type 2 sc 3 assn standard single treatment response

Thread Class

Fastener Length: Between 0.719 inches and 0.750 inches
Hardness Rating: 32.0 rockwell c and 38.0 rockwell c
Head Height: Between 0.226 inches and 0.243 inches
Material Specification: Sae gr 8 assn standard single material response
Min. Tensile Strength (psi): 150000 pounds per square inch
Nondefinitive Specification/std Data: 2 type and 10p style and 8 grade
Surface Finish: 63.0 microinches threads
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.750 inches
Thread Qty Per Inch (tpi): 16
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.551 inches and 0.563 inches
