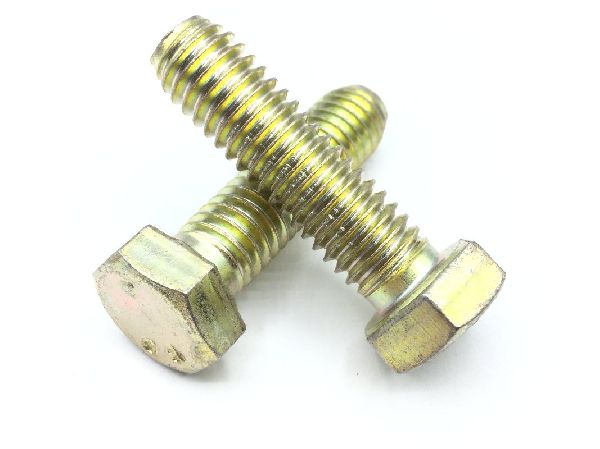

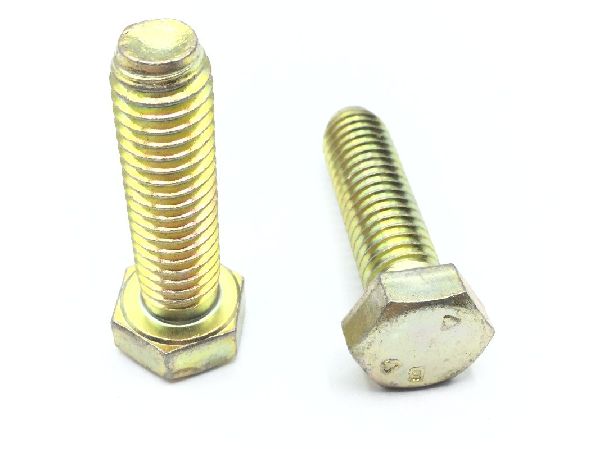

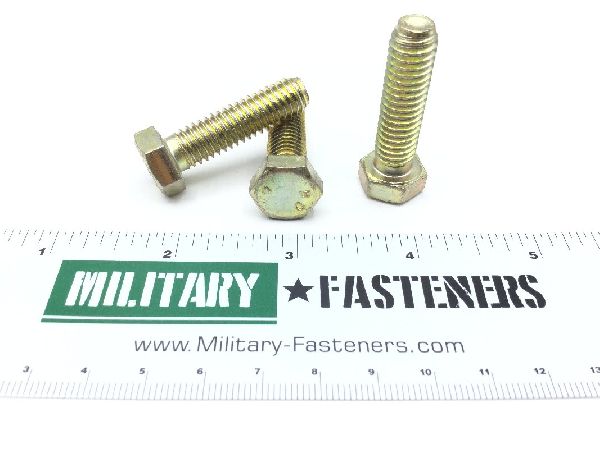

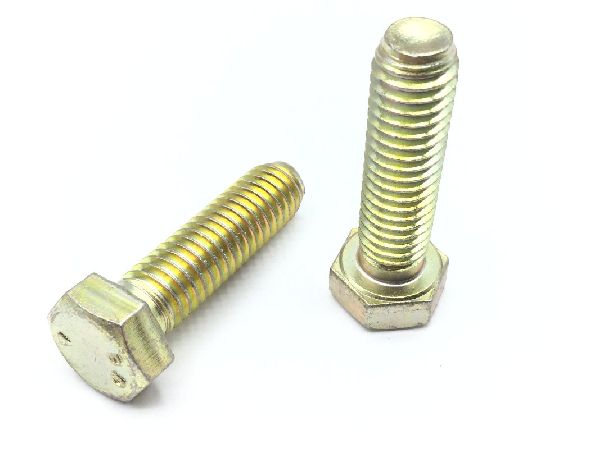

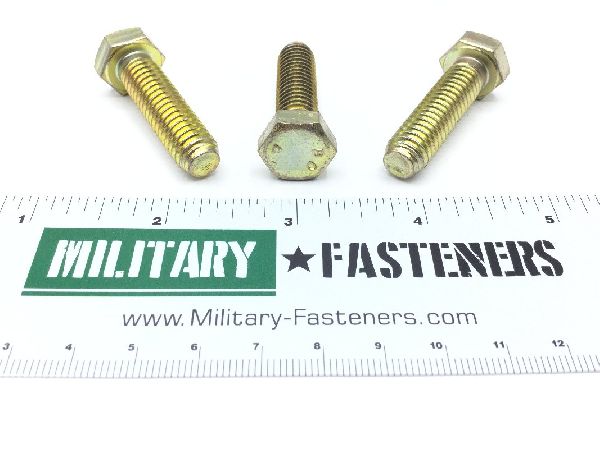

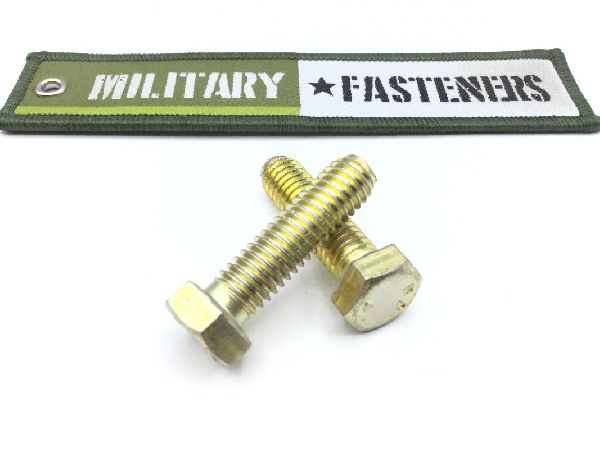

B1821BH038C138N Hexagon Head Cap Screw
- ECCN
- EAR99
- Schedule
- 7318.15.2091
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Fastener Length
- Between 1.313 inches and 1.375 inches
- Hardness Rating
- 32.0 rockwell c and 38.0 rockwell c
- Head Height
- Between 0.226 inches and 0.243 inches
- Iii End Application
- Mrap-rg-33 and rg-33 auv; mrap - m-atv with cs13 sne; mrap - cougar tow
- Material Specification
- Sae j429 grade 8 assn standard single material response or astm a354 grade bd assn standard single material response
- Min. Tensile Strength (psi)
- 150000 pounds per square inch
- Surface Finish
- 63.0 microinches threads
- Thread Diameter
- 0.375 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 1.000 inches and 1.188 inches
- Thread Qty Per Inch (tpi)
- 16
- Thread Series Designator
- Unc (coarse thread)
- Width Between Flats
- Between 0.551 inches and 0.562 inches
