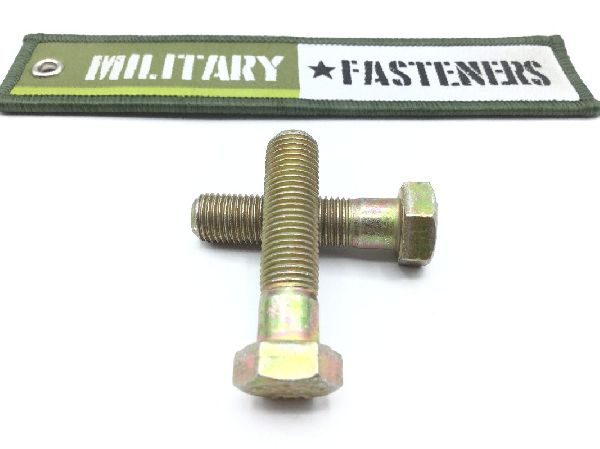

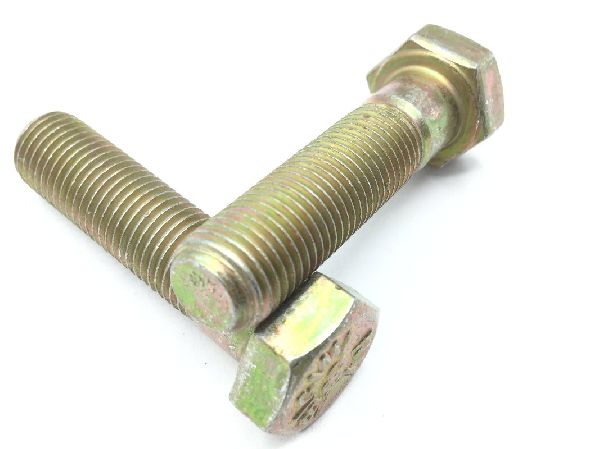

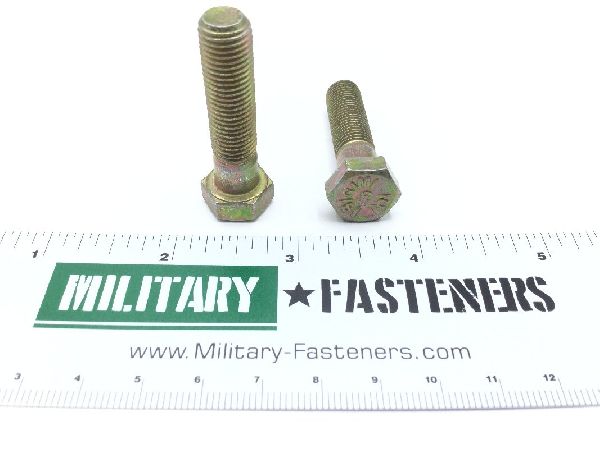

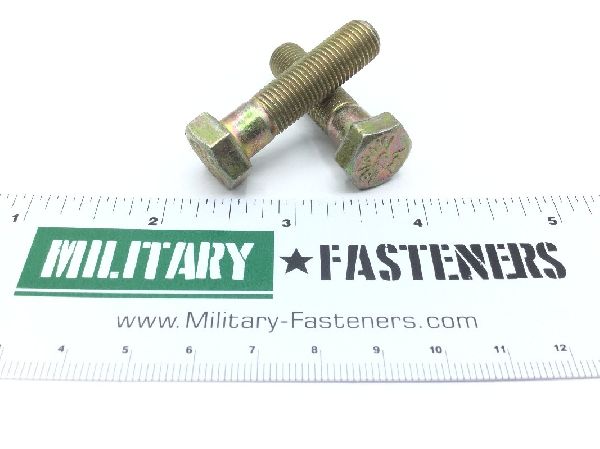

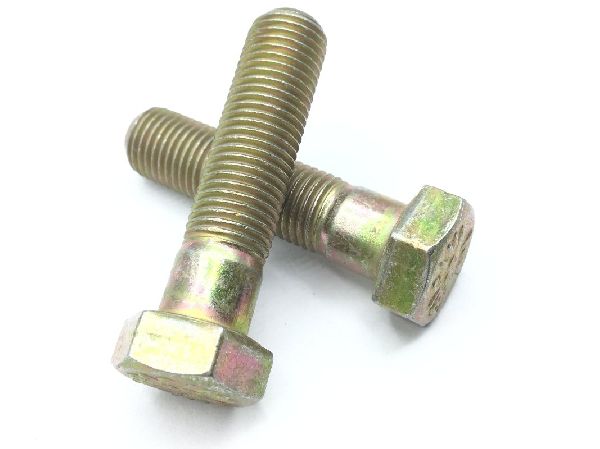

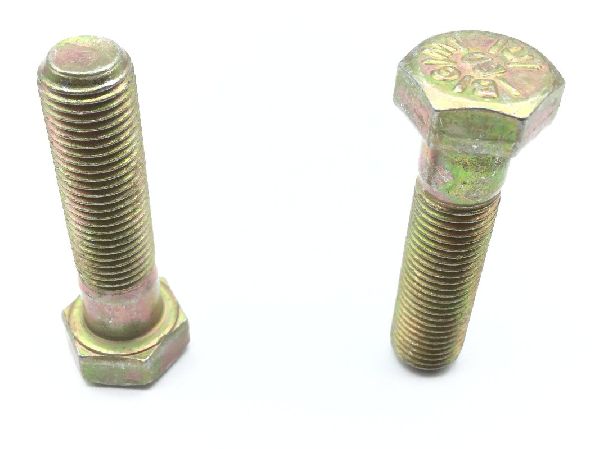

B1821BH038F150N Hexagon Head Cap Screw

ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.18

Units per Pack 50

Price per Pack $59.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $59.00

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Astm b633 ty sc 3 assn standard single treatment response

Thread Class

End Application: Mrap rg-33 auv
Fastener Length: 1.500 inches
Hardness Rating: 32.0 rockwell c and 38.0 rockwell c
Head Height: Between 0.226 inches and 0.243 inches
Material Specification: Sae j429 gr8 assn standard single material response
Min. Tensile Strength (psi): 150000 pounds per square inch
Nondefinitive Specification/std Data: 2 type and y10p style and 8 grade
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 1.000 inches and 1.188 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.551 inches and 0.562 inches
