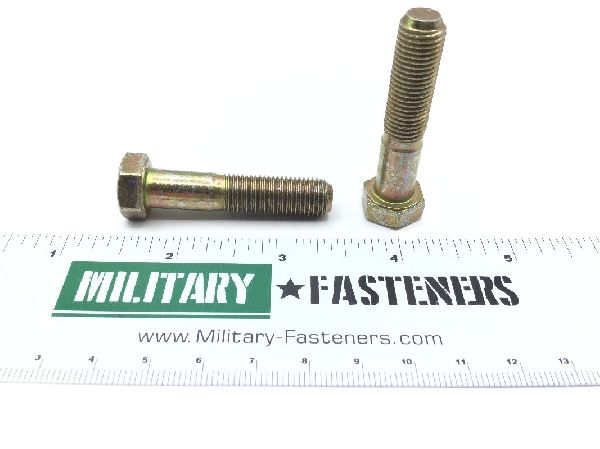

B1821BH038F175N Hexagon Head Cap Screw (2)

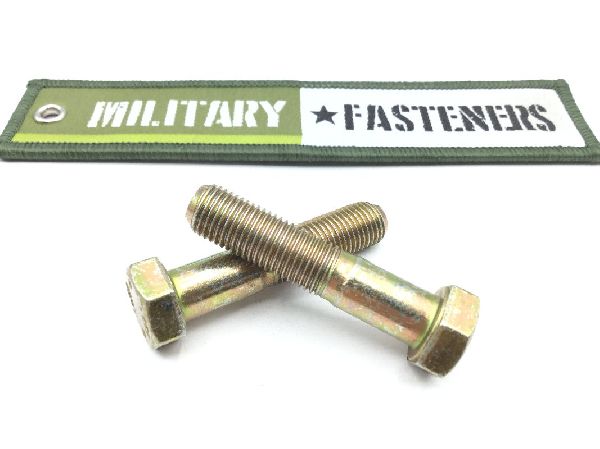

B1821BH038F175N Hexagon Head Cap Screw (3)

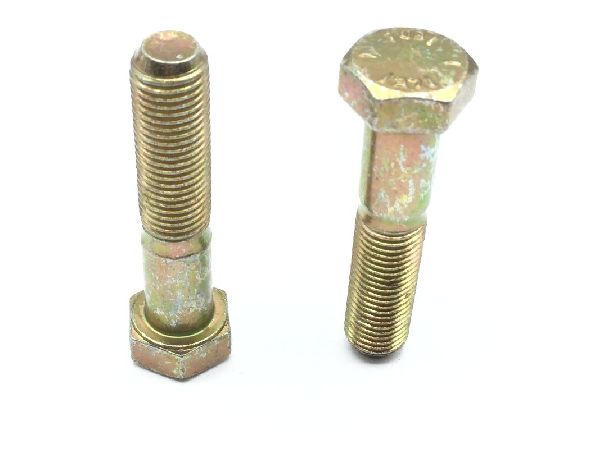

B1821BH038F175N Hexagon Head Cap Screw (4)

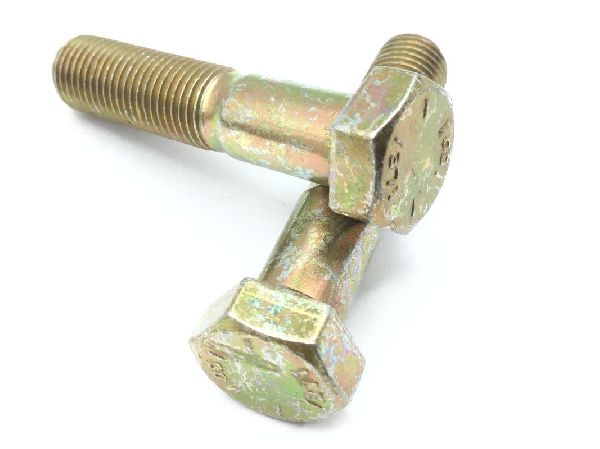

B1821BH038F175N Hexagon Head Cap Screw (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

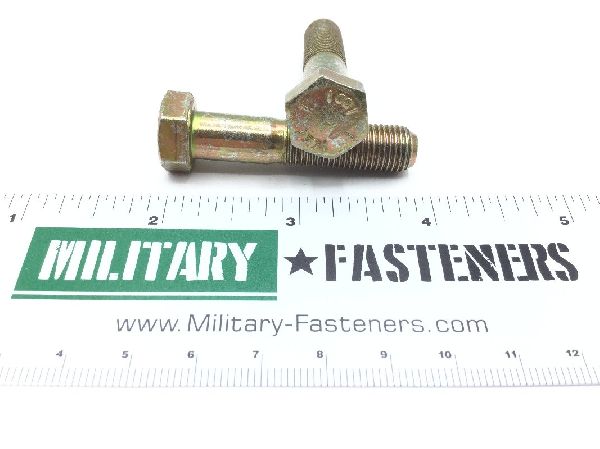

B1821BH038F175N Hexagon Head Cap Screw

ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.04

Units per Pack 50

Price per Pack $52.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $52.00

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Astm b633 type 2 sc 3 assn standard single treatment response

Thread Class

Thread Quantity Per Inch (tpi)

End Application: Mrap-rg-33 armored utility vehicle (auv)
Fastener Length: Between 1.688 inches and 1.75 inches
Hardness Rating: 32.0 rockwell and 38.0 rockwell
Head Height: Between 0.226 inches and 0.243 inches
Material Specification: Sae gr 8 assn standard single material response
Min. Tensile Strength (psi): 150000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 1.00 inches and 1.188 inches
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.551 inches and 0.562 inches
