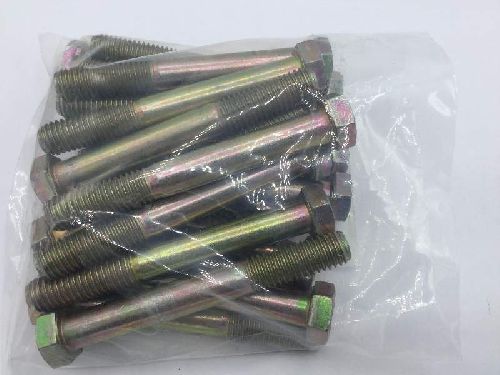

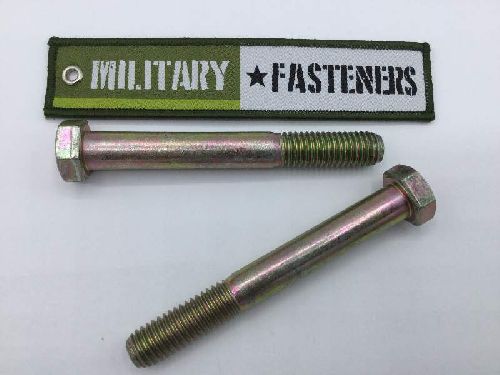

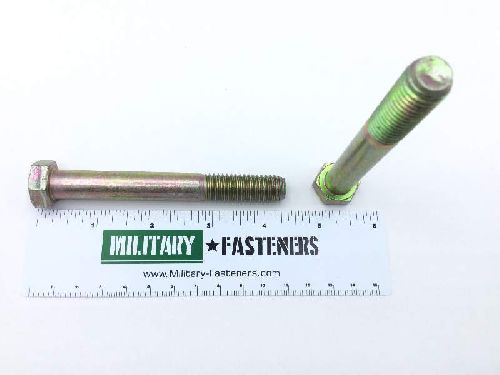

B1821BH050C400N Hexagon Head Cap Screw (2)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

B1821BH050C400N Hexagon Head Cap Screw

ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $2.29

Units per Pack 20

Price per Pack $45.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $45.80

Add item to quote

Material

Steel

Surface Treatment

Astm b633 type 2 sc 3 assn standard single treatment response

Thread Class

Fastener Length: Between 3.906 inches and 4.000 inches
Head Height: Between 0.302 inches and 0.323 inches
Material Specification: Saej429 grade 8 assn standard single material response or astma354 grade bd assn standard single material response
Min. Tensile Strength (psi): 150000 pounds per square inch
Surface Finish: 63.0 microinches threads
Thread Diameter: 0.500 inches
Thread Direction: Right-hand
Thread Length: Between 1.250 inches and 1.442 inches
Thread Qty Per Inch (tpi): 13
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.736 inches and 0.750 inches
