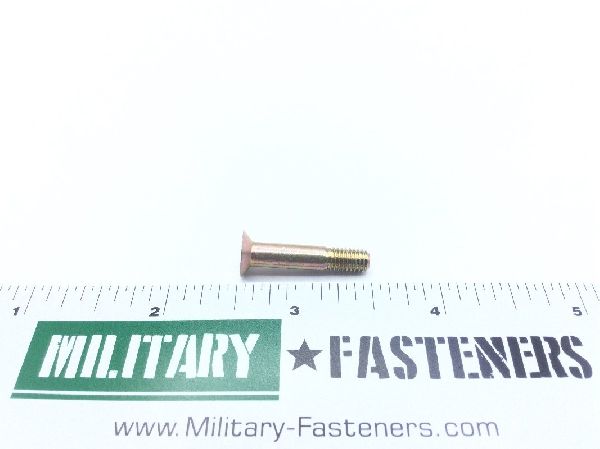

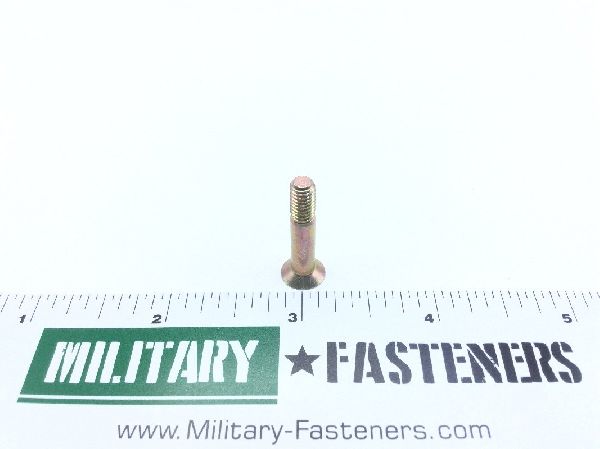

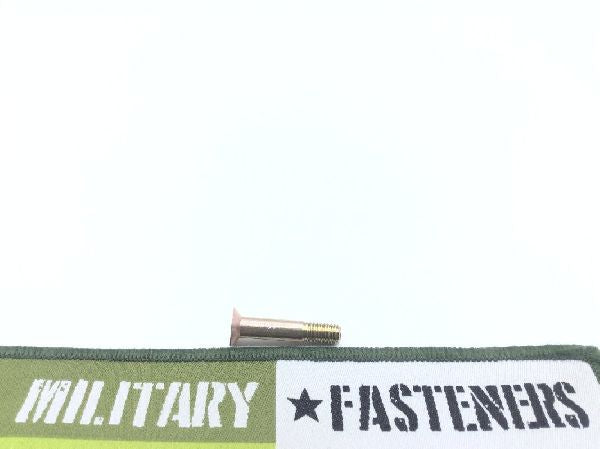

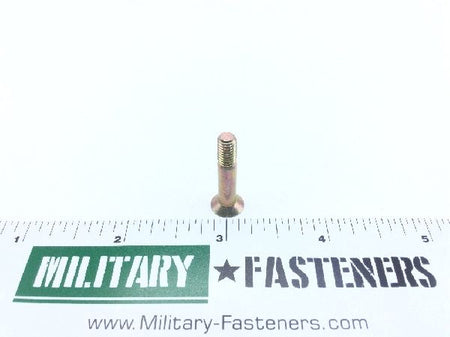

BACB30LH3-10 Close Tolerance Screw

Product Series: BAC
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $3.83

Units per Pack 10

Price per Pack $38.30

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $38.30

Add item to quote

Head Style

Flat countersunk

Material

Iron alloy

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.955 inches and 0.985 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.615 inches and 0.635 inches
Internal Drive Style: Cross recess type 1
Material Specification: Ams5737 assn standard single material response
Surface Finish: 32.0 microinches bearing surface of head
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.320 inches and 0.370 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.337 inches and 0.383 inches
