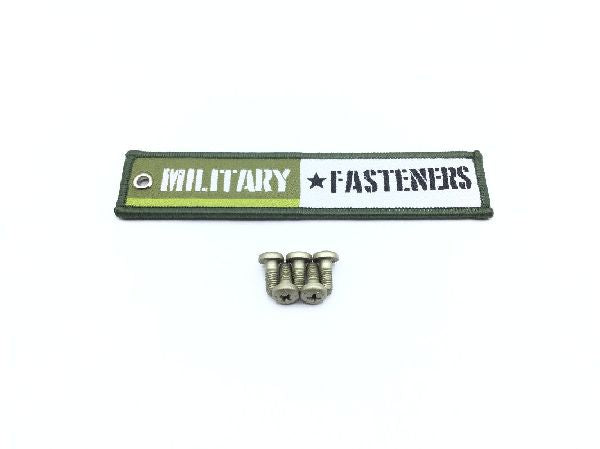

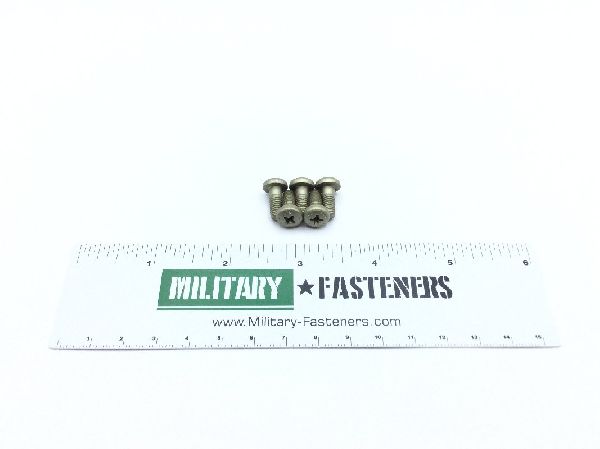

BACB30LK3K2 Close Tolerance Screw

Product Series: BAC
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $6.62

Units per Pack 10

Price per Pack $66.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $66.20

Add item to quote

Head Style

Pan

Material

Stainless Steel

Surface Treatment

Class A assn standard single treatment response type 1 bms10-85

Thread Class

End Application: E-3 aircraft
Fastener Length: Between 0.455 inches and 0.485 inches
Grip Diameter: Between 0.1881 inches and 0.1895 inches
Grip Length: 0.125 inches
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type iii
Material Specification: Ams 5737 assn standard single material response
Part Name Assigned By Controlling Agency: a286 cres close tol short thread cross recess pan head bolt
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.345 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.357 inches and 0.373 inches
