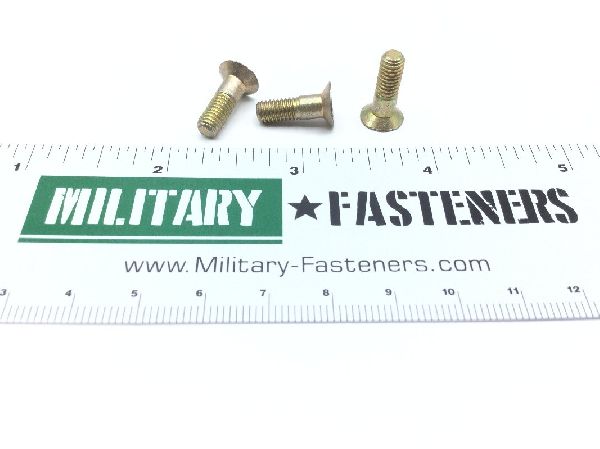

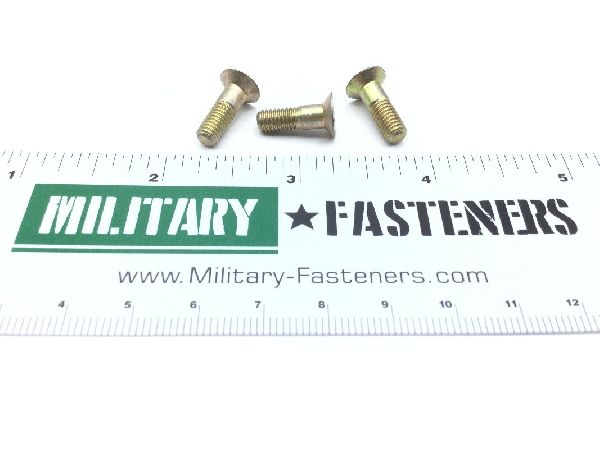

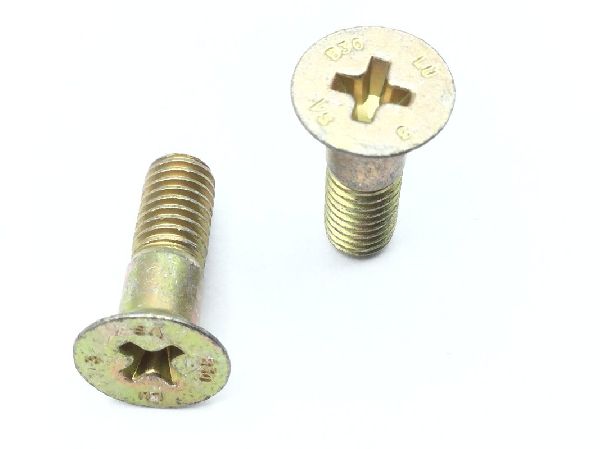

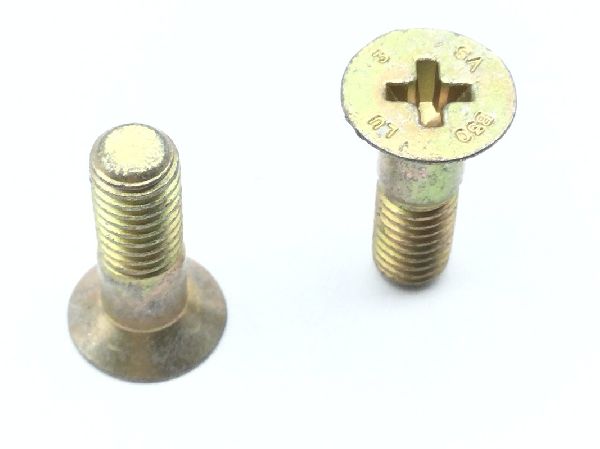

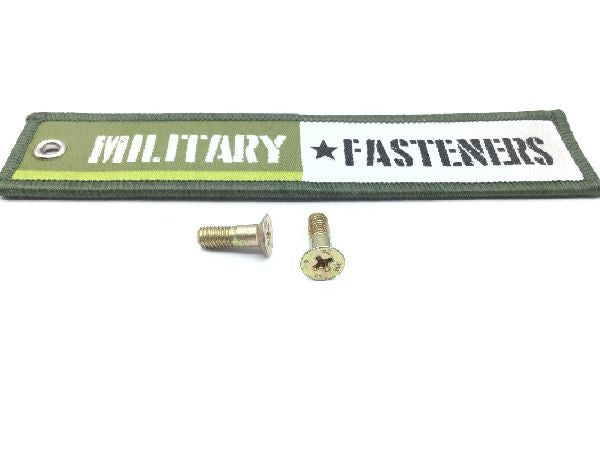

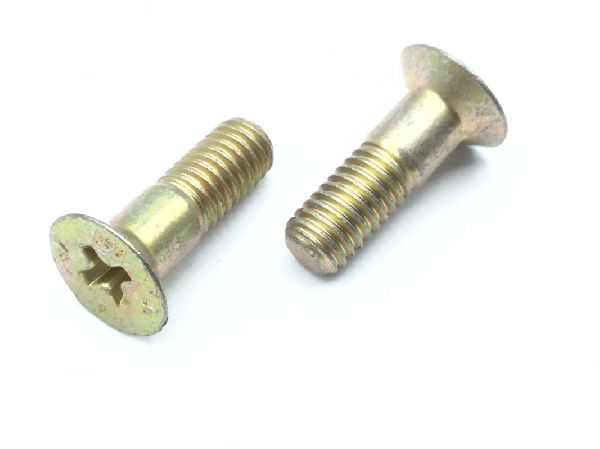

BACB30LU3-4 Machine Bolt

Product Series: BAC
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $1.47

Units per Pack 25

Price per Pack $36.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $36.75

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
End Application: stratolifter c-135;e-3a awacs stratofortress b-52;aircraft ec-18b;joint stars target radar sys;aircraft c-18a tf-33-p-7;aircraft aircraft tf-33 engine;engine
Fastener Length: 0.878 inches
Internal Drive Style: Cross recess type 1
Screw Material: Steel
Screw Surface Treatment: Cadmium and chromate
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.345 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.339 inches and 0.383 inches
