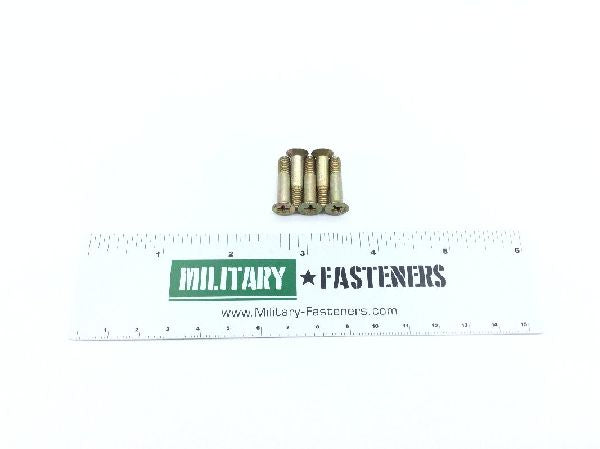

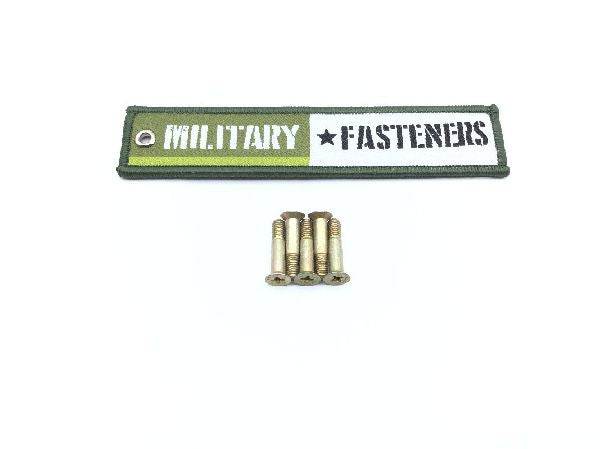

BACB30LU3-9 Machine Bolt

Product Series: BAC
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $2.08

Units per Pack 25

Price per Pack $52.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $52.00

Add item to quote

Head Style

Flat countersunk

Material

Steel comp e4340 or steel comp 8740

Surface Treatment

Cl 3 federal specification single treatment response ty2 qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 100.0 degrees
Fastener Length: Between 0.892 inches and 0.922 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.552 inches and 0.572 inches
Internal Drive Style: Cross recess type 1
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049rjgcams 6322 military specification 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.320 inches and 0.370 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.337 inches and 0.383 inches
