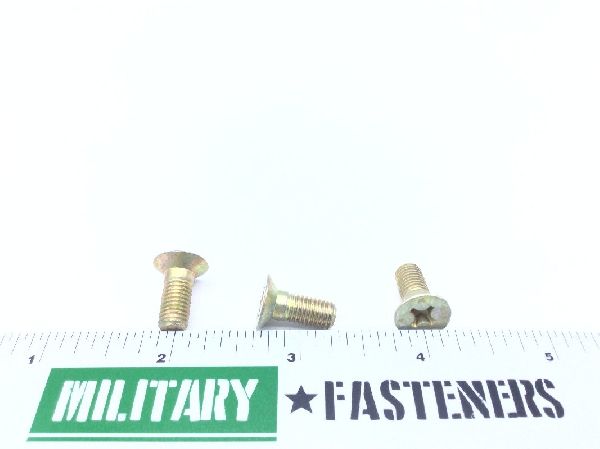

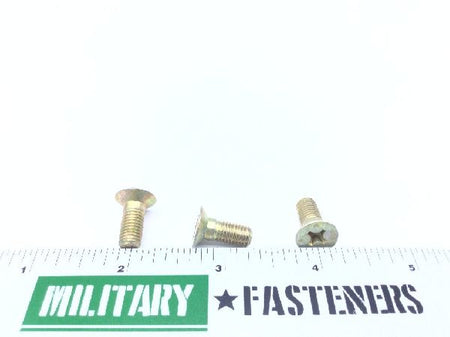

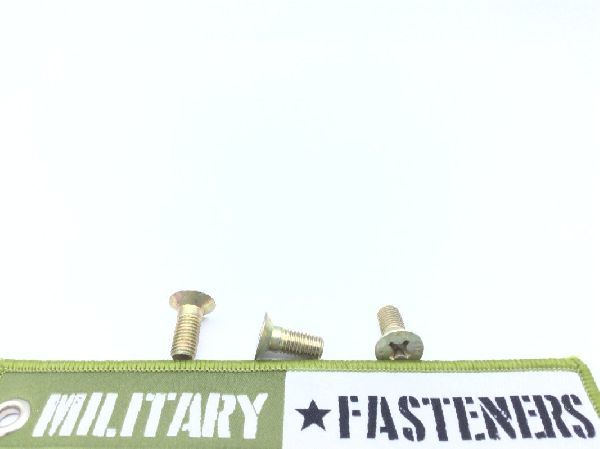

BACB30LU4-3 Close Tolerance Screw

Product Series: BAC
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $4.08

Units per Pack 10

Price per Pack $40.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $40.80

Add item to quote

Head Style

Flat countersunk

Material

Steel comp e4340 or steel comp 4340 or steel comp 8740

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.598 inches and 0.628 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 0.178 inches and 0.198 inches
Internal Drive Style: Cross recess type 1
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.400 inches and 0.450 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.455 inches and 0.510 inches
