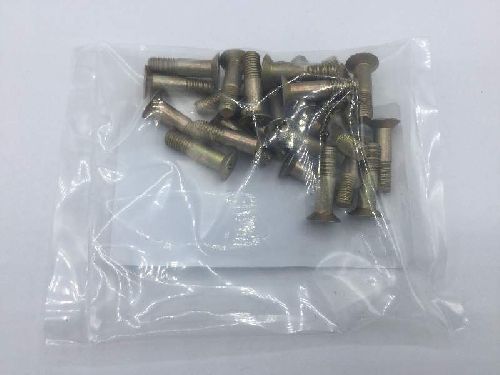

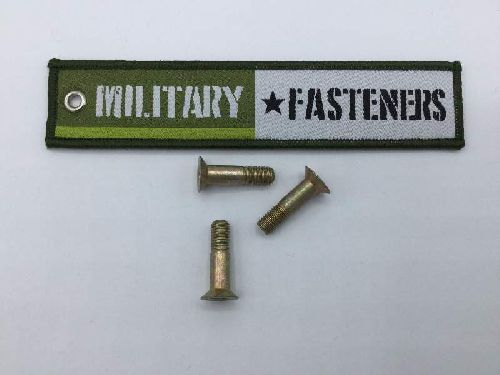

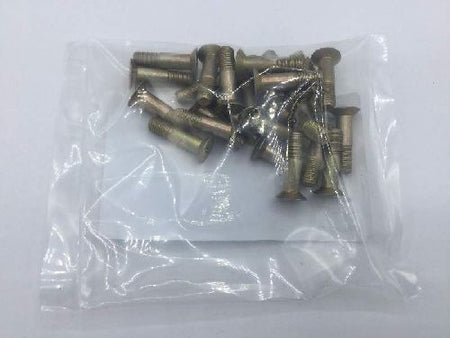

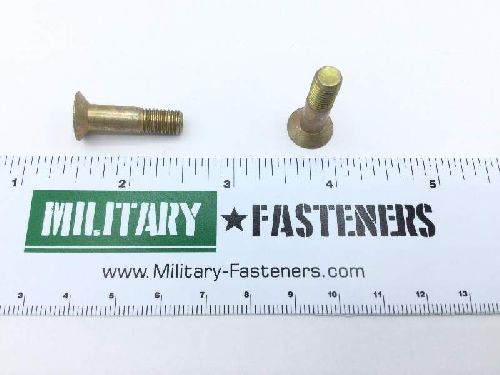

BACB30LU4-9 Close Tolerance Bolt

Product Series: BAC
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $1.94

Units per Pack 25

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Flat countersunk

Material

Steel comp e4340 or steel comp 4340 or steel comp 8740

Surface Treatment

Type 2 class 2 federal specification single treatment response qq-p-416

Thread Class

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.972 inches and 1.002 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 0.552 inches and 0.572 inches
Internal Drive Style: Cross recess type 1
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.400 inches and 0.450 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.455 inches and 0.510 inches
