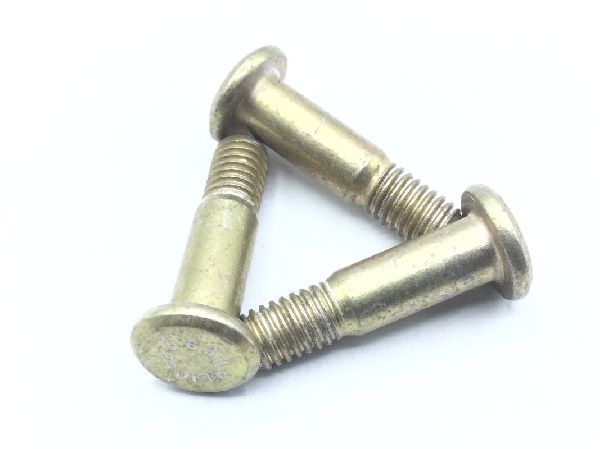

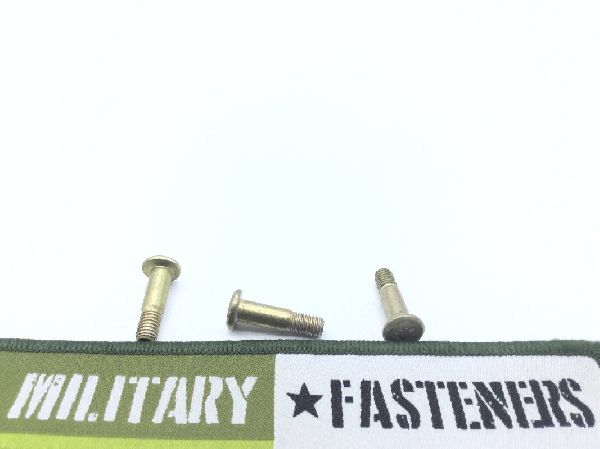

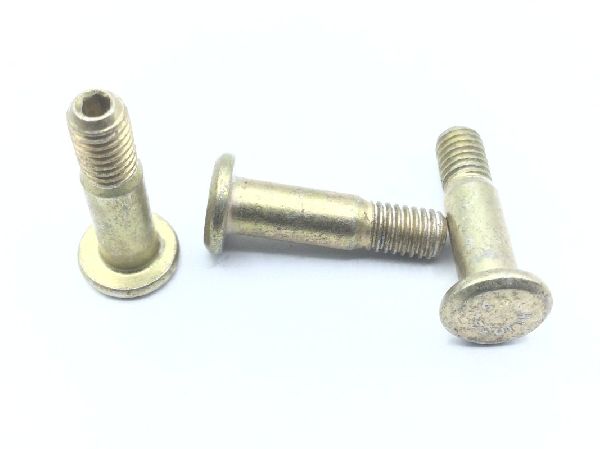

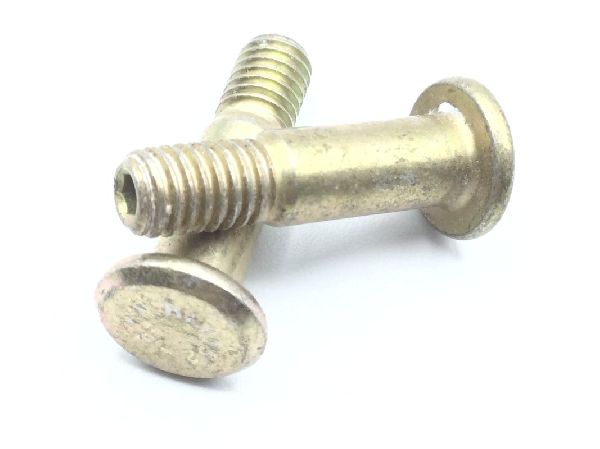

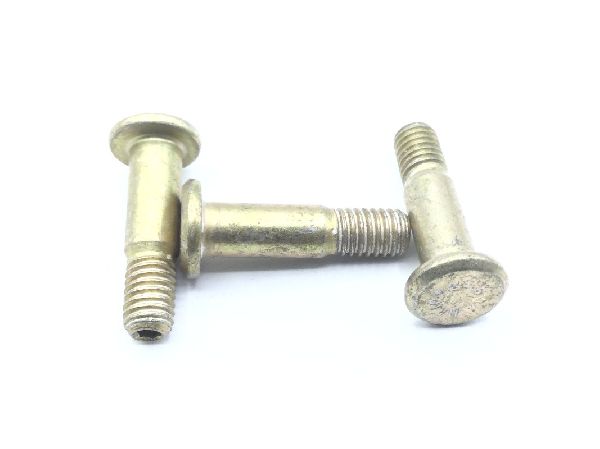

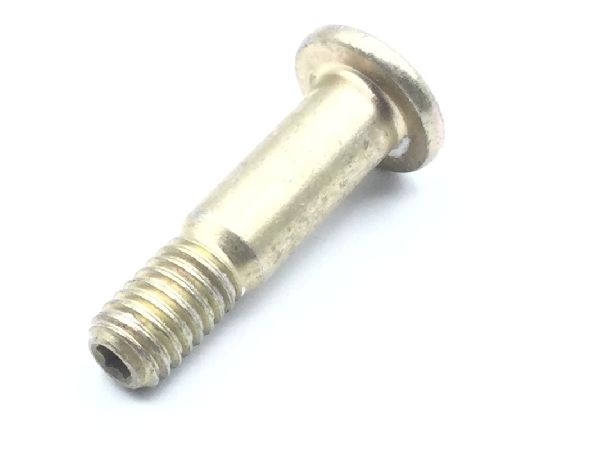

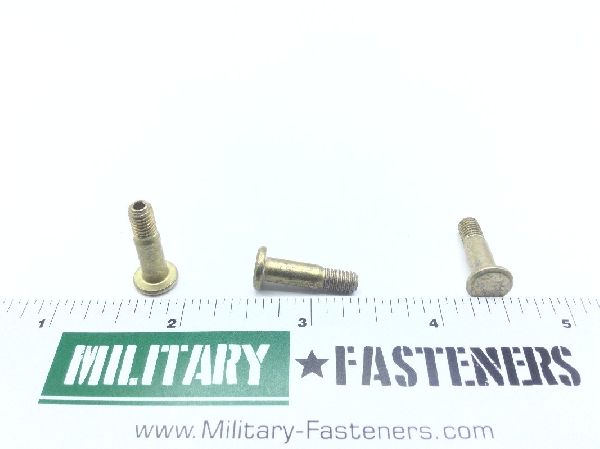

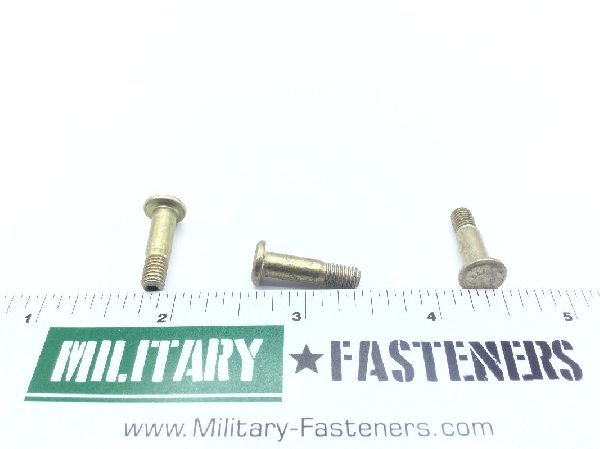

BACB30MC6-7 Pin-Rivet

Product Series: BAC
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $1.39

Units per Pack 20

Price per Pack $27.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $27.80

Add item to quote

Material

Steel comp 4130

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.190 inches

Fastener Length: Between 0.753 inches and 0.773 inches
Grip Length: 0.443 inches
Head Height: Between 0.064 inches and 0.074 inches
Head Major Diameter: Between 0.758 inches and 0.778 inches
Material Specification: Mil-s-6758 military specification single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.202 inches and 0.203 inches
Shank Style: Threaded straight pin-rivet
Thread Direction: Right-hand
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.079 inches and 0.081 inches
Lubrication: Cetyl alcohol
