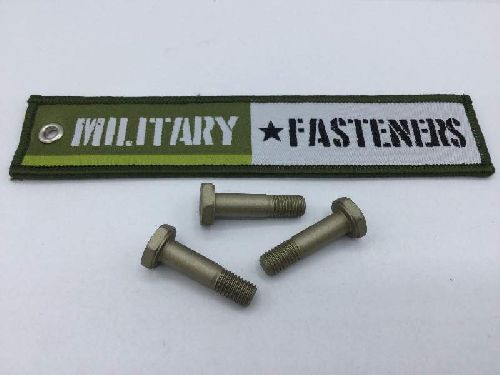

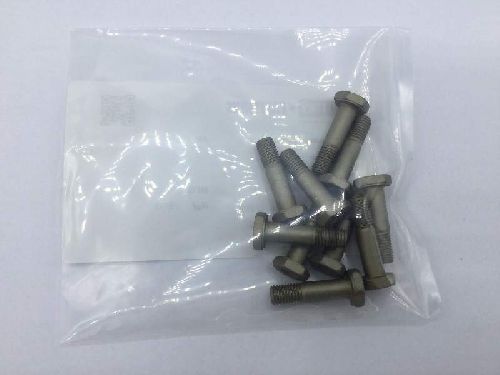

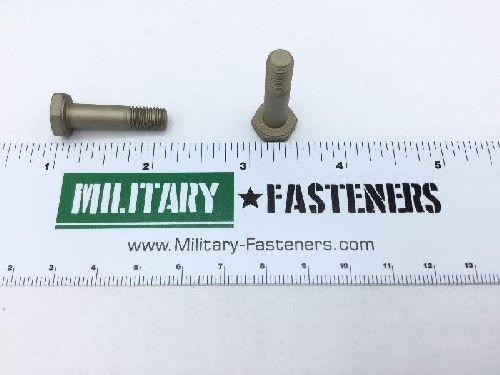

BACB30NM4K9 Machine Bolt

NSN: 5306-01-340-2139
Product Series: BAC
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Titanium alloy uns r56400

Thread Class

Color: Black threads
Fastener Length: Between 0.972 inches and 1.002 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 0.552 inches and 0.572 inches
Head Height: Between 0.125 inches and 0.140 inches
Material Specification: Ams 4928 assn standard single material response or ams 4967 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Surface Finish: 63.0 microinches bearing surface of head32.0 microinches grip32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.425 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
