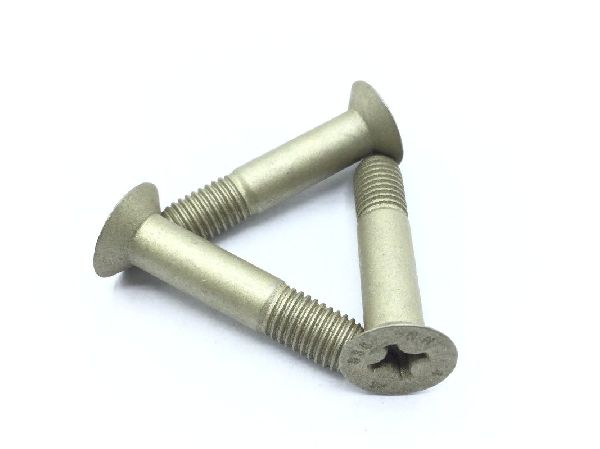

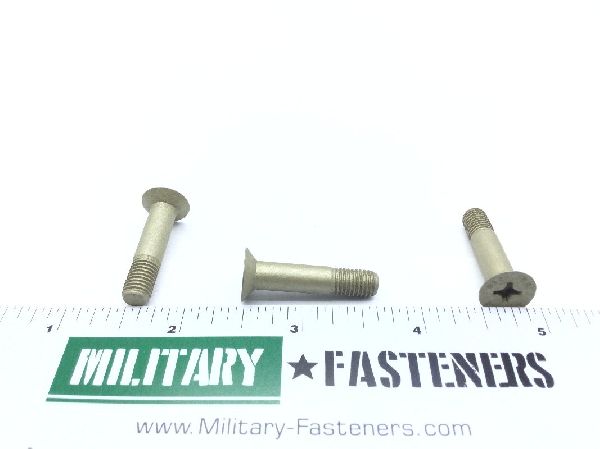

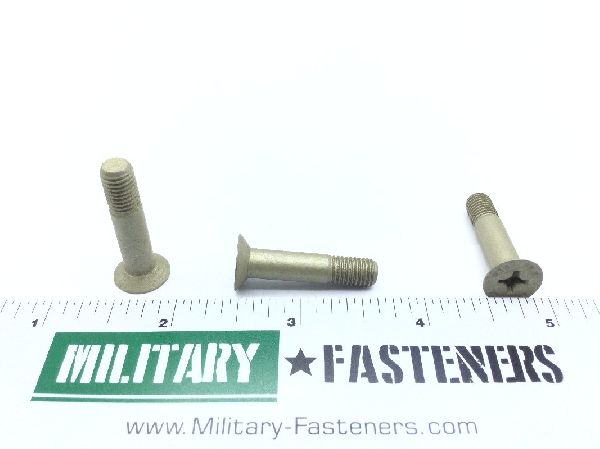

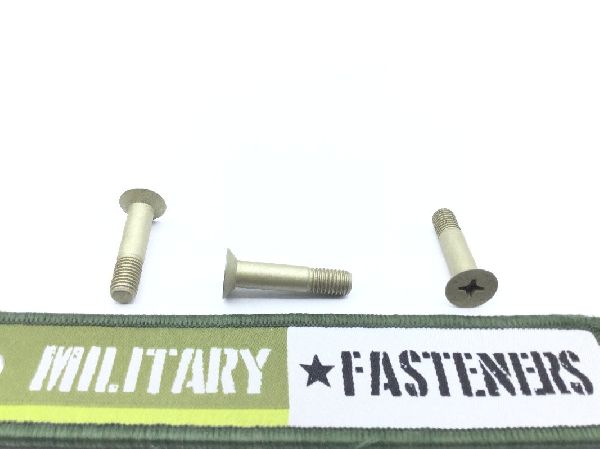

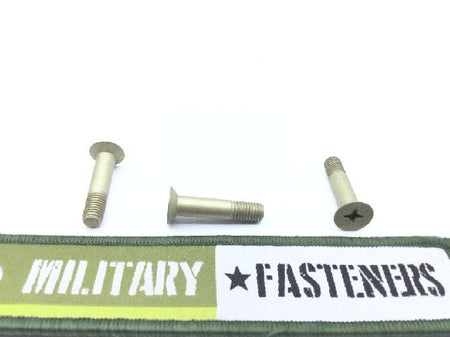

BACB30NN4K12 Machine Bolt

Product Series: BAC
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Titanium alloy uns r56400

Thread Class

Color: Black threads
Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 1.160 inches and 1.190 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 0.740 inches and 0.760 inches
Internal Drive Style: Cross recess type 1
Material Specification: Ams 4928 assn standard single material response or ams 4967 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Surface Finish: 63.0 microinches bearing surface of head32.0 microinches grip32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.425 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.465 inches and 0.510 inches
