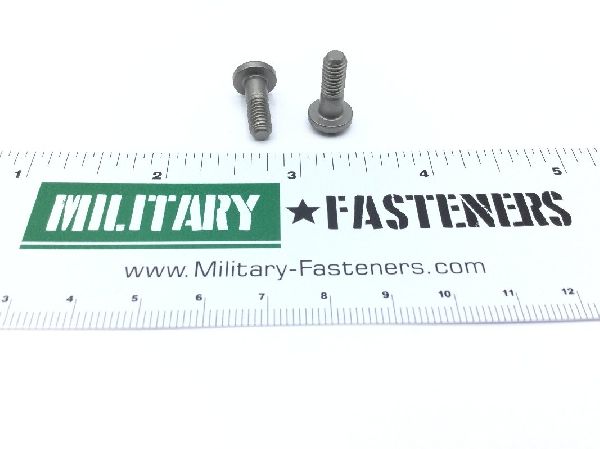

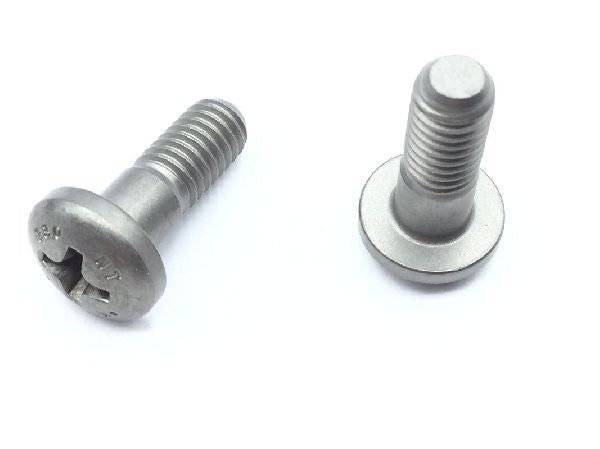

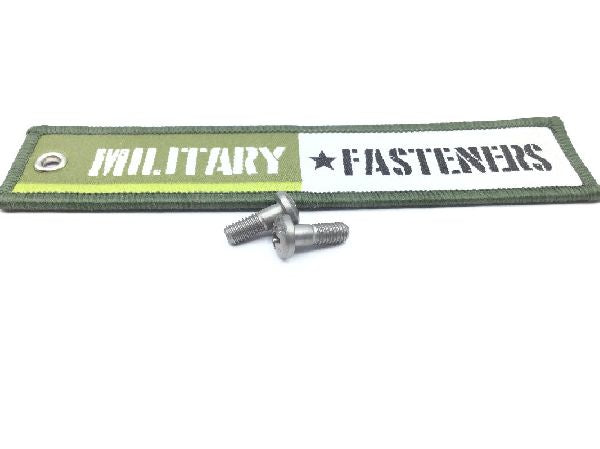

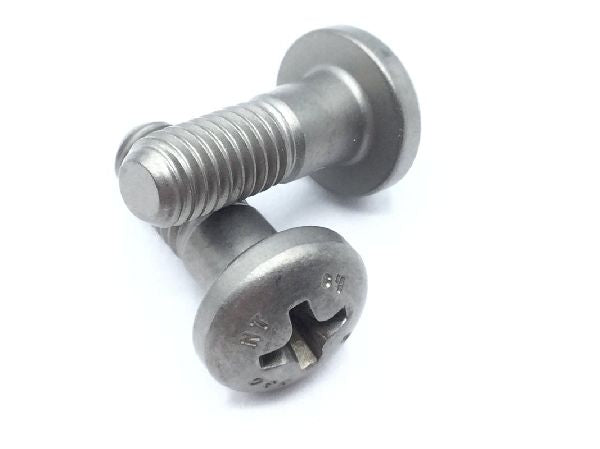

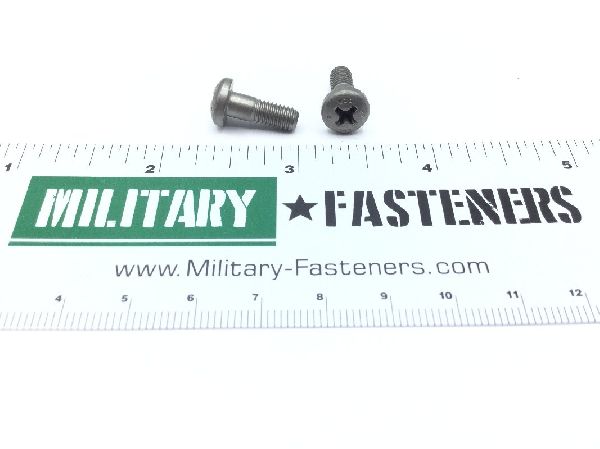

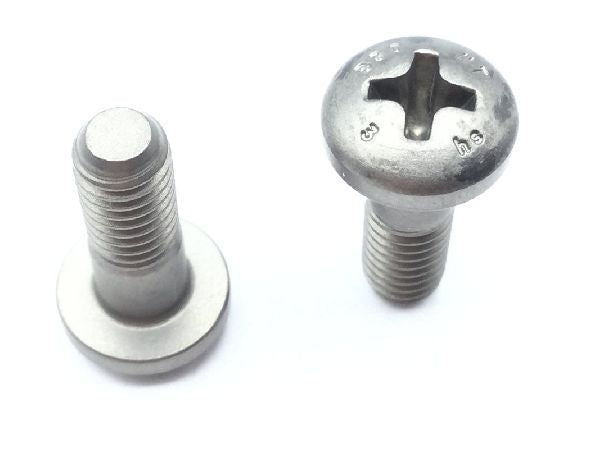

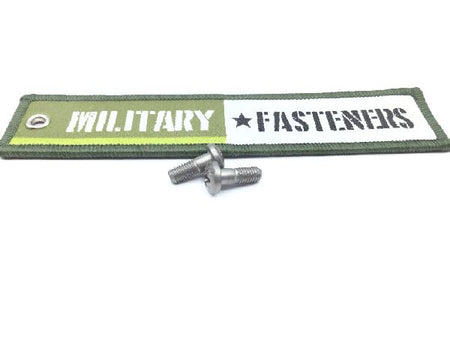

BACB30NT3-3 Close Tolerance Screw

Product Series: BAC
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Pan

Material

Titanium alloy uns r56400

Thread Class

Fastener Length: 0.533 inches
Grip Diameter: Between 0.1881 inches and 0.1895 inches
Grip Length: Between 0.178 inches and 0.198 inches
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Material Specification: Ams 4928 assn standard single material response or ams 4967 assn standard single material response
Part Name Assigned By Controlling Agency: Short thread cross recess pan head bolt
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.19 inches
Thread Direction: Right-hand
Thread Length: 0.345 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.357 inches and 0.373 inches
