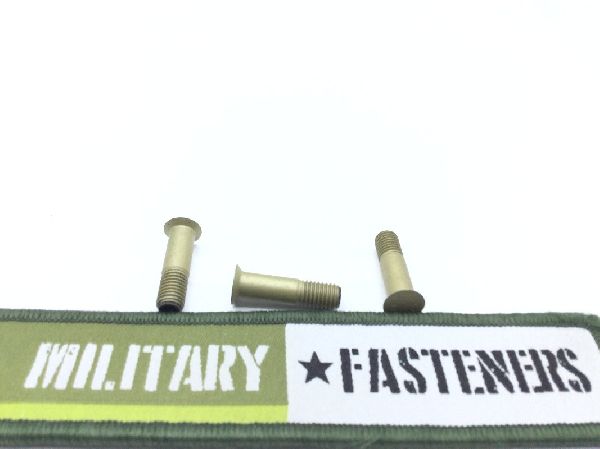

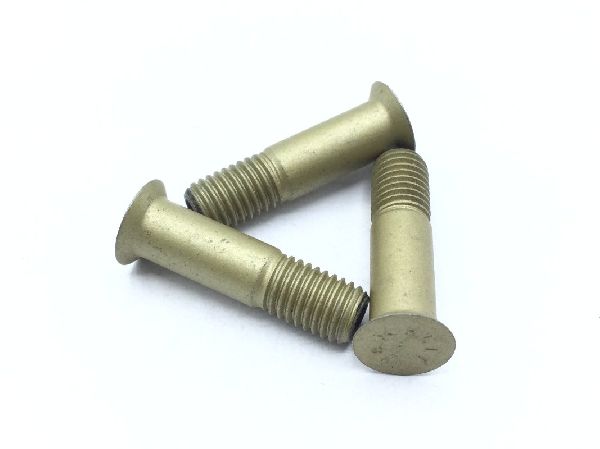

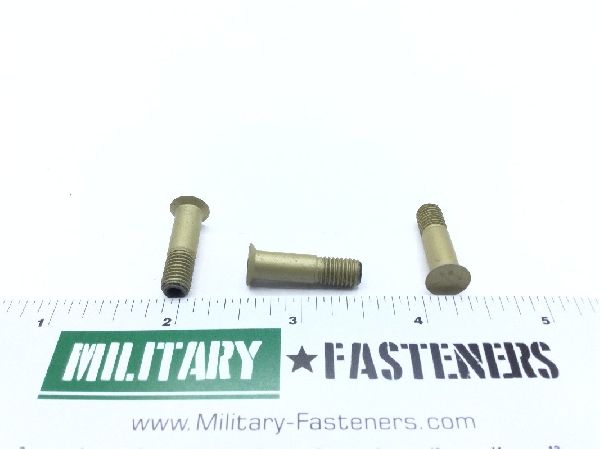

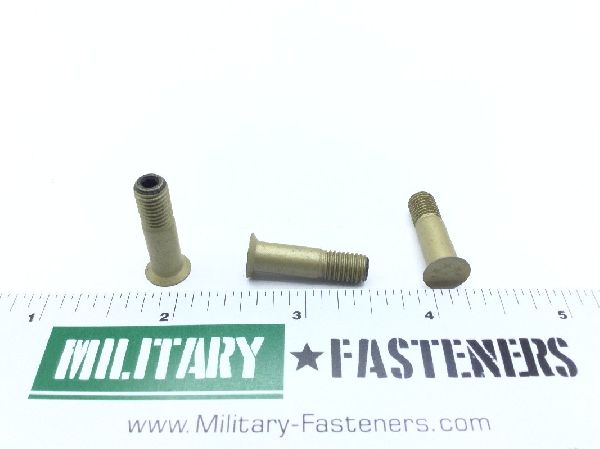

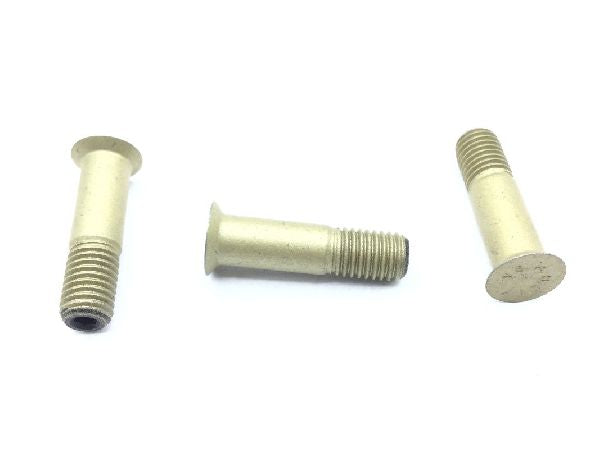

BACB30NW8K9 Shear Bolt

Product Series: BAC
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $13.79

Units per Pack 5

Price per Pack $68.95

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $68.95

Add item to quote

Head Style

Flat countersunk undercut

Material

Titanium

Thread Class

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.552 inches and 0.572 inches
Grip Diameter: Between 0.2481 inches and 0.2495 inches
Grip Length: 0.167 inches
Head Height: 0.061 inches
Min. Tensile Strength (psi): 95000 pounds per square inch
Part Name Assigned By Controlling Agency: shear head bolt
Special Features: Cetyl alcohol lubrication
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.395 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Head Diameter: 0.363 inches
