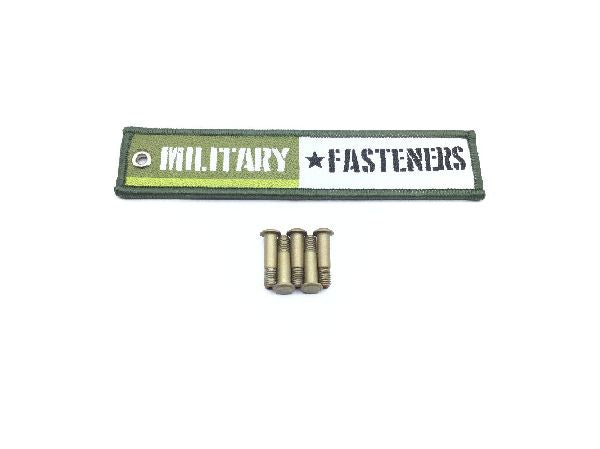

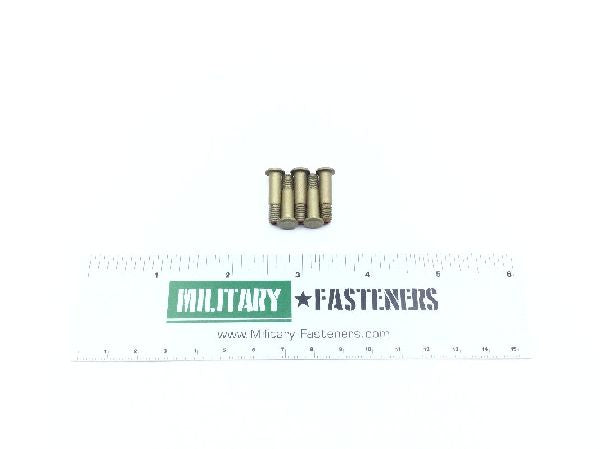

BACB30VT6K8 Machine Bolt

Product Series: BAC
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $3.28

Units per Pack 25

Price per Pack $82.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $82.00

Add item to quote

Head Style

Err-090

Material

Titanium alloy uns r56400

Surface Treatment

Cagec 73197 mfr ref single treatment response hi kote 1

Thread Class

Thread Size

0.190 inches

Fastener Length: Between 0.780 inches and 0.800 inches
Grip Length: Between 0.495 inches and 0.505 inches
Head Height: Between 0.045 inches and 0.055 inches
Head Major Diameter: Between 0.295 inches and 0.315 inches
Material Specification: Ams 4928 assn standard single material response or ams 4967 assn standard single material response
Shank Diameter: Between 0.1885 inches and 0.1895 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 95000 single pounds per square inch
Special Features: Color code orange on thread end
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.0791 inches and 0.0806 inches
Lubrication: hi-shear corp specification 305 cetyl alcohol
