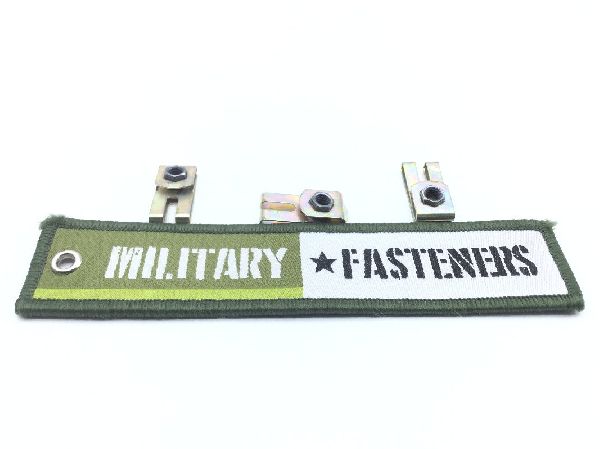

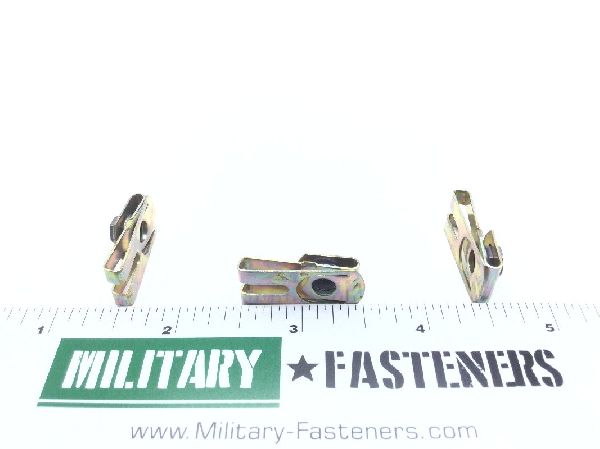

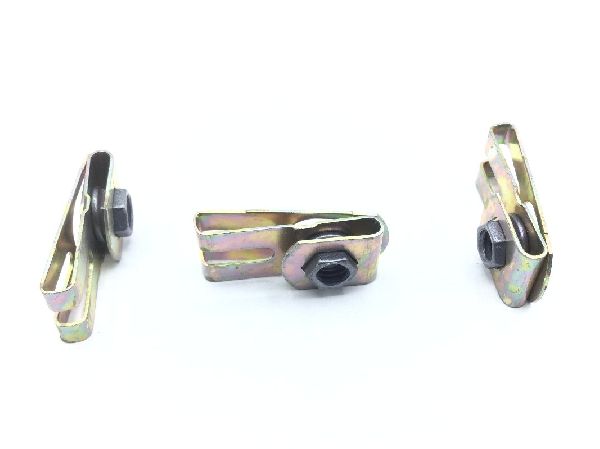

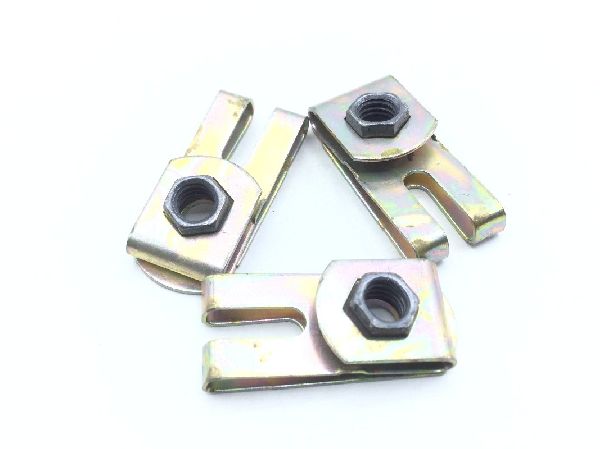

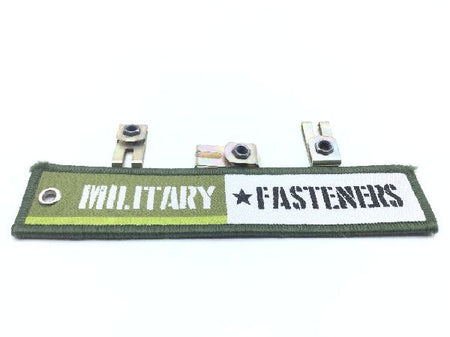

BACN10FX22 Clip-On Nut

Product Series: BAC
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $3.89

Units per Pack 10

Price per Pack $38.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $38.90

Add item to quote

Material

Steel

Surface Treatment

Type 2 federal specification single treatment response qq-p-416

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Distance From Base To Center Of Aperture: Between 0.650 inches and 0.680 inches
Hardness Rating: 46.0 rockwell c
Locking Feature: Prevailing torque all metal design
Nut Style: Floating
Overall Width: 0.447 inches
Panel Thickness: 0.095 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
