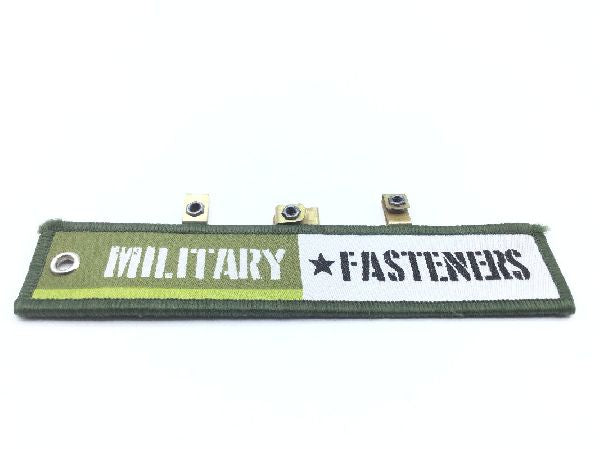

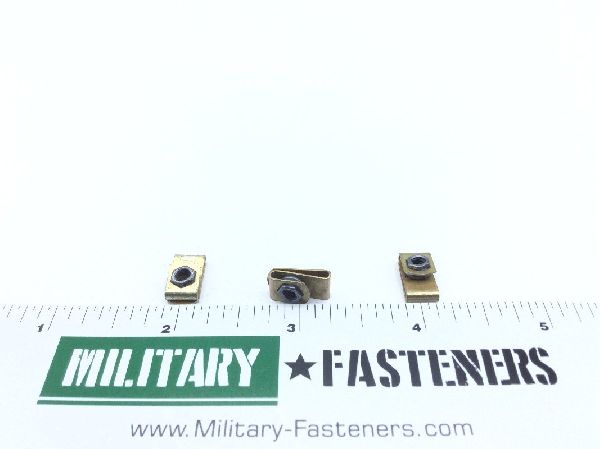

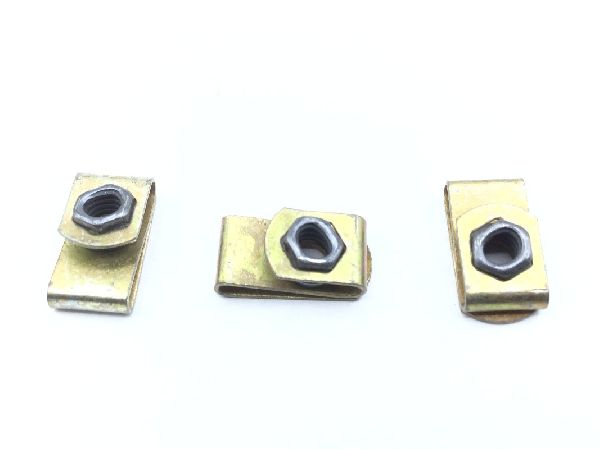

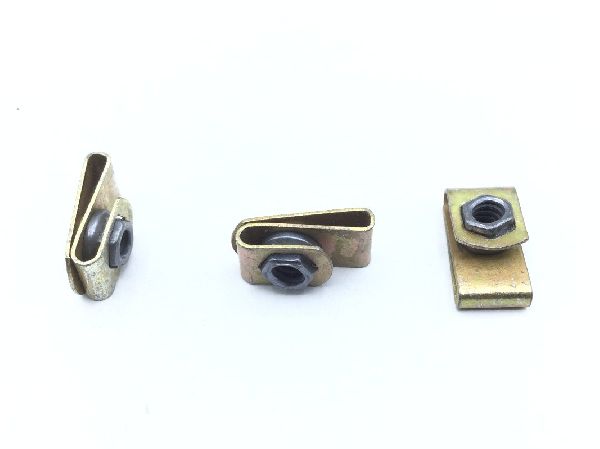

BACN10FX61 Clip-On Nut

Product Series: BAC
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Thread Class

Thread Series

Unc (coarse thread)

Thread Size

0.138 inches

Distance From Base To Center Of Aperture: 0.300 inches
Features: Floating nut
Features Provided: Floating nut
Hardness Rating: Between 62.0 rockwell superficial 30-n and 68.0 rockwell superficial 30-n
Locking Feature: Prevailing torque all metal design
Material Specification: Aisi assn standard all material responses nut
Nut Style: Floating
Overall Width: 0.270 inches
Panel Thickness: 0.090 inches
Special Features: Dry film lubricant
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
