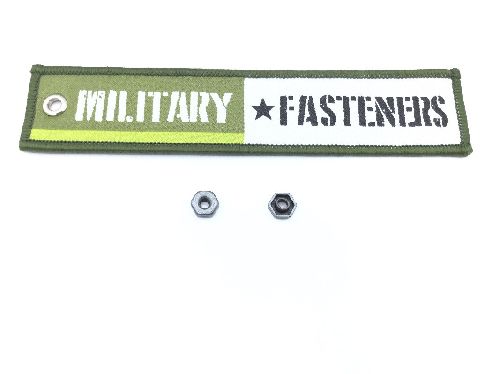

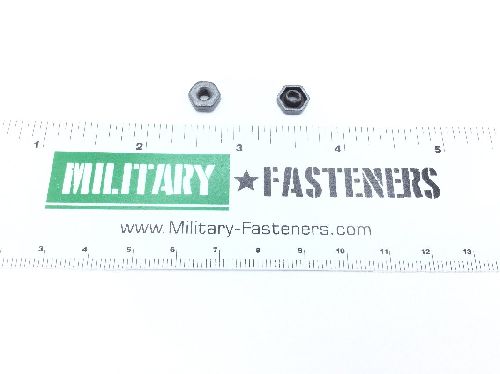

BACN10JC06 Clip-On Nut

Product Series: BAC
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 1 qq-p-416

Thread Class

Thread Series

Unjc

Thread Size

0.138 inches

Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 120.0 degrees nut
Hardness Rating: Between 36.0 rockwell c and 44.0 rockwell c
Locking Feature: Prevailing torque all metal design
Nut Height: 0.141 inches
Nut Style: Hexagon
Specification Data: 81205-bacn10jc manufacturers standard
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.305 inches and 0.313 inches
Lubrication: Dry film lubricant
