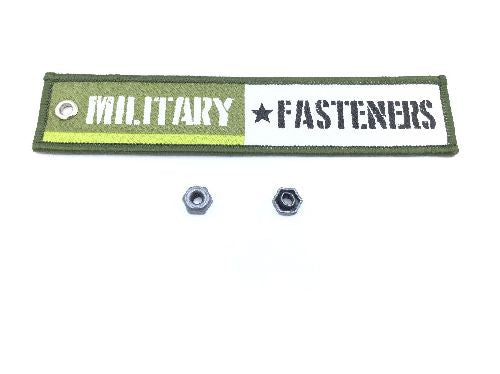

BACN10JC08CD Self-Locking Hexagon Nut (2)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

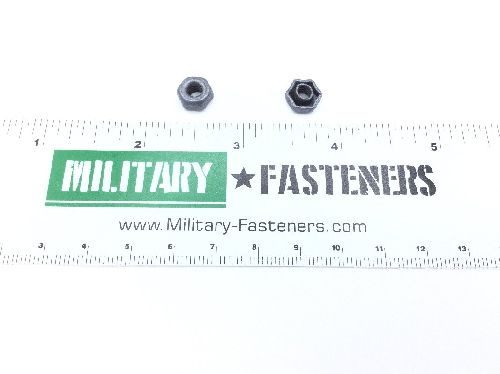

BACN10JC08CD Self-Locking Hexagon Nut

Product Series: BAC
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Iron alloy 660

Surface Treatment

cl2 federal specification single treatment response qq-p-416

Thread Class

3b

Thread Series

Unjc

Thread Size

0.164 inches

Bearing Surface Type: Chamfered
Hardness Rating: Between 36.0 rockwell c and 44.0 rockwell c
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5525 assn standard single material response or ams 5737 assn standard single material response
Nut Height: 0.190 inches
Nut Style: Hexagon
Tempurature Rating: Between 450.0 degrees fahrenheit and 900.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.336 inches and 0.345 inches
