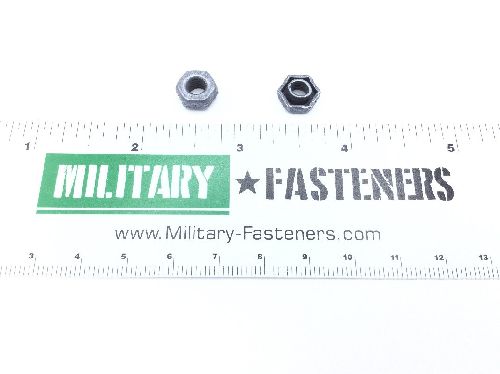

BACN10JC3CD Self-Locking Hexagon Nut (2)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

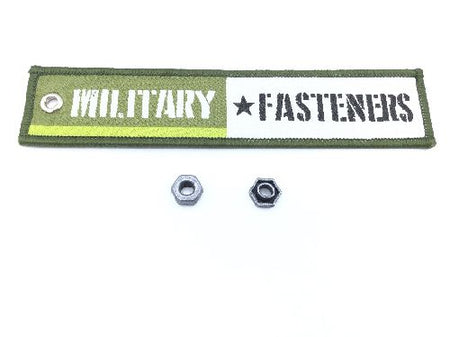

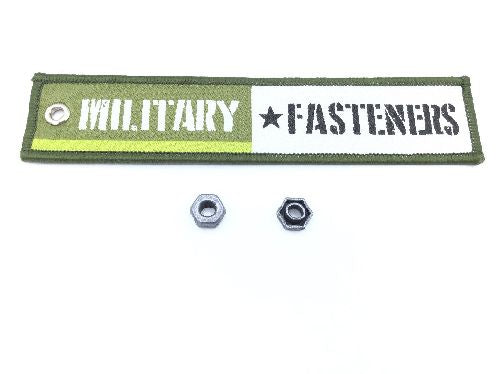

BACN10JC3CD Self-Locking Hexagon Nut

Product Series: BAC
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $4.00

Units per Pack 10

Price per Pack $40.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $40.00

Add item to quote

Material

Iron alloy 660

Surface Treatment

Cl 2 federal specification single treatment response ty ii qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Bearing Surface Type: Flat
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5525 assn standard single material response or ams 5737 assn standard single material response
Nut Height: 0.221 inches
Nut Style: Hexagon
Specification Data: 81205-bacn10jc manufacturers standard
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Width Across Flats: Between 0.367 inches and 0.376 inches
Lubrication: Dry film lubricant
