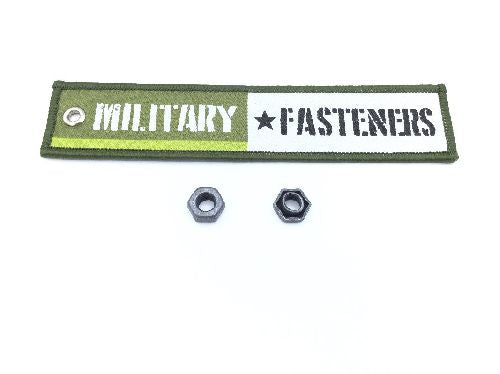

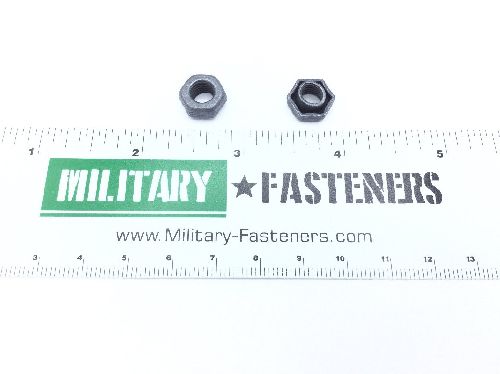

BACN10JC4CD Self-Locking Hexagon Nut (2)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

BACN10JC4CD Self-Locking Hexagon Nut

Product Series: BAC
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Iron alloy 660

Surface Treatment

Class 2 federal specification all treatment responses qq-p-416

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.250 inches

Bearing Surface Type: Flat
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5525 assn standard single material response or ams 5737 assn standard single material response
Nut Height: 0.221 inches
Nut Style: Hexagon
Tempurature Rating: 450 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Width Across Flats: Between 0.430 inches and 0.439 inches
Lubrication: Dry film lubricant
