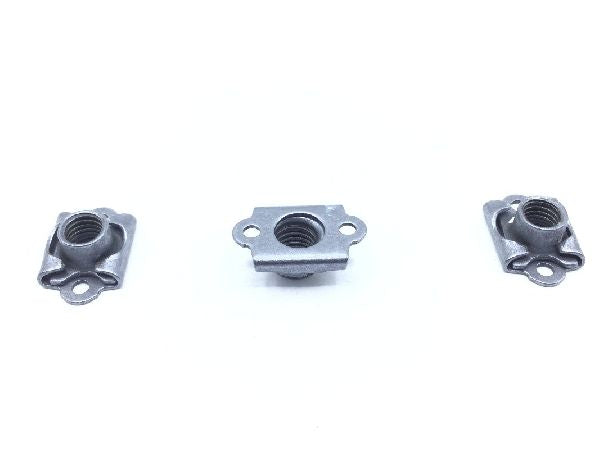

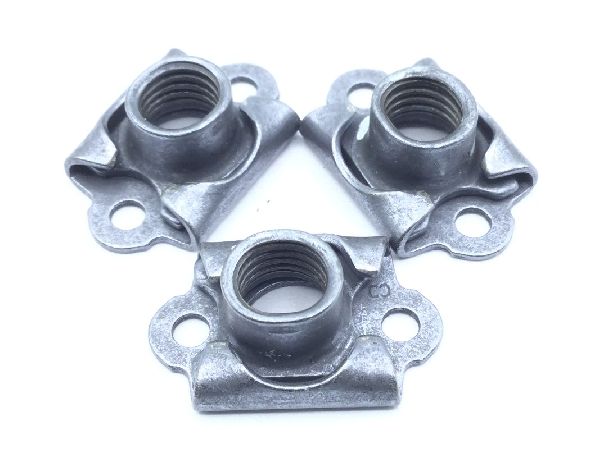

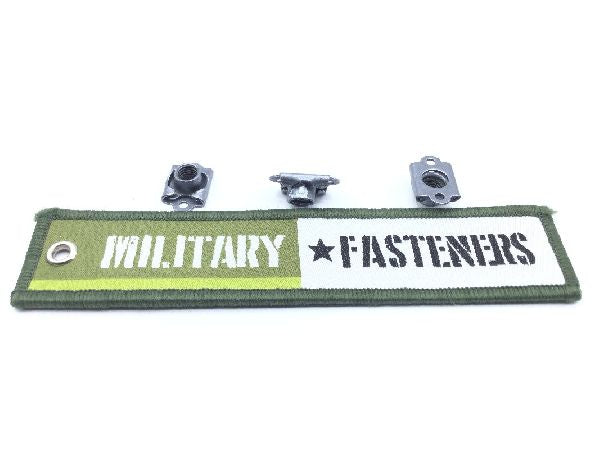

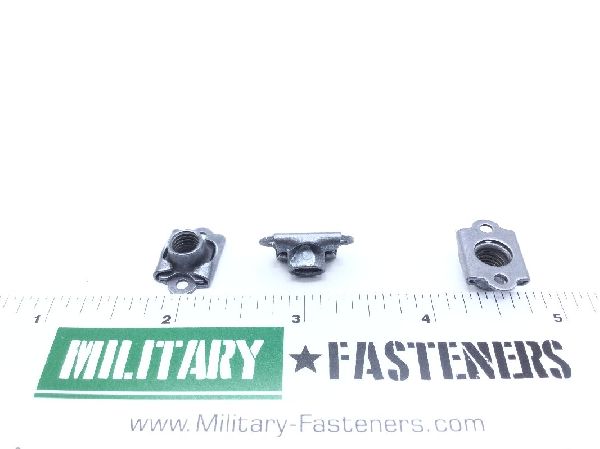

BACN10JN4CD Clip-On Nut

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Center To Center Distance Between Mounting Holes Along Length: Between 0.560 inches and 0.564 inches
Counterbore Diameter: 0.312 inches first end
Distance From Aperture Center To Mounting Hole Center: Between 0.276 inches and 0.286 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5525 assn standard single material response
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.096 inches and 0.100 inches
Nut Counterbore Depth: 0.060 inches first end
Nut Height: 0.562 inches
Nut Length: 0.801 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.055 inches
Plate Width: 0.500 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Lubrication: Dry film lubricant
