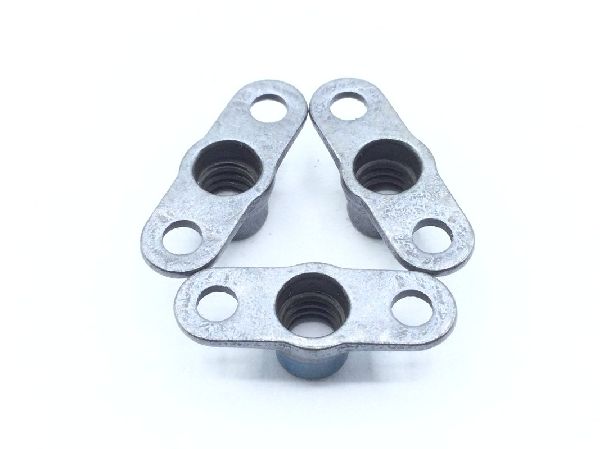

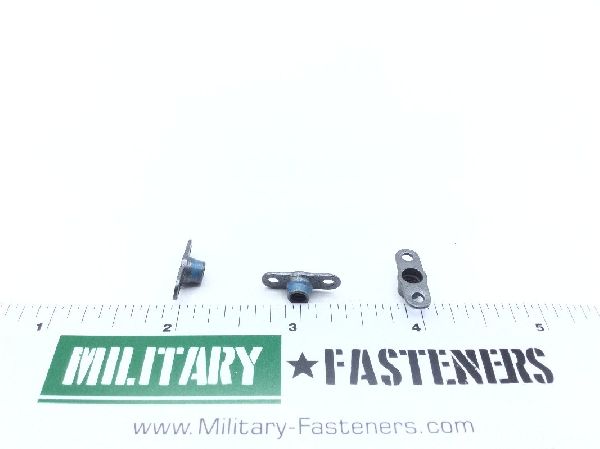

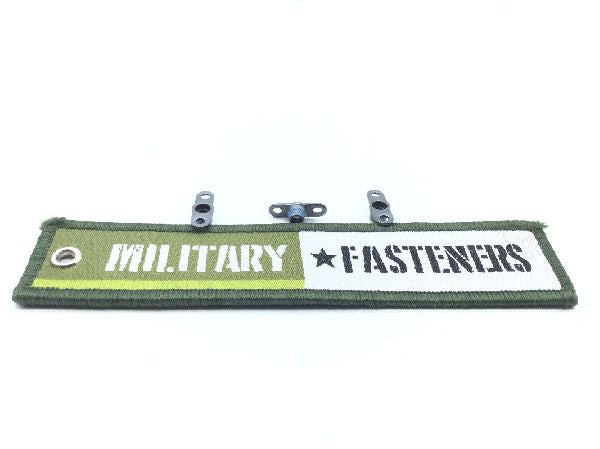

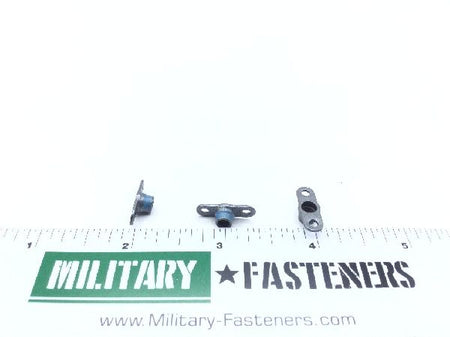

BACN10JP08ACD Clip-On Nut

Product Series: BAC
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $4.08

Units per Pack 10

Price per Pack $40.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $40.80

Add item to quote

Material

Iron alloy 660

Surface Treatment

Cl 2 federal specification single treatment response qq-p-416

Thread Class

Thread Series

Unjc

Thread Size

0.1640 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.466 inches and 0.470 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.229 inches and 0.239 inches
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5525 assn standard single material response
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: 0.250 inches
Nut Length: 0.692 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.047 inches
Plate Width: 0.297 inches
Specification Data: 81205-bacn10jp manufacturers standard
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
