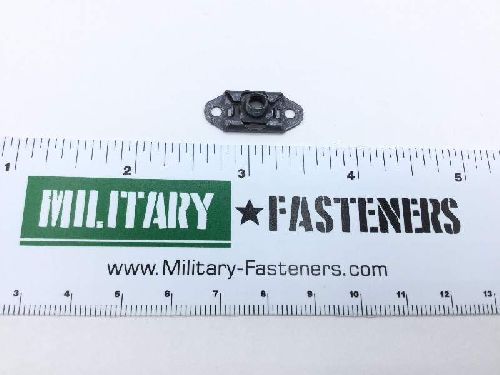

BACN10JR08CFD Self-Locking Nutplate

Product Series: BAC
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $2.85

Units per Pack 20

Price per Pack $57.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $57.00

Add item to quote

Material

Stainless Steel

Surface Treatment

cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unjc

Thread Size

0.164 inches

End Application: E-3 aircraft
Locking Feature: Prevailing torque all metal design
Nut Height: 0.250 inches
Nut Length: 0.948 inches
Nut Style: Plate (floating)
Part Name Assigned By Controlling Agency: 450 f floating plain two lug self-locking plate nut
Plate Thickness: 0.047 inches
Plate Width: 0.297 inches
Special Features: 450 f plain rivet holes solid film lubricant cadmium a286 cres
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
